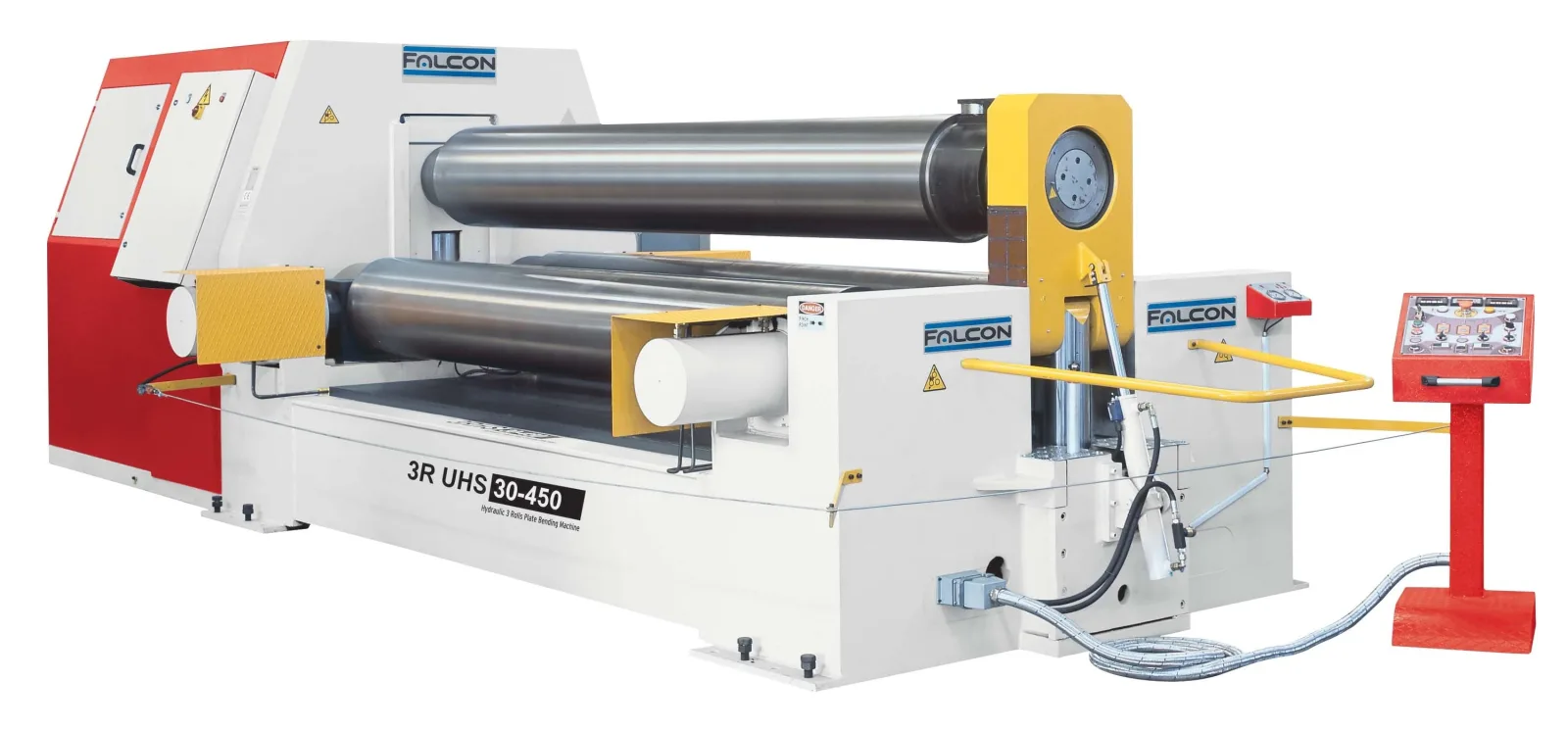

FALCON 3RUHS Plate Rolls Series
3 Roller Pyramid Style Hydraulic Plate Rolls for 16mm & larger plate
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.
Heavy duty 3 Roller Pyramid Style Hydraulic Plate Rolls
- for 16mm & larger plate:
- Strong design steel construction
- Induction hardened rolls
- Remote control panel
- Digital readout
- Cone bending adjustment
- Quality components
Optional:
- Material feed table
- Changeable top roll for smaller rolls
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | Length (mm) | Max thickness without pre-bending (mm) | Pre bending capacity (mm) | Central roll | Side roll | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 3R UHS 25-450 | 2550 | 60 | 45 | 450 | 420 | 52 | 23,200 |
| 3R UHS 25-500 | 2550 | 70 | 55 | 500 | 460 | 73.5 | 30,500 |
| 3R UHS 25-550 | 2550 | 75 | 60 | 550 | 500 | 73.5 | 42,500 |
| 3R UHS 25-580 | 2550 | 80 | 65 | 580 | 480 | 74 | 58,000 |
| 3R UHS 25-620 | 2550 | 95 | 75 | 620 | 560 | 169 | 63,000 |
| 3R UHS 25-680 | 2550 | 105 | 85 | 680 | 600 | 180 | 73,000 |
| 3R UHS 30-450 | 3100 | 55 | 40 | 450 | 420 | 52 | 25,000 |
| 3R UHS 30-500 | 3100 | 60 | 45 | 500 | 460 | 73.5 | 33,000 |
| 3R UHS 30-550 | 3100 | 65 | 50 | 550 | 500 | 73.5 | 45,000 |
| 3R UHS 30-580 | 3100 | 70 | 60 | 580 | 480 | 74 | 60,000 |
| 3R UHS 30-620 | 3100 | 80 | 65 | 620 | 560 | 169 | 65,000 |
| 3R UHS 30-680 | 3100 | 90 | 75 | 680 | 600 | 180 | 73,000 |
| 3R UHS 40-450 | 4100 | 38 | 25 | 450 | 420 | 52 | 26,800 |
| 3R UHS 40-500 | 4100 | 45 | 30 | 500 | 460 | 73.5 | 35,500 |
| 3R UHS 40-550 | 4100 | 50 | 35 | 550 | 500 | 73.5 | 47,600 |
| 3R UHS 40-580 | 4100 | 55 | 45 | 580 | 480 | 74 | 65,000 |
| 3R UHS 40-620 | 4100 | 70 | 55 | 620 | 560 | 169 | 69,000 |
| 3R UHS 40-680 | 4100 | 80 | 65 | 680 | 600 | 180 | 75,000 |
