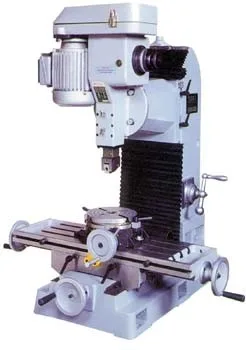

Eastar TS-125K Simple Slotting Machine
125mm stroke For slotting heads search slotting in the search bar at top
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Stroke
125mm
Speed
30, 47, 69, 98, 140 strokes per minute
Throat
360mm
Head travel
300mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
125mm stroke For slotting heads search slotting in the search bar at top
Made in Taiwan
- Belt drive (6 speed steps)
- Head can swivel +/- 30 degrees
- Built in lubrication pump
- Optional:
- Rotary table
- Slotting bars
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Stroke
125mm
Speed
30, 47, 69, 98, 140 strokes per minute
Throat
360mm
Head travel
300mm
Ram - table
220mm min - 520mm max
Table size
815 x 240mm
Longitudinal travel
400mm
Cross travel
300mm
Motor
750w
Weight
500 kg
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
