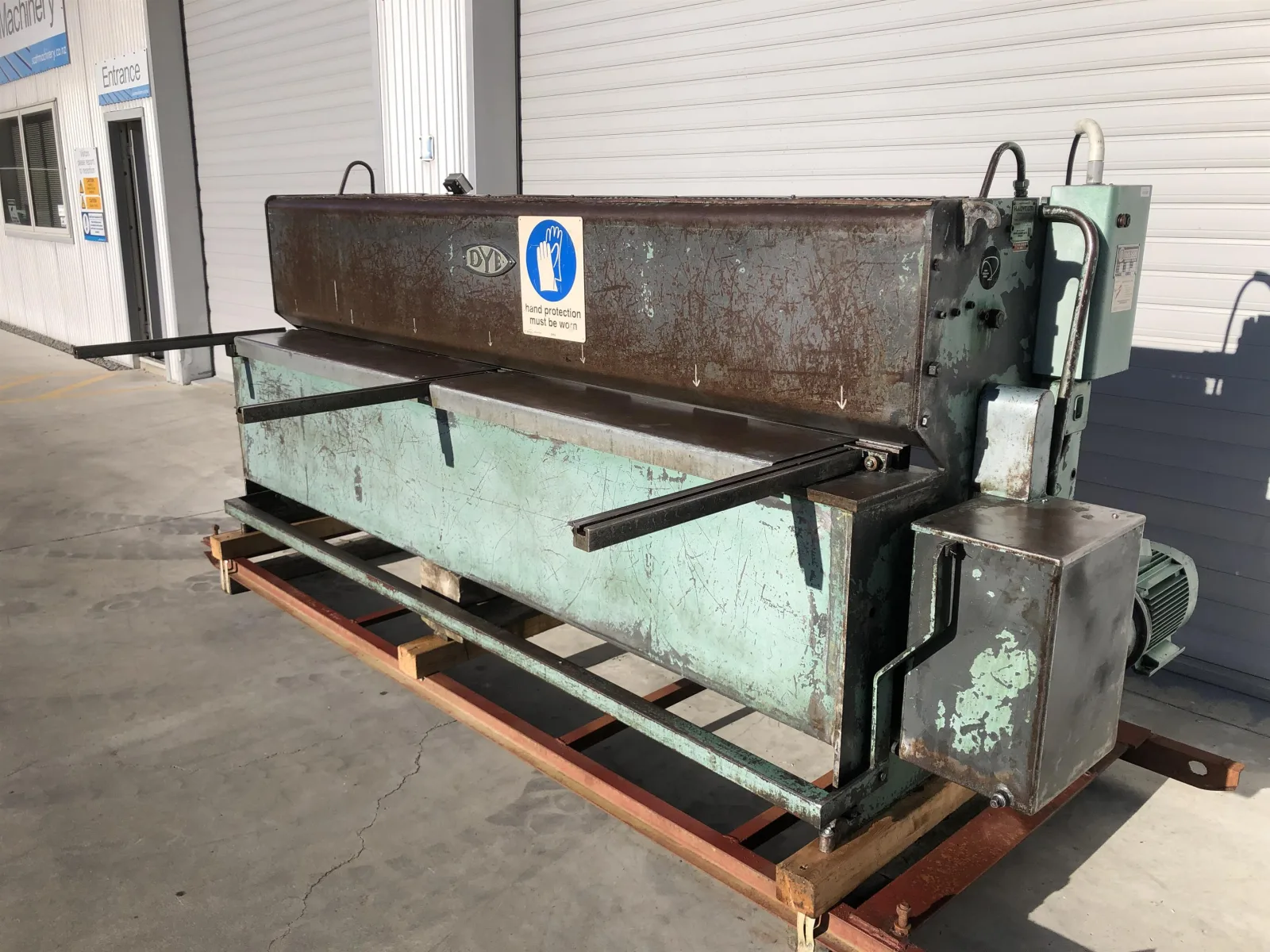

Dye 2500mm x 2.0mm Used Hydraulic Guillotine

Renowned New Zealand made

$5,799.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity (max, mild steel) 2500mm x 2.0mm
Backgauge travel 0 - 680mm
Main motor 5 hp
Power supply 415 volts / 50 hz / 3 phase
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

New Zealand made hydraulic guillotine with manual backgauge and digital backgauge position display. Good condition, runs well. Note: Steel forklift base not included.

Features

  • Three phase
  • New Zealand made
  • Hydraulic operation
  • Swing beam
  • Manual backgauge
  • Backgauge position, digital readout
  • Start/Delta motor start
  • Front sheet supports

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Dye 2500mm x 2.0mm in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity (max, mild steel) 2500mm x 2.0mm
Backgauge travel 0 - 680mm
Main motor 5 hp
Power supply 415 volts / 50 hz / 3 phase
Freighting details (L x D x H) 3100mm x 1500mm x 1600mm
Weight (approx) 2000 kg
