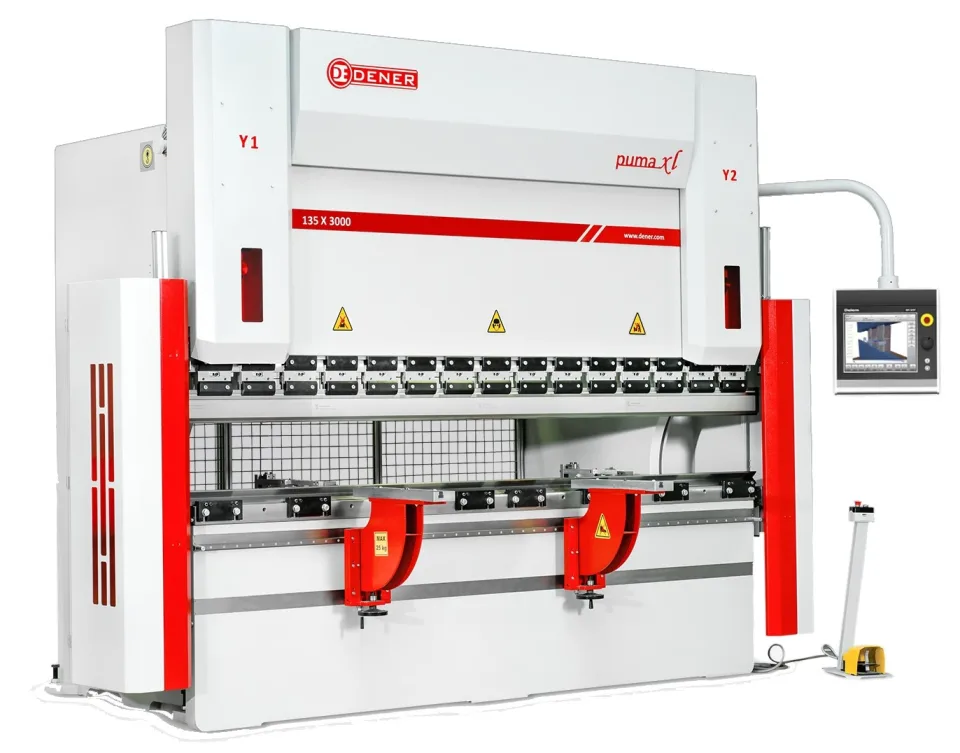

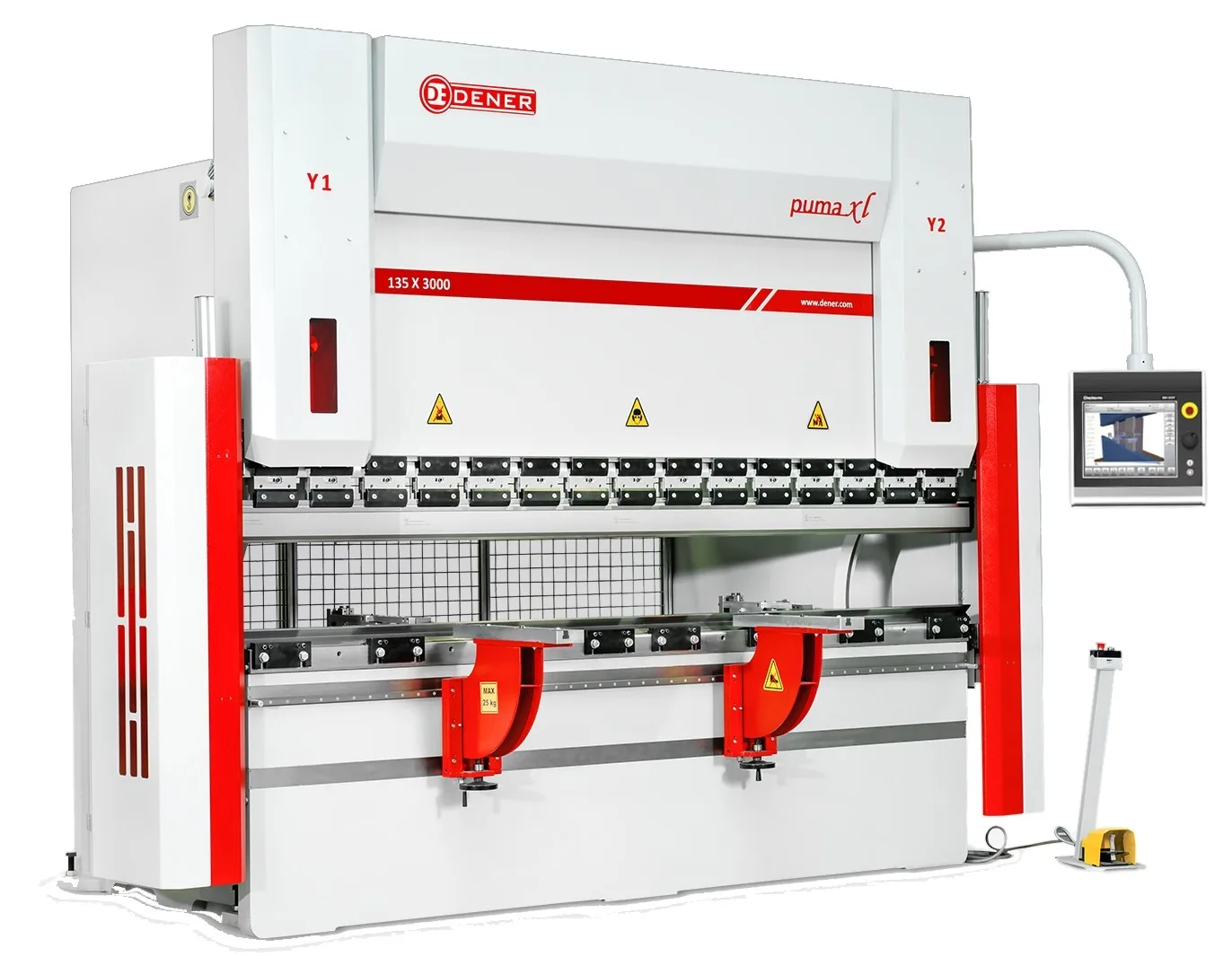

Dener PUMA XL Series Hydraulic Press Brake

High quality Turkish CNC Press Brake 5 Axis CNC control Lengths available from 1550-8000mm 40-600 Ton capacities available

POA: Let us know your requirements Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Introduction: DENER MAKINA was established in 1974 in Kayseri/TURKEY and is a manufacturer of NC and CNC Hydraulic Pressbrakes, NC Swingbeam and CNC Rake Angle Shears, Plasma Cutters, Corner Notchers and Folding Machines.

Since the very first beginning, DENER has had the philosophy of the production with best quality and high technology with ISO 9001 Quality Control Management System and European Safety Standards.

DENER MAKINA is one of the leading Turkish Brands in Sheetmetal Working Machinery with a large 18,000 m2 factory with skilled and qualified workers, and today DENER Machines are sold all over the world through their dealer network.

DENER PUMA XL CNC Press Brakes are born with the goal to be flexible, reliable and advanced bending machines; Dener utilizes the most stringent manufacturing technologies during production to manufacture the highest quality machines. Based on proven design, Dener has increased working speeds, stroke, daylight, and pressing capacities of Puma XL machines. DENER PUMA XL is a synchronized hydraulic press brake with a 2D Graphical CNC controller and offers simple operation, quick and easy 2D or numerical part programming easy setup of the machine, and auto calculation of the bend sequence. These functions make Dener PUMA XL CNC Hydraulic Press Brakes very popular in the fabrication industry.

Features:

  • Delem DA-66T touch screen controlling system from Holland controls the backgauge, bending depth and the compensation of the crowning accurately. This is designated as Y1, Y2, X, R & crowning axis (V).
  • Large daylight, stroke and throat
  • The electric-hydraulic servo system, together with the world famous linear displacement sensor, ensure the highest controlling precision, bending accuracy & repositioning accuracy reaching the highest level.

Standard Accessories:

  • Side guarding and rear photoelectric protection
  • DEP 1281 top tooling H=104.65mm T/M=100
  • DEP 2067 bottom tool (16, 22, 35 & 50mm vee) T/M=80
  • Two front sheet supports and gauging arms mounted on rails
  • Motorised crowning system
  • AKAS LC-II F multi point laser finger protection
  • Remote foot pedal with emergency stop
  • Two easily movable back gauge fingers
  • CE confirmation

Many length & tonnage configurations available - Contact us to discuss your bending requirements

Optional:

  • Delem DA-69T 3D graphical CNC control
  • Manual quick clamp tool holders
  • Wila tool holders in manual or hydraulic clamping configuration for quick tool changes
  • Tandem configuration possible

Multi-axis back gauge configuration options:

  • X prime finger
  • X1, X2, R
  • X, R, Z1, Z2
  • X, X prime, R, Z1, Z2
  • X1, X2, R, Z1, Z2
  • ATF type X1, X2, R, Z1, Z2

Wide range of Eurostamp tooling available

  • Euro Stamp website Link

Note: All models under 600 ton capacity are above ground and do not require an underground pit

Note - All Pressbrakes Supplied without hydraulic oil

Machine video

See Dener PUMA XL Series in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Puma XL1550x40T XL2050x60T XL2600x100T XL3020x100T XL2600x135T XL3020x135T XL4050x135T XL3020x175T XL3600x175T XL4050x175T XL3020x220T
Bending length (mm) 1550 2050 2600 3020 2600 3020 4050 3020 3600 4050 3020
Bending capacity (ton) 40 60 100 100 135 135 135 175 175 175 220
Stroke (mm) 220 220 300 300 320 320 320 350 350 350 350
Approach speed (mm/sec) 10 10 10 10 10 10 10 10 10 10 10
Bending speed (mm/sec) 160 150 140 130 130 130 130 130 130 80 80
Return speed (mm/sec) 220 300 320 350 350 350 350 350 350 400 400
Throat depth (mm) 410 530 550 600 650 600 600 600 600 650 650
Daylight (mm)> 400 450 450 450 450 450 450 450 450 600 450
Distance between frames (mm) 1255 2150 2550 2550 2550 3100 3100 3550 3550 3550 5100
Dimensions LxWxH (mm) 2260x1920x2355 3280x2250x2780 3700x2240x2825 3700x2280x2775 3700x2280x3050 3750x2320x3100 4250x2280x3050 4700x2280x3050 4700x2280x3050 5050x2840x3550 6770x2435x3100
Table height (mm) 900 900 900 900 920 920 920 920 920 1095 920
Main motor (kW) 7.5 11 15 22 22 22 22 22 22 30 30
Oil tank (L) 100 190 190 300 300 300 300 300 300 400 400
Weight (kg approx) 4,850kg 8,200kg 10,350kg 12,050kg 15,550kg 13,800kg 14,300kg 15,000kg 15,500kg 24,200kg 23,900kg
Puma XL3600x220T XL4050x220T XL6050x220T XL3020x320T XL3600x320T XL4050x320T XL6050x320T XL4050x400T XL6050x400T XL6050x500T XL6050x600T
Bending length (mm) 3600 4050 6050 3020 3600 4050 6050 4050 6050 6050 6050
Bending capacity (ton) 220 220 220 320 320 320 320 400 400 500 600
Stroke (mm) 350 350 350 400 400 400 400 400 400 400 430
Approach speed (mm/sec) 140 140 100 140 140 140 80 80 60 60 60
Bending speed (mm/sec) 10 10 10 10 10 10 10 10 8 8 8
Return speed (mm/sec) 130 130 100 120 120 120 80 80 60 60 60
Throat depth (mm) 450 450 450 450 450 450 450 600 600 600 600
Daylight (mm) 600 600 600 650 650 650 650 650 650 650 680
Distance between frames (mm) 3100 3550 5100 2555 310 3550 5100 3550 5100 5100 5100
Dimensions LxWxH (mm) 4350x2590x3050 4800x2590x3050 6850x3050x3050 3800x2590x3080 4350x2590x3080 4825x2592x3080 6850x3100x3080 4750x3150x3800 6850x3150x3800 7000x3300x3950 7000x3300x4000
Table height (mm) 920 920 920 920 920 920 920 1095 1095 1085 1000
Main motor (kW) 22 22 22 30 30 30 30 45 45 45 45
Oil tank (L) 300 300 300 400 400 400 400 400 400 400 600
Weight (kg approx) 13,750kg 14,500kg 21,500kg 14,750kg 16,000kg 17,000kg 28,200kg 26,000kg 37,000kg 56,000kg 59,000kg
