Dener AS Series CNC Variable Rake Guillotine

Heavy duty CNC guillotines, available from 6mm to 20mm capacity.

POA: Let us know your requirements Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Dener CNC Guillotine Shears provide, rock solid mechanics, hydraulics, accurate ball screw back gauge and a user friendly CNC Controller to give you a highly productive shearing machine.

Dener Shears are available from 6mm up to 20mm thickness cutting capacity with lengths from 3 meter up to 6 meter as standard and with higher capacity machines available by demand.

The design of the frame, cutting beam and back gauge ensures the highest rigidity and resistance to torsion and deformations. With the strong design customers can get maximum cutting quality.

With an easy to use CNC controller the operator enters the thickness and the type of the material and controller automatically adjusts the cutting angle and blade gap to suit.

Standard features:

  • ESA S 530 CNC controller
  • Motorised back gauge
  • Front finger guarding
  • Hold down pads
  • Heavy duty frame
  • Front support arms with T-slots
  • Sheet slider on balls on table
  • Remote foot pedal control with E-stop

Optional:

  • Pneumatic sheet support system
  • Laser cutting line
  • Oil cooling system
  • 2 or 3m Front support arms
  • Light curtain

Other length and cutting capacity models are available. Please enquire

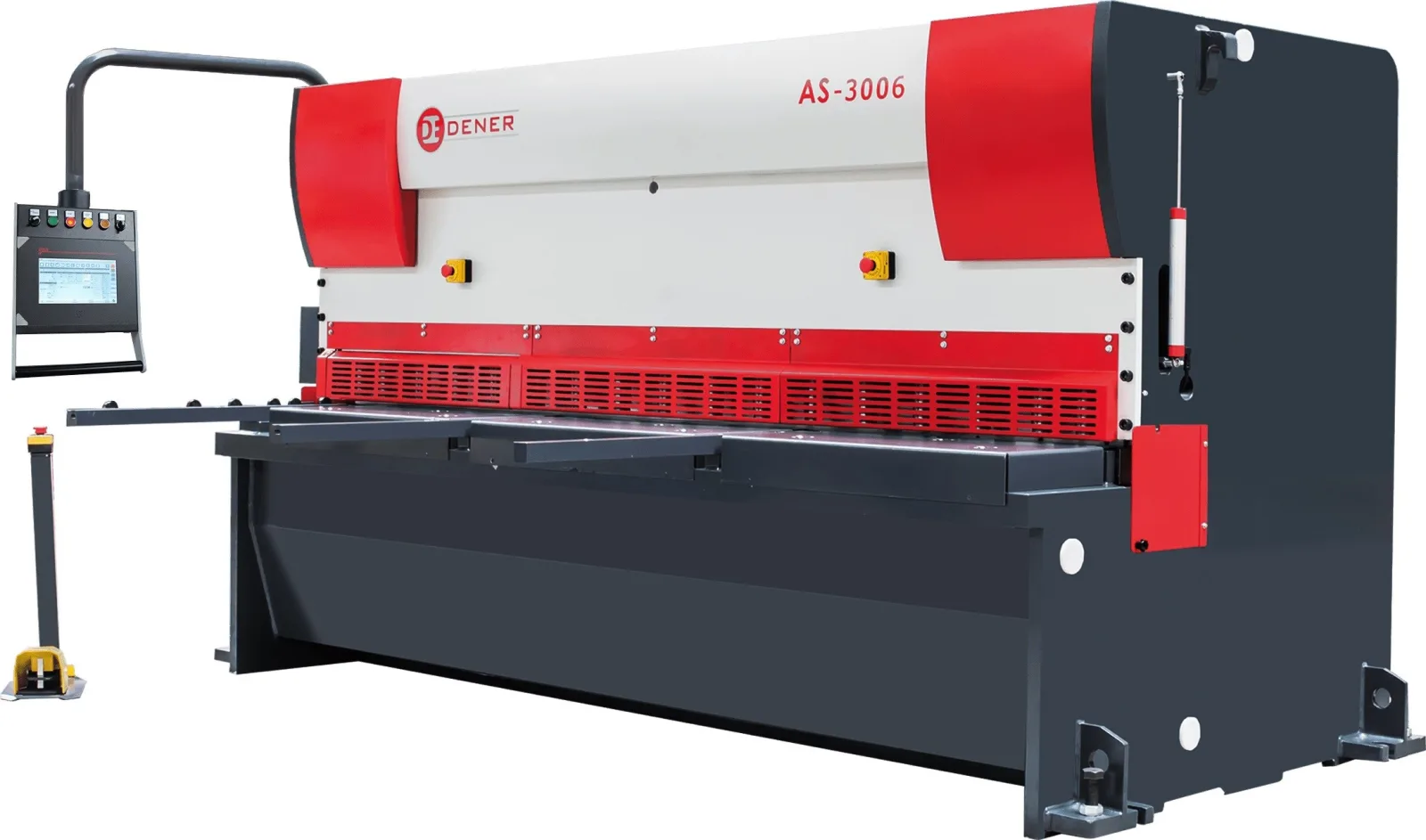

Note: AS-3006 model shown in images

Machine video

See Dener AS Series in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Dener AS-3106 AS-3110 AS-3113 AS-3116 AS-3120 AS-4106 AS-4110 AS-4113 AS-4116 AS-4120 AS-6106 AS-6110 AS-6113 AS-6116 AS-6120
Cutting length 3100mm 3100mm 3100mm 3100mm 3100mm 4100mm 4100mm 4100mm 4100mm 4100mm 6100mm 6100mm 6100mm 6100mm 6100mm
Cutting capacity (mild steel) 6mm 10mm 13mm 16mm 20mm 6mm 10mm 13mm 16mm 20mm 6mm 10mm 13mm 16mm 20mm
Cutting angle 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg 0.5-3deg
Number of hold down pads 15 17 16 16 16 23 21 21 26 26 31 31 31 31 31
Main motor 11kW 22kW 30kW 30kW 37kW 11kW 22kW 30kW 30kW 37kW 11kW 22kW 30kW 45kW 45kW
Cuts/min (@0.5 & 3 deg) 29-12 20-11 17-8 13-6 12-5 23-9 20-11 13-6 13-6 12-5 14-6 11-5 11-5 10-5 10-5
Oil tank 200L 300L 400L 600L 750L 200L 400L 400L 400L 750L 475L 500L 400L 750L 750L
Throat depth 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm 350mm
Weight 8300kg 10500kg 13400kg 15500kg 21500kg 11150kg 14900kg 18000kg 21000kg 27000kg 22000kg 25000kg 35500kg 49500kg 55000kg
