T-THRD-1-0003
Coventry Die Head Thread Chaser Sets to suit 3/4 inch
USED COVENTRY CHASER SETS TO SUIT 3/4" DIE HEAD
$86.95 per set
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.

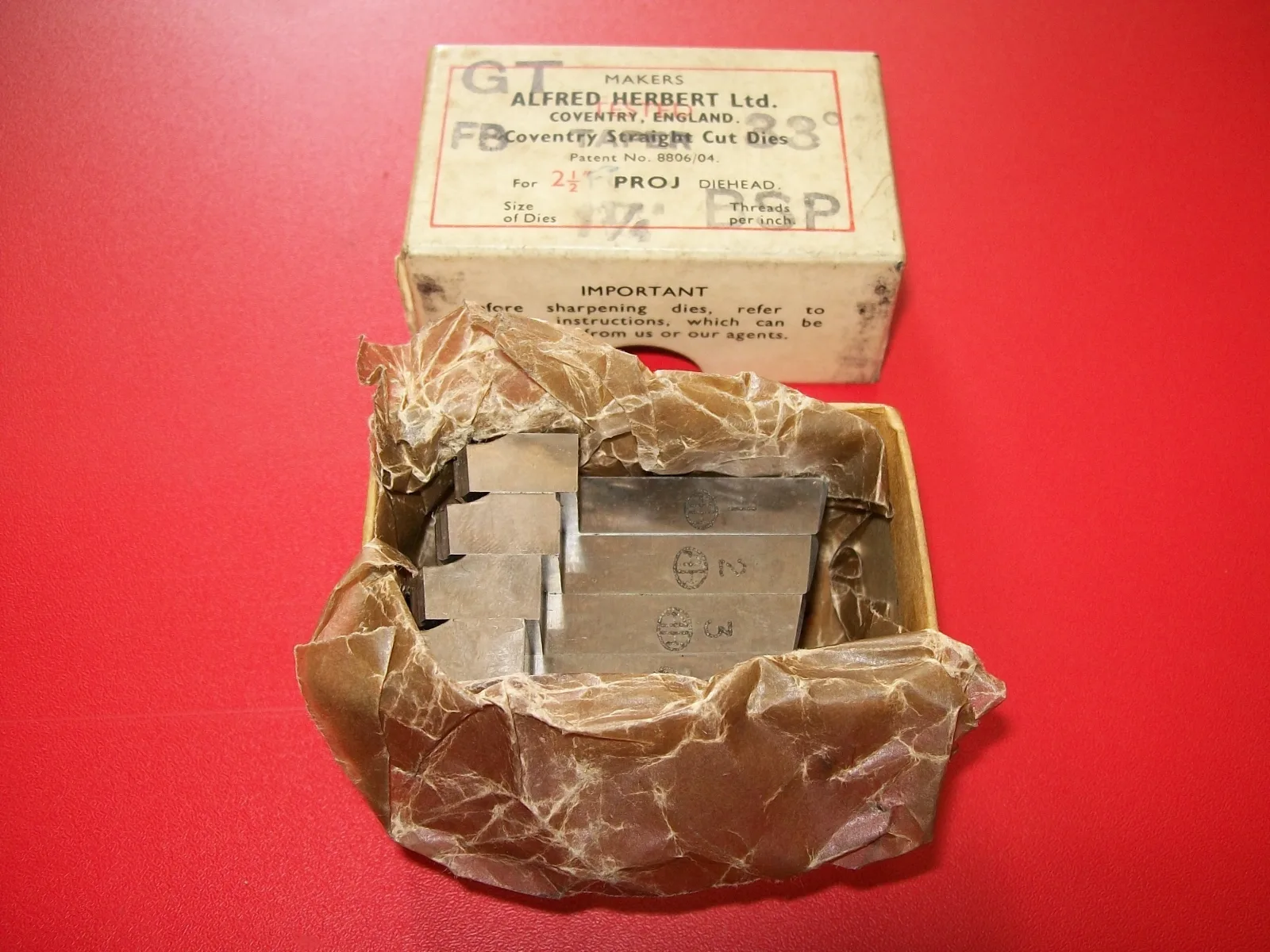

Coventry chaser sets to suit 3/4" die head. Most of these are in new condition. Note: Photo is of sample only.
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| 3/4" Die Head Size | Thread Form (RH) | Dia / Size x Pitch / TPI | Stock |
|---|---|---|---|
| 3/4" as below | ACME as below | 5/16 x 12 | 2 |
| 9/16 x 8 | 2 | ||
| 21/32 x 8 | 1 | ||
| 3/4 x 8 | 1 | ||
| ANPT as below | 1/4 x 18 | 3 | |
| 3/8 x 18 | 2 | ||
| BA | 2 x 0.0319 | 2 | |
| BSB as below | 5/16 x 26 | 2 | |
| 3/8 x 26 | 4 | ||
| 7/16 x 26 | 1 | ||
| 1/2 x 26 | 11 | ||
| 9/16 x 26 | 5 | ||
| 5/8 x 26 | 2 | ||
| 11/16 x 26 | 2 | ||
| 3/4 x 26 | 11 | ||
| 13/16 x 26 | 15 | ||
| 7/8 x 26 | 15 | ||
| 15/16 x 26 | 2 | ||
| 1" x 26 | 1 | ||
| BSF as below | 1/4 x 26 | 1 | |
| 5/16 x 22 | 2 | ||
| 3/8 x 20 | 1 | ||
| 7/16 x 18 | 1 | ||
| 1/2 x 16 | 2 | ||
| 5/8 x 14 | 1 | ||
| 11/16 x 14 | 1 | ||
| BSP as below | 1/4 x 19 | 4 | |
| 3/8 x 19 | 18 | ||
| 1/2 x 14 | 10 | ||
| 5/8 x 14 | 2 | ||
| 3/4 x 14 | 8 | ||
| 1 1/2" x 11 | 1 | ||
| 1 3/4" x 11 | 1 | ||
| 2" x 11 | 7 | ||
| BSW as below | 3/16 x 24 | 3 | |
| 1/4 x 20 | 15 | ||
| 5/16 x 18 | 21 | ||
| 3/8 x 16 | 17 | ||
| 7/16 x 14 | 5 | ||
| 1/2 x 12 | 26 | ||
| 9/16 x 12 | 10 | ||
| 5/8 x 11 | 6 | ||
| 11/16 x 11 | 2 | ||
| 3/4 x 10 | 3 | ||
| 13/16 x 10 | 6 | ||
| 7/8 x 9 | 2 | ||
| 15/16 x 9 | 1 | ||
| 1" x 8 | 1 | ||
| 7/8 x 9 | 2 | ||
| 7/8 x 9 | 2 |
