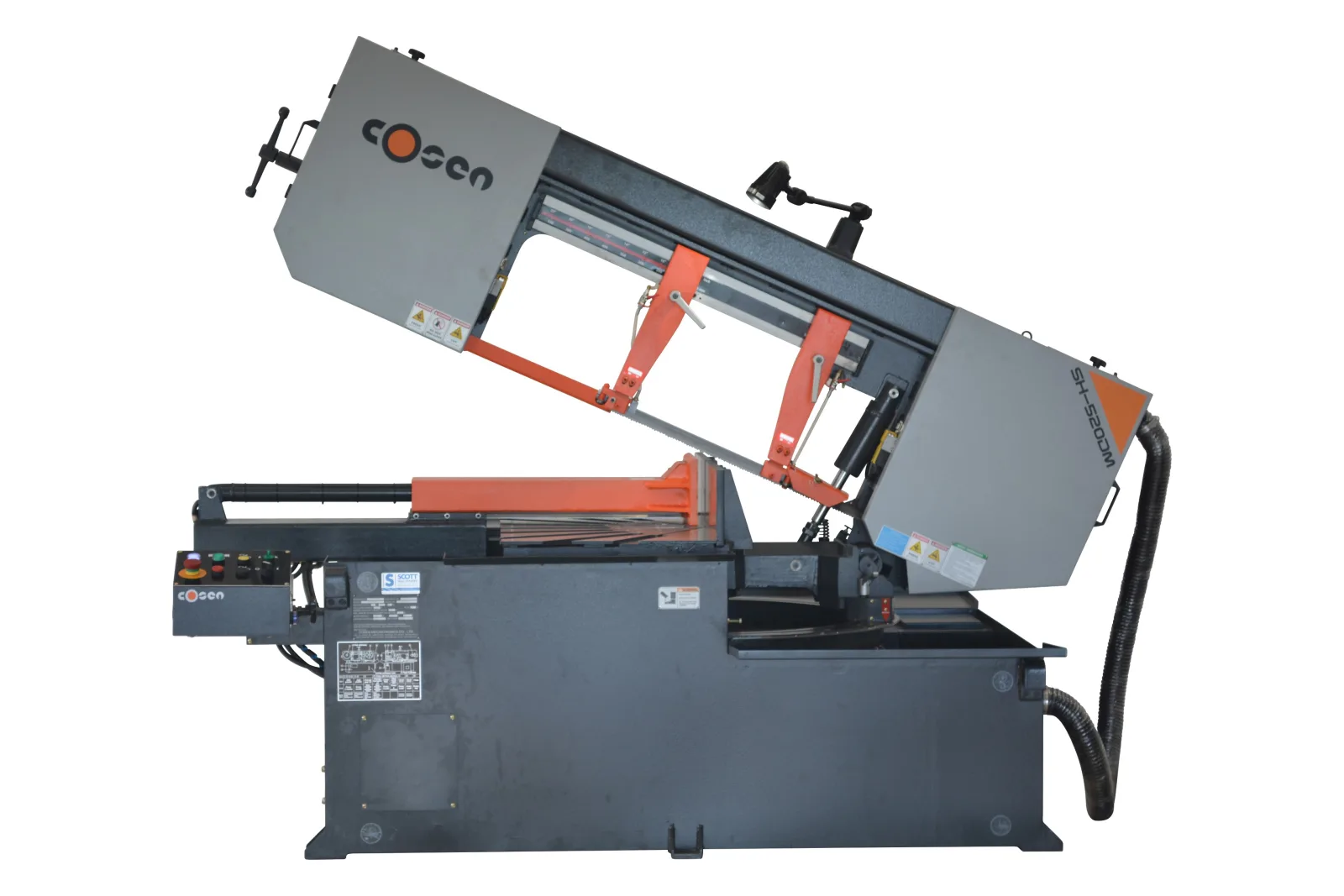

Cosen SH-520DM Semi Automatic Mitre Cutting Bandsaw

Name: Cosen SH-520DM Semi Automatic Mitre Cutting Bandsaw – Double Mitre
Brand: Cosen
SKU: SAWB-0-0520

Large double mitre bandsaw

$29,990.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade speed range 20-76 m/min 4 Speeds

Blade size 4730mm x 34mm x 1.1mm

Coolant pump 0.1kW (1/8hp) (40L)

Hydraulic pump 0.37 kW (1/2hp) (8L)

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Cosen Saws, established in 1976, have become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years in maximizing efficiency and quality in every step of designing, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognized components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen has also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The Cosen SH-520DM is a robust semi automatic bandsaw featuring a swivel head for dual miter cuts up to +/-60 degrees. With a rigid cast iron frame, manual locking for quick angle setups, precision blade tensioning, hydraulic full stroke vise, and built in coolant, it ensures clean, durable cuts, ideal for structural steel, beams, pipes, and service center workflows

Features:

Quality Taiwanese Manufacturing
Saw can miter cut both ways (Double Miter)
Swivel head for miter cutting up to 60 degrees
HD pivot & locking system
Rigid bow & wide base construction
Hydraulic cylinder with semi automatic bow lift

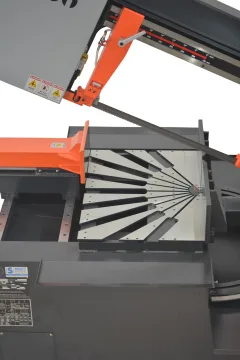

Specially designed base for miter cutting from -45 to straight to +60 degrees
Rigid guide arms mounted on extra wide precision ground dovetail slide
Two additional bearings to support blade from the top
Convenient operator control station
Precision feed rate & feed pressure control via dual valve system
Full stroke hydraulic clamping vice with twin guide supports
Manual blade tensioning
Adjustable length stop
Work light

Standard Accessories:

Blade cleaning brush wheel
Down feed rate control via hydraulic valve
Carbide blade guides
Two point coolant system to blade
34mm blade height
Adjustable length stop

Included Options by Scott Machinery:

Variable vice pressure regulator

Optional:

2m Heavy duty roller table
3m Powered roller table
Laser Line (indent only factory fitted)
Safety features:
Latching emergency stop
Safety interlock switch on blade guard

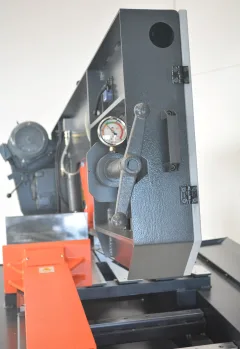

Hydraulic gauge to ensure blade is not over tensioned
Blade breakage detector

CE conformity

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Cosen SH-520DM
Cosen	SH-520DM
Capacity	Straight	+/- 45 deg	+/- 60 deg
Round	340mm	320mm	240mm
Capacity Rectangle (HXW)	250mm x 520mm	250mm x 370mm	250mm x 240mm
Blade speed range	20-76 m/min 4 Speeds
Blade size	4730mm x 34mm x 1.1mm
Coolant pump	0.1kW (1/8hp) (40L)
Hydraulic pump	0.37 kW (1/2hp) (8L)
Work height	800mm
Motor	2.2kW (3hp)
Nett machine weight	1,015kg
Floor space (LxWxH)	2,575 x 3,050 x 2,150 mm
Shipping size & weight	17,75m3 (1200kg)
