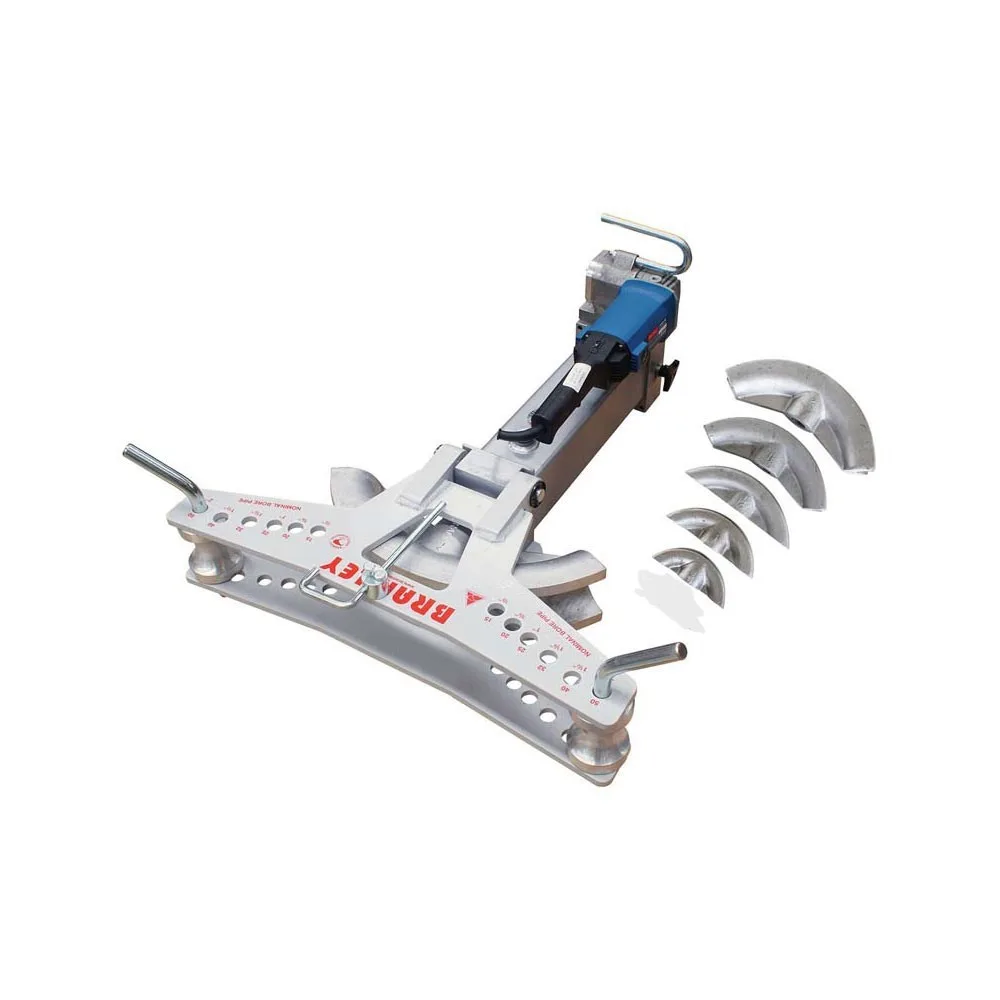

Bramley 1/2 - 2 inch Electric Pipe Bender

Portable Electric Hydraulic Pipe Bender 1/2" - 2" 220v/1020w

$3,365.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Bramley Electric Pipe Bender
Complete with : NB Size --- Centreline radius of bend
Former 1/2" --- 75mm
Former 3/4" --- 105mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

R.R. Bramley & Co Ltd is a trusted New Zealand supplier and manufacturer of engineering machinery. Their brands Bramley, Linishall, and Garrick cover equipment for bending, forming, cutting, threading, grinding, and lifting. Bramley produce and supply machinery like hydraulic benders, cold-cut saws, grinders, and sheet metal tools. Bramley products are built for reliability and precision. With over a century of expertise, the company is known for quality machinery, technical support, and a strong commitment to New Zealand industry

The Bramley 1/2 - 2" Electric Hydraulic Pipe Bender is a rugged, workshop proven unit designed for accurate bending of medium to heavy wall pipe. Built with the same chassis as the manual Bramley hydraulic pipe bender with the strength and reliability expected from Bramley. It uses a powerful hydraulic ram powered by a single phase high pressure hydraulic pump to deliver smooth, consistent bends without flattening or distortion. Suitable for pipe sizes from 1/2" to 2", it comes complete with a set of precision formed bending formers to cover the full capacity range. Ideal for fabricators, plumbers, and industrial workshops, this machine combines ease of operation with long-lasting New Zealand engineering quality

Features

  • Made in New Zealand built for durability and long service life
  • 12 ton hydraulic jack powered by variable speed 220v/1020w powertool unit
  • Complete with 6 precision cast aluminium formers 1/2", 3/4", 1", 1 1/4", 1 1/2", and 2"
  • Large arc formers with elliptical cross section which supports pipe and minimises flattening
  • Smooth bends up to 90 degree for accurate, repeatable results
  • Solid frame construction with nose cone support, eliminates flexing under load
  • 12 ton hydraulic jack provides ample power for heavy wall pipe
  • Two stage high flow / high pressure pump for fast approach and precise bending pressure
  • Flip top frame allows quick change of pipe and formers
  • Boxed weight: 60 kg. Sturdy yet portable enough for workshop or site use

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Bramley Electric Pipe Bender
Complete with : NB Size --- Centreline radius of bend
Former 1/2" --- 75mm
Former 3/4" --- 105mm
Former 1" --- 140mm
Former 1 1/4" --- 175mm
Former 1 1/2" --- 200mm
Former 2" --- 240mm
Weight 60kg
Shipping 657mm x 700mm x 270mm (65kg)
