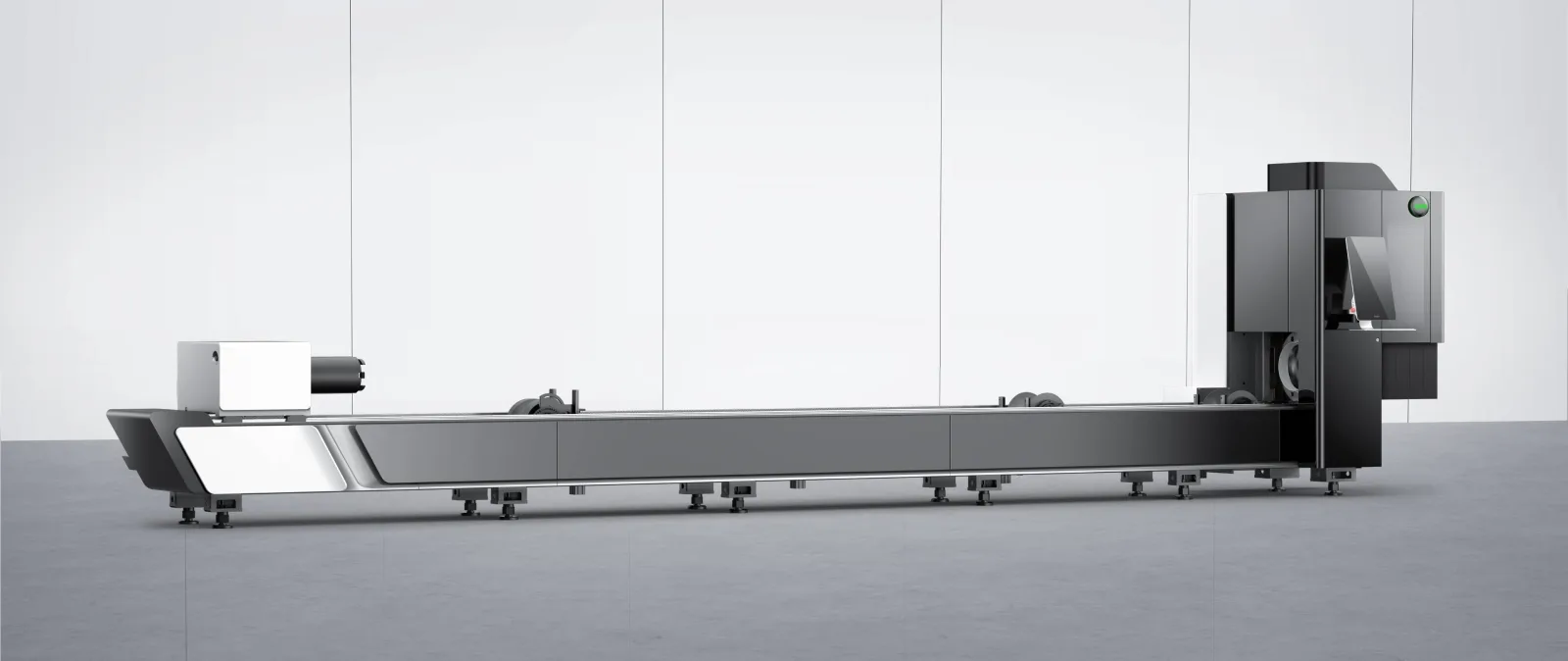

Bodor K2-65 3kW Tube Laser Cutting Machine
230mm diameter x 6500mm tube capacity. Other K Series models available.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Bodor is a world leader in laser technology and holds the No.1 position in global sales volume. They offer a 5 year warranty on their 'Laser stack' which is the Laser Head, Laser Source, and Operating System, demonstrating Bodor's 'best-in-industry' confidence in their product. Bodor have made a huge investment in the laser industry with their Dream Park Headquarters and manufacturing base, covering 250,000 square meters, setting the stage to be the world's largest production base for laser cutting equipment.
Features
- Bodor K2-65 Tube Fiber Laser Cutting Machine
- Maximum tube length: 6500mm
- Round tube range: 8-230mm
- Square tube range: 8-230mm
- Rectangular tube side length: 8-230mm
- Angle steel range: 30-140mm leg size
- Channel steel range: 50-140mm section depth
- Repeated positioning accuracy: 0.03mm
- Maximum no-load moving speed: 90m/min
- Maximum chuck rotation speed: 100r/min
- Maximum tube load: 300kg total / 46kg per metre
- Minimum remnant: 70mm
- Dimensions (length x width x height): 9347 x 1872 x 2286mm
- Total weight: 2450kg
Description:
- Third-generation mortise-and-tenon welded machine bed
- High-speed pneumatic chuck system with fast clamping
- Fast centering and tube support system
- Edge collision prevention
- Processes round, square, rectangular, oval and rounded rectangular tube, angle steel and channel steel
- Simplified tube programming and one-click operation
Components:
- CNC control system: BodorThinker
- Laser source: BodorPower
- Laser cutting head: BodorGenius
