LASER-0-3003
Laser & Automation · Sheet laser cutting

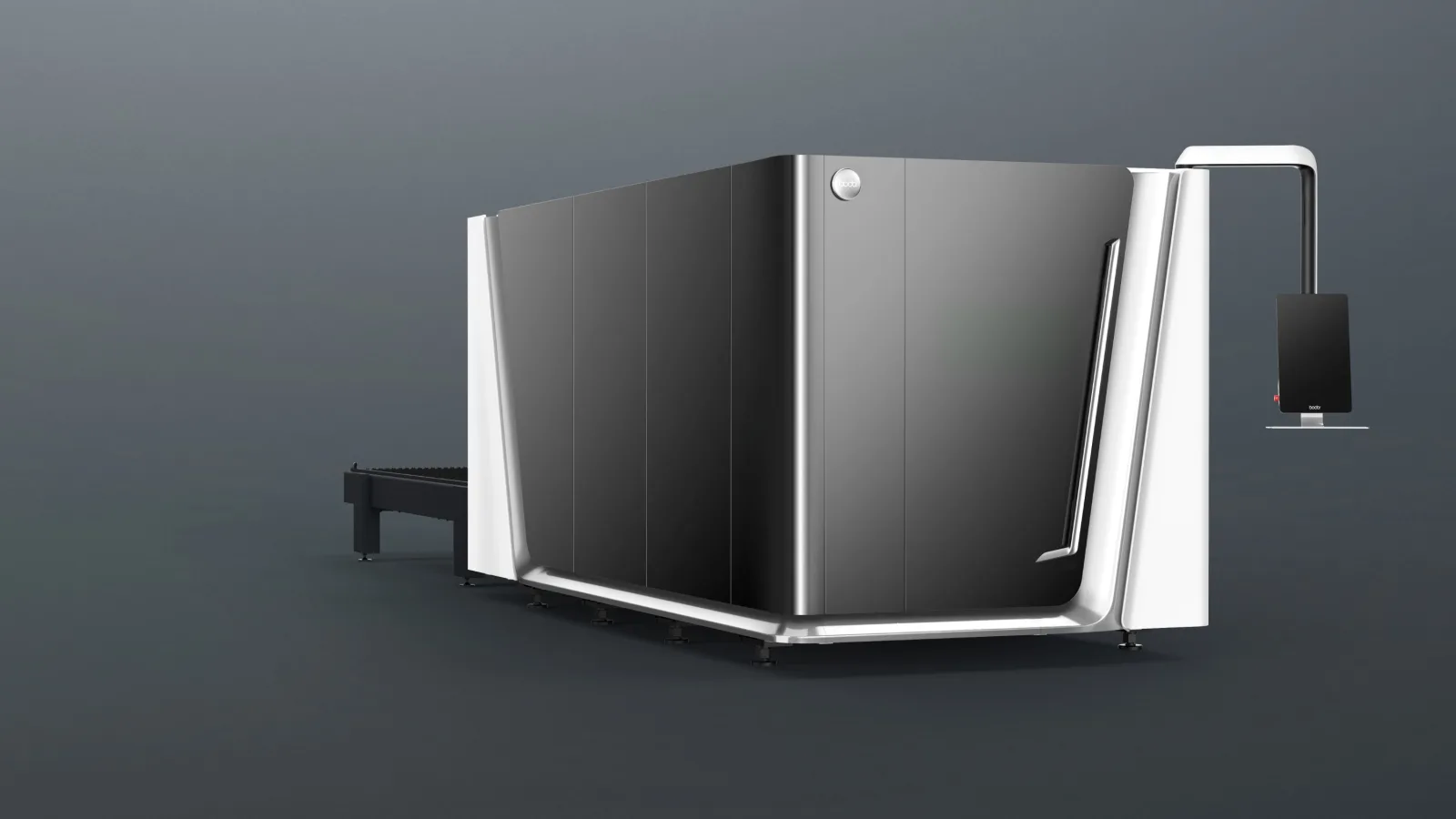

Bodor C3 3kW Laser Cutting Machine
3048x1524mm to 12200x2500mm cutting capacity models 3-6-12-20-30-60kW models
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Bodor is a world leader in laser technology and holds the No.1 position in global sales volume. They offer a 5 year warranty on their 'Laser stack' which is the Laser Head, Laser Source, and Operating System, demonstrating Bodor's 'best-in-industry' confidence in their product. Bodor have made a huge investment in the laser industry with their Dream Park Headquarters and manufacturing base, covering 250,000 square meters, setting the stage to be the world's largest production base for laser cutting equipment.
Features
- Bodor C3 Medium Power Fiber Laser Cutting Machine (3 kW)
- Work area: 3048 x1524mm
- X/Y-axis positioning accuracy: +/- 0.05mm
- X/Y-axis repeated positioning accuracy: +/-0.03mm
- Maximum speed: 120m/min
- Maximum acceleration: 1.5G
- Workbench maximum load (KG): 911kg
- Dimensions (length x width x height): 9392 x 2232 x 2307mm
- Total weight (KG): 4330KG
- Description:
- 1. High-strength semi-hollow machine bed
- 2. High-strength aluminium alloy beam
- 3. Fully automatic focus
- 4. CE Certificate
- Components:
- CNC control system: Bodor Thinker
- Display size: 21.5"
- Laser source: Bodor Power
- Laser cutting head: Bodor Genius
Machine video
See Bodor C3 3kW in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationTalk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
