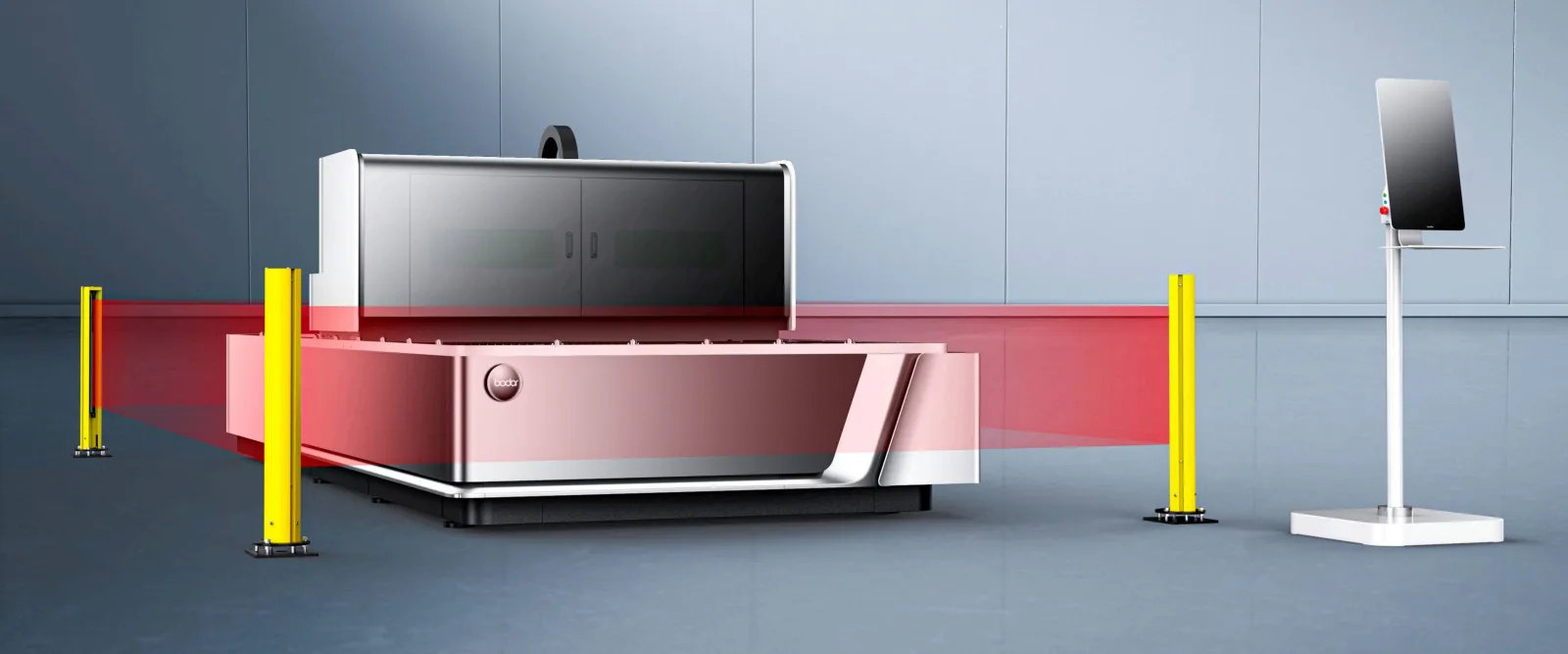

Bodor A3 3kW Laser Cutting Machine
3048x1524mm cutting capacity 3kW model
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Bodor is a world leader in laser technology and holds the No.1 position in global sales volume. They offer a 5 year warranty on their 'Laser stack' which is the Laser Head, Laser Source, and Operating System, demonstrating Bodor's 'best-in-industry' confidence in their product. Bodor have made a huge investment in the laser industry with their Dream Park Headquarters and manufacturing base, covering 250,000 square meters, setting the stage to be the world's largest production base for laser cutting equipment.
Features
- Bodor A3 Medium Power Fiber Laser Cutting Machine (3 kW)
- Work area: 3048 x1524mm
- X/Y-axis positioning accuracy: +/- 0.05mm
- X/Y-axis repeated positioning accuracy: +/-0.03mm
- Maximum speed: 80m/min
- Maximum acceleration: 1.2G
- Workbench maximum load (KG): 911kg
- Dimensions (length x width x height): 5600 x 2260 x 1960mm
- Total weight (KG): 2820KG (without laser head, laser source, water chiller etc.)
- Description:
- 1. High-strength semi-hollow machine bed
- 2. High-strength aluminium alloy beam
- 3. Fully automatic focus
- 4. CE Certificate
- Components:
- CNC control system: Bodor Thinker
- Display size: 21.5"
- Laser source: Bodor Power
- Laser cutting head: Bodor Genius
