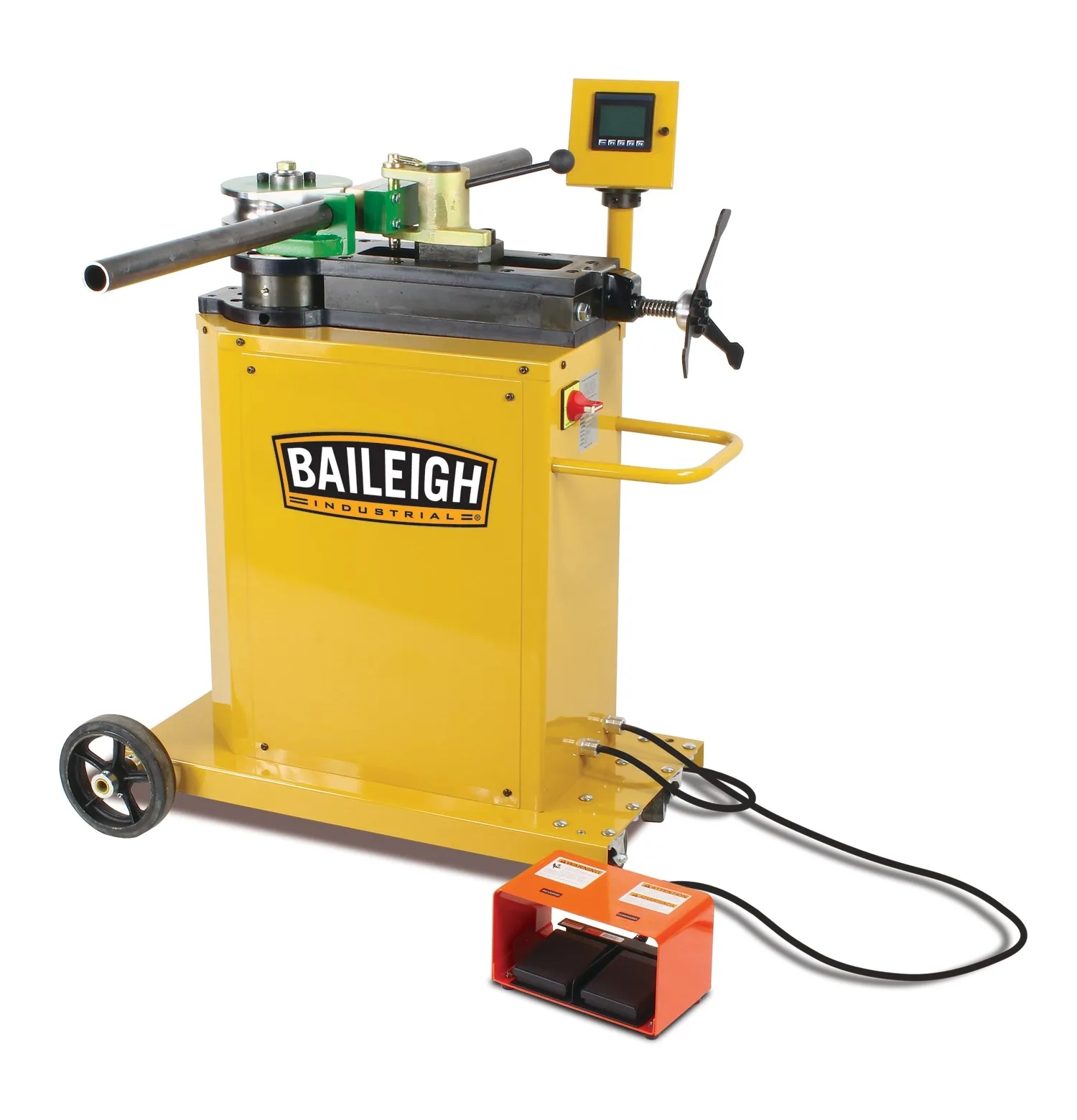

Baileigh RDB250 CE Tube & Pipe Rotary Draw Bender

Name: Baileigh RDB250 CE Tube & Pipe Rotary Draw Bender
Brand: Baileigh
SKU: BEND-0-0250

Made in the USA, 230v, computer controlled with touch screen.

$25,990.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Motor 230v / 1ph / 50hz

Machine Weight 300kg

Machine Dimensions (WxLxH) 1220 x 820 x 1100mm (330kg)

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines. Made in USA

The RDB-250 tube and pipe bender from Baileigh Industrial is a great addition to any fabrication shop. Internal controller memory allows for 170 programs to be saved with up to 10 bends per program, the RDB-250 can also be used in manual mode for one-off bends when setting a program is not necessary. Single phase with enough power to bend up to 62mm tubing and 2 inch schedule 40 pipe makes the RDB-250 one of the most versatile and economical programmable tube and pipe benders on the market for its capacity. Baileigh Industrial's Pipe Benders are renowned for their durability, precision, and ease of use, making them a top choice for metal fabricators, race car builders, and industrial workshops. Their range includes manual, hydraulic, and CNC pipe benders designed to handle everything from simple bends to complex, repeatable production work. Built with heavy-duty steel frames and intuitive controls, Baileigh benders offer consistent, wrinkle-free results across a variety of pipe and tubing materials including mild steel, stainless steel and aluminium.

Features:

Computer programmable
Programmer holds up to 170 jobs
Touch screen
Up to 63.5mm OD capacity
Fast bending, 9 seconds to 180 degrees in one action
Six bending speeds
Quick release die follower adjustment
Portable. 230V single phase
Foot pedal operation
Replaceable bronze bushings at all pivot points with grease nipples
Simplicity of design, few moving parts

Optional:

Pipe formers 1/2" - 2" NB
Pipe former set RP-2B - 6 dies: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" NB
Tube formers 6.5mm - 63.5mm OD
Tube former set RT-2B - 6 dies: 19mm, 22.2mm, 25.4mm, 31.8mm, 38mm", 50.4mm OD
Square formers 25mm - 50mm
Square former set ST-1B - 5 dies: 12.7mm, 19mm, 25.4mm, 31.8mm, 38mm
Various centre line tooling available via indent. Common sizes in stock.
Rotary indexing table (image 7)

Nb. Machine supplied without tooling.

Machine video

See Baileigh RDB250 CE in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Baileigh RDB250 CE
Model	RDB-250	Capacity
Schedule 40 Round Pipe	Mild steel	2" (60 x 4mm)
	Aluminium	2" (60 x 4mm)
	Stainless	1.5" (48 x 3mm)
Round Tube	Mild steel	2.5" (64 x 3mm)
	Aluminium	2.5" (64 x 3mm)
	Stainless	2.375" (60 x 3mm)
	Chromolly	2" (50 x 3mm)
Square	Mild steel	2" (50 x 3mm)
Solid	Mild steel solid round rod	1.25" (32mm)
Maximum Centre Line Radius	229mm	Dependant on material and diameter
Motor	230v / 1ph / 50hz
Machine Weight	300kg
Machine Dimensions (WxLxH)	1220 x 820 x 1100mm (330kg)
