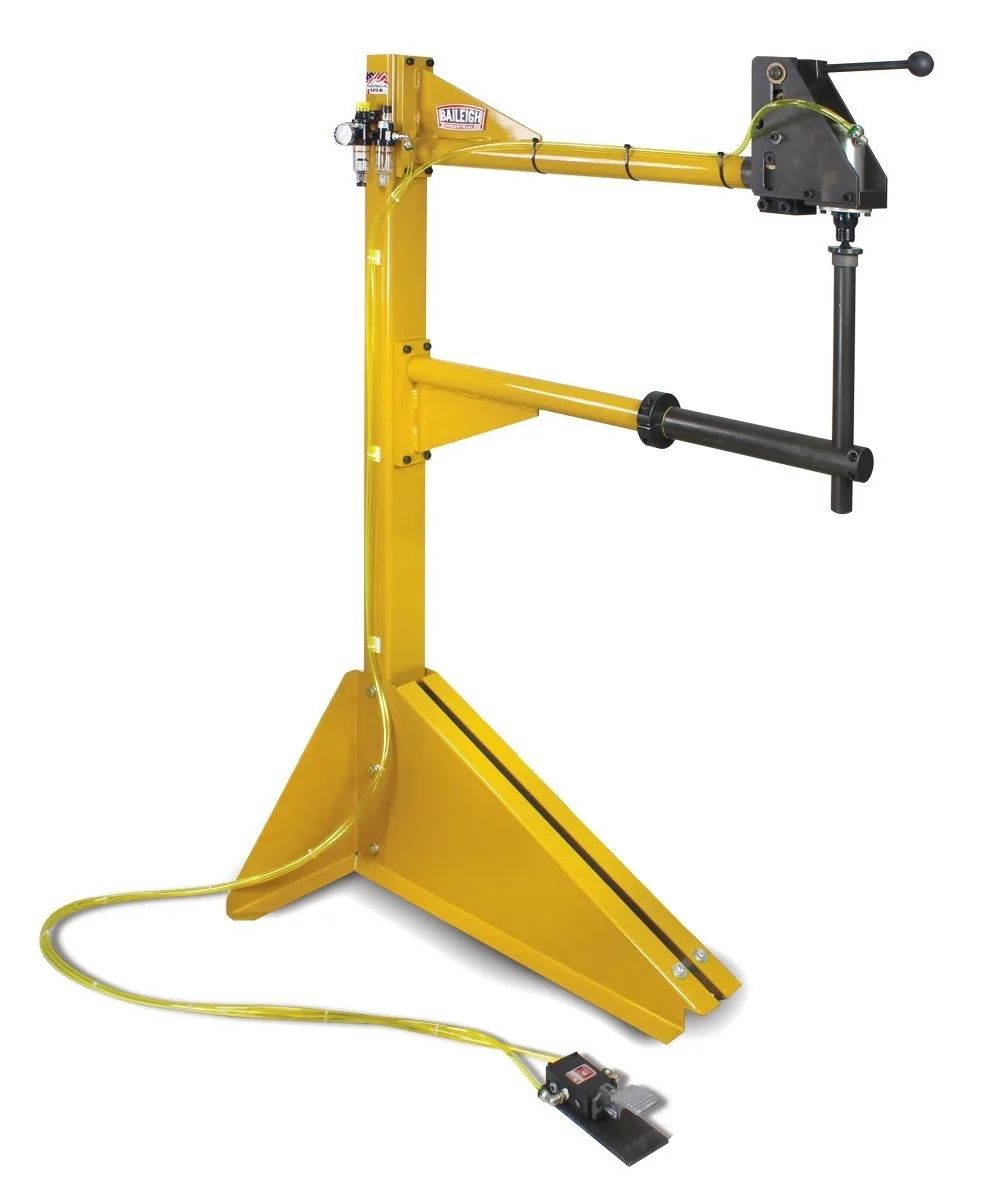

Baileigh PH-36A Planishing hammer

1.6mm mild steel capacity power hammer

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model PH-36A
Speed 3200 beats/min (variable)
Mild steel capacity 1.6mm / 16 gauge
Aluminium capacity 2mm / 14 gauge
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The PH-36A planishing hammer is another in the long list of quality sheet metal shaping machines manufactured by Baileigh Industrial. This well thought out machine is built in the USA with only the highest quality components. Everything on the PH-36A is adjustable making it the most versatile planishing hammer on the market. Even the air motor is completely rebuildable, which would allow you to change the characteristics of the hit for your application. For even more versatility, add the optional dog leg bottom brace. This will open up the clearance on the bottom of the machine for those tight radii applications.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Made in USA

Features:

  • Built tough, heavy‐duty frame often filled with sand to reduce vibration and noise
  • 1.6mm Mild steel capacity
  • Pneumatic operation
  • Includes filter, oiler and foot pedal
  • 915mm throat depth
  • Foot pedal operation leaves your hands free to move the material
  • Air motor runs on 90-120 PSI at up to 3,200 blows per minute
  • Adjustable material opening
  • Top & bottom supports have adjustable length for offset planishing

Included:

  • Includes seven radius dies: flat, 2" ,3",6", 8", 12", and 24"

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model PH-36A
Speed 3200 beats/min (variable)
Mild steel capacity 1.6mm / 16 gauge
Aluminium capacity 2mm / 14 gauge
Tooling height adjustment 280mm
Throat depth 915mm
Air pressure 80-120psi
Shipping Dimensions (L x W x H) 1525mm x 1120mm x 1730mm
Weight 91kg
