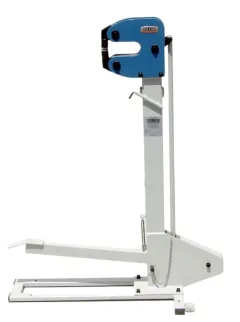

Baileigh MSS-16F Metal Shrinker Stretcher
1 / 3
Baileigh logo SHET-0-1016

Sheet Metal & Fabrication · Rolling & forming

Baileigh MSS-16F Metal Shrinker Stretcher

1.6mm mild steel capacity shrinker stretcher

$3,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model MSS-16F
Mild Steel 1.6mm
Aluminium 2mm
Throat Depth 152mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The MSS-16F metal shrinker is another in the long list of quality sheet metal shaping machines manufactured by Baileigh Industrial. With a maximum capacity of 1.6mm mild steel and 2mm aluminum, this is truly a professional metal workers machine. The MSS-16F is easy to operate, making professional results accessible to the average home handyman right up to the highest level of trade excellence. The foot pedal operation leaves the operators hands free to handle the panel they are trying to shape. The MSS-16F also has a large throat depth for getting deep within a panel. Everything on the MSS-16F is adjustable, forming depth, forming pressure, and even how much marring will happen to the material, with optional jaws. The MSS-16F even has quick change jaws to make forming faster.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Features:

  • 1.6mm Mild steel capacity
  • Treadle operation for hands free operation
  • 152mm Throat depth
  • Durable mobile base built on a cast‑iron stand with casters for positioning ease and ergonomic working height

Included:

  • Quick‑change rounded jaws: Includes two jaw sets (shrinking & stretching) that minimize surface marring and swap out easily

Optional:

  • Aluminum jaws

Machine video

See Baileigh MSS-16F in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model MSS-16F
Mild Steel 1.6mm
Aluminium 2mm
Throat Depth 152mm
Dimensions (WxLxH) 1160mm x 510mm x 210mm
Weight 42kg
