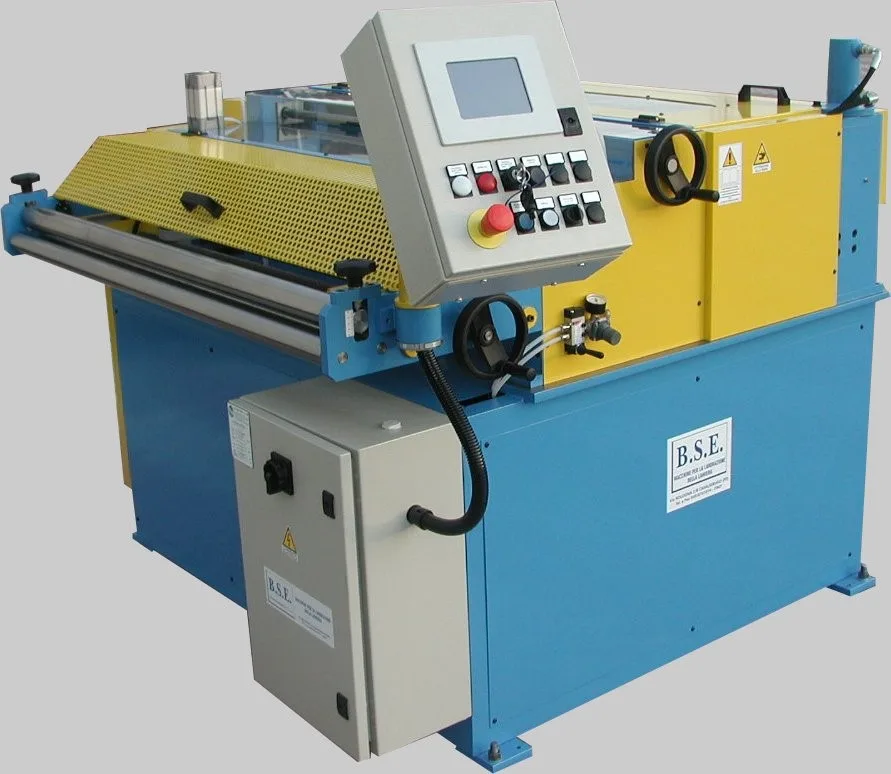

B S E 1250 x 1.2mm Slitting & Cut To Length Line

Italian 1250mm x 1.2mm Coil Multi-Blanking Line

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

BSE is a company founded as a local manufacturer of forming machines for guttering market. Over the years BSE has gained excellent experience in the welding of innovative materials, such as zinc-titanium. Now, constantly expanding its range of machines, it is able to meet the needs of the sheet metal and roofing sector by providing a quality Italian manufactured product.

Key features

  • Adjustable Entry Guide with handwheel and trapezoid screw
  • Straightened with three unpowered, hardened steel rolls. Top rolls 60mm dia, bottom rolls 50mm dia; with adjustable upper roll by means of handwheels.
  • Rubber coated Pinch Rolls. Diameter 110mm; driven by a 3 HP geared motor. Up- downstroking of upper roll by means of air cylinders and valve with hand lever. (Pressure adjustment 0,5 to 8 Bar)
  • Slitter Head with 100mm diameter shafts mounted on conical bearings; 150mm diameter circular knives, of quick-clamp type with screws
  • Three couples of circular knives in special K110 steel
  • Lifting of upper shaft by means of a geared jack, & handwheel
  • Automatic recognition of the slitting cycle
  • Electronic system to stop the last cut sheet under the circular knives
  • 1250mm guillotine shear, of rugged construction operated by hydraulic cylinders; with 2 HP hydraulic power pack

Adjustable material feeding speed from 0 to 25m / min with touch screen type control

  • Incremental Encoder, 5000 pulse/rev.
  • Numerical Control SIPRO SIAX 80
  • Interface with SIPRO touch screen type control panel to input the parts sizes and quantities
  • Storage capacity for, up to 20 different lengths with unlimited number of parts per-size
  • Cut length accuracy +/- 1mm/3000mm
  • Process material thickness max. 1.2mm with R= 360/mm2
  • European CE 400 volt 3ph 50Hz.

Optional:

  • Additional couple of circular knives
  • Decoilers, powered or undriven
