T-BLAD-1-4010
Assortment - Used Guillotine Blades
USED GUILLOTINE BLADE SET
priced from $1,800 + GST per set, please enquire
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.

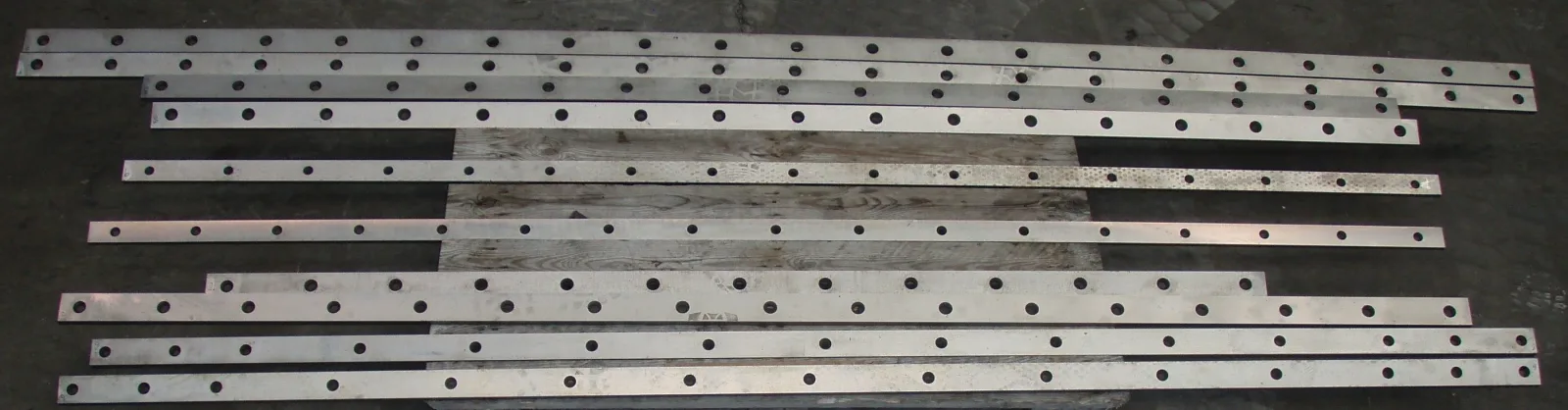

Used Guillotine blades, mostly pairs, some singles in varying condition. Note:Numbers 5 & 6 could possibly be paired. Numbers 11 & 12 first two holes in from either end are 125mm centres followed by 200mm centres.
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Blade length | Width / Height | Thickness | Sides | # Holes | Hole diameter | L1 | Hole centres | Stock | Number |
|---|---|---|---|---|---|---|---|---|---|
| 1904mm | 56 | 15.25 | 2 | 13 | 13.7 | 38 | 152 | 1 pair | 1 |
| 1904mm | 54.5 | 15 | 4 | 13 | 13.8 | 38 | 152 | 1 pair | 2 |
| 1904mm | 56.7 | 15.15 | 4 | 13 | 13.7 | 38 | 152 | 1 pair | 3 |
| 1905mm | 53 | 15 | 2/4 | 13 | 14.7 | 38.8 | 152 | 1 pair | 4 |
| 2490mm | 74.5 | 25 | 4 | 13 | 23.7 | 26 | 203 | Single | 5 |
| 2490mm | 74.5 | 25 | 4 | 13 | 22.6 | 26 | 203 | Single | 6 |
| 2490mm | 70 | 25 | 4 | 13 | 23 | 26 | 203 | Single | 7 |
| 2514mm | 54 | 14.7 | 2 | 17 | 14.3 | 36 | 152 | Single | 8 |
| 2515mm | 54 | 15.6 | 2/4 | 17 | 14.5 | 38.7 | 152 | 1 pair | 9 |
| 2540mm | 42 | 12 | 4 | 17 | 10.5 | 50.3 | 152 | 1 pair | 10 |
| 2550mm | 47.25 | 18.5 | 4 | 15 | 11 | 25 | 200 | 1 pair | 11 |
| 2550mm | 47.5 | 19.1 | 4 | 15 | 11 | 25 | 200 | 1 pair | 12 |
