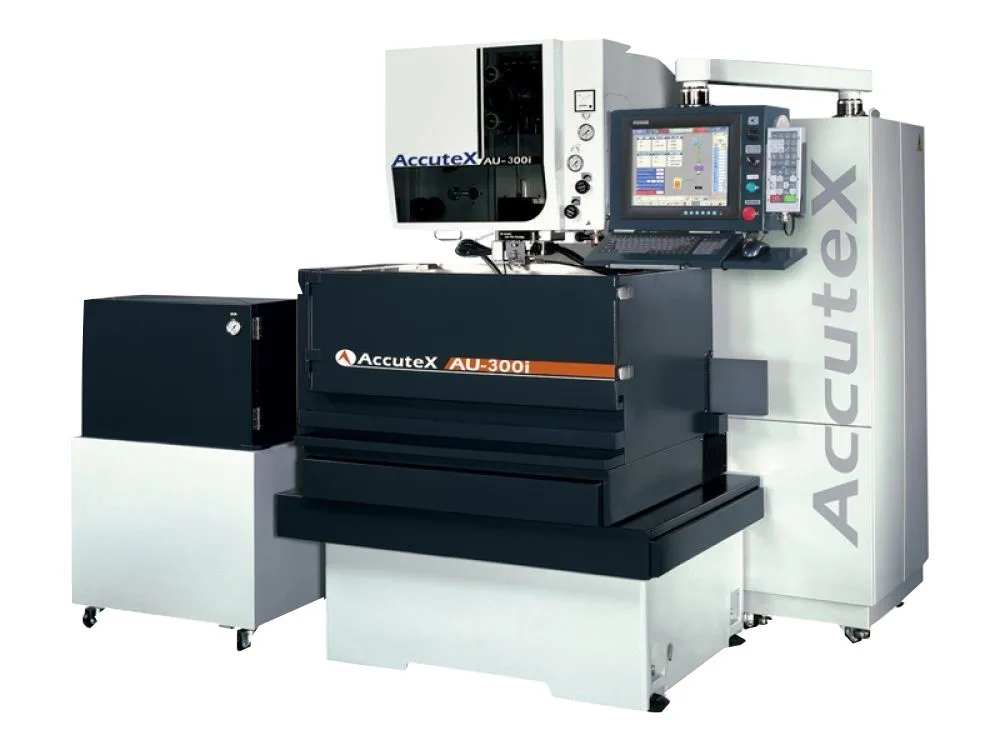

Accutex AU-300iA CNC Wirecut
Advance CNC EDM Wire cutting machine
POA Let us know your requirements
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Advanced features that delivery fast, accurate cutting and a finer surface finish. Technology that can deliver a cutting rate of 380mm2/min, Surface finish of Ra 0.18um, Accuracy of 3um tested over 60 work pieces, 6 axis operation including a medical class submergible rotary table, high accuracy automatic wire threading, plus a lot of other features.
Features:
- Submerged or Flushing type
- 5 Axis high response AC servo system
- C1 class high accuracy ball screws
- High rigidity honeycomb HD cast iron structure
- AC electrolysis free discharge circuitry
- Automatic water conductivity control
- Automatic water temperature control
- Automatic submerged water level control
- Water cooled lower arm
Options:
- Automatic Wire Threading (AWT)
Intelligent servo controlled
High speed submerfed threading
Threading at Wire Break Point
- Linear scale closed loop feedback
- Window CE controller with 15” touch screen
- SD Master
- Anti-collision on Z axis
- Clean water tank
- Remote master
- 45kg Jumbo feeder
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | AU-300i | AU-500i |
|---|---|---|
| Work piece size, max (l x w x h) | 765 x 535 x 215mm | 990 x 560 x 265mm |
| Work piece weight (max) | 300kg | 400kg |
| X & Y Axis travel | 350 x 250mm | 560 x 360mm |
| U & V Axis travel | 80 x 80mm | 100 x 100mm |
| Z Axis travel | 220mm | 300mm |
| Water level in tank (max) | 220mm | 270mm |
| Wire spool weight | 10kg | 10kg |
| Footprint (w x d x h | 2750 x 2560 x 2120mm | 2950 x 2560 x 2210mm |
| Water system capacity | 850L | 850L |
| Machine weight | 3000kg | 3600kg |
