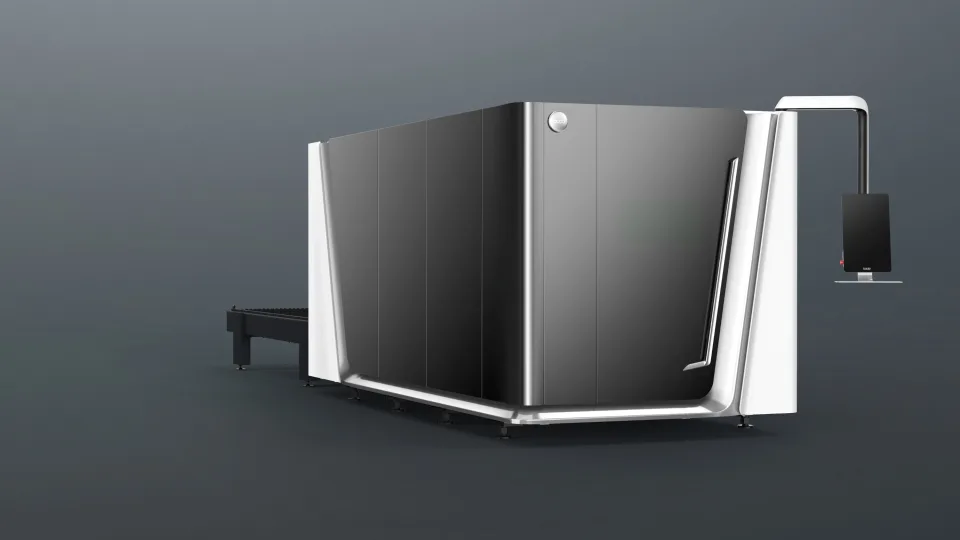

Bodor C3 Series Laser Cutting Machines
POA
WEB-BODOR-CSERIES | Prices exclude GST
Product overview
About this machine.
Bodor is a world leader in laser technology and holds the No.1 position in global sales volume. Offering a 5 year warranty on their 'Laser stack' which comprises the Laser Head, Laser Source, and Operating System, demonstrates Bodor's 'best-in-industry' confidence in the longevity of their product. Bodor have made a huge investment in the laser industry with their Dream Park Headquarters and manufacturing base, covering 250,000 square meters, setting the stage to be the world's largest production base for laser cutting equipment.
Features
- Bodor C Series are Medium Power Fiber Laser Cutting Machines
Description:
- 1. High-strength semi-hollow machine bed
- 2. High-strength aluminium alloy beam
- 3. Fully automatic focus
- 4. CE Certificate
Components:
- CNC control system: Bodor Thinker
- Display size: 21.5"
- Laser source: Bodor Power
- Laser cutting head: Bodor Genius
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Technical specification | |||||
|---|---|---|---|---|---|
| Model | C3 (3.1) | C3 (4.0) | C4 | C6 | C12 |
| Working area | 3048 x 1524mm | 3048 x 1524mm | 4000 x 2000mm | 6100 x 2500mm | 12200 x 2500mm |
| Laser Power (kW) | 3/6/12/20 k/W | 3/6/12 k/W | 3/6/12/20 k/W | 6/12/20/30 k/W | 12/20/30/60 k/W |
| Positioning accuracy (mm/m) | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| Re-positioning accuracy (mm) | +/- 0.03mm | +/- 0.03mm | +/- 0.03mm | +/- 0.03mm | +/- 0.03mm |
| Maximum Acceleration (g) | 1.5g | 2.5g | 1.5g | 1.5g | 1.5g |
| Maximum Linkage speed (m/min) | 120 m/min | 180 m/min | 110 m/min | 110 m/min | 110 m/min |
