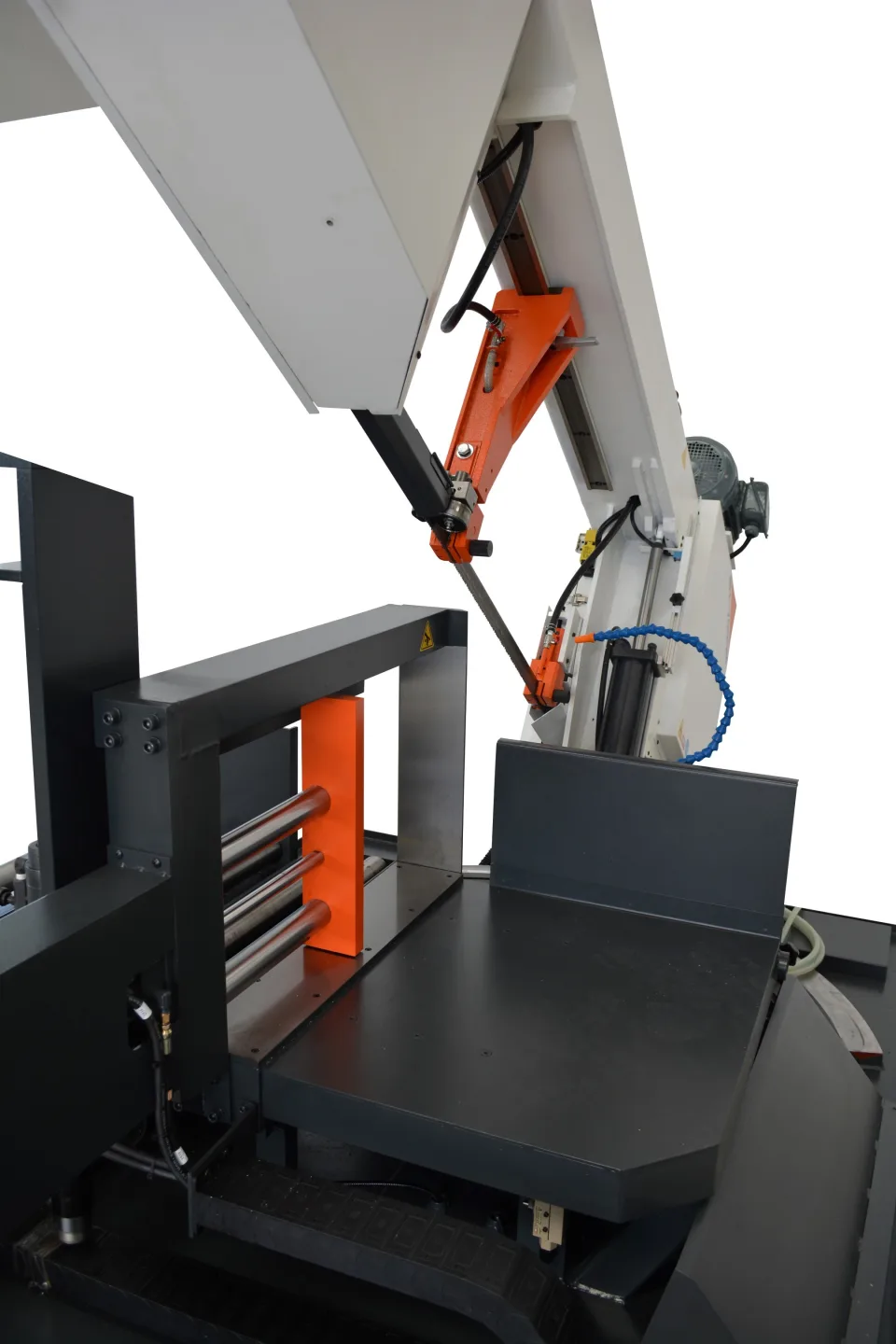

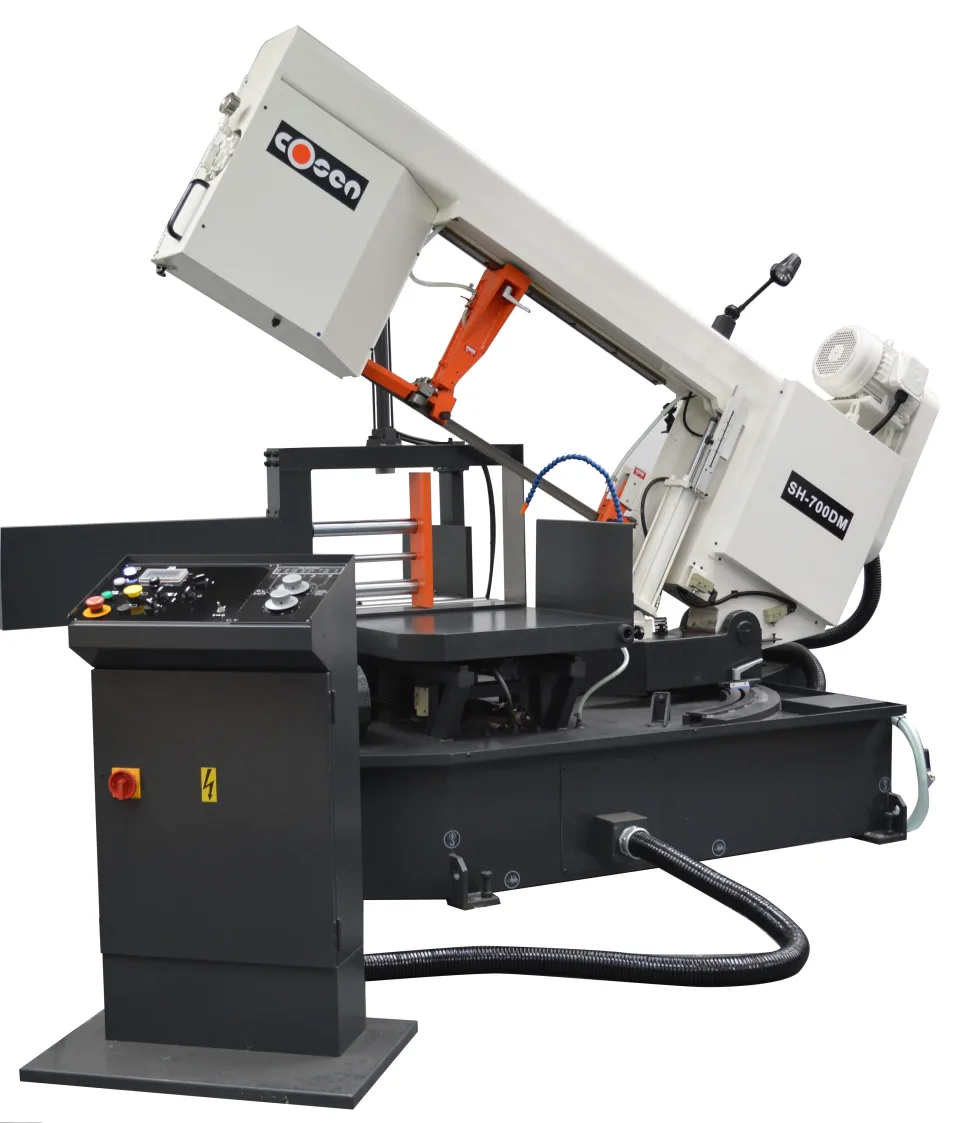

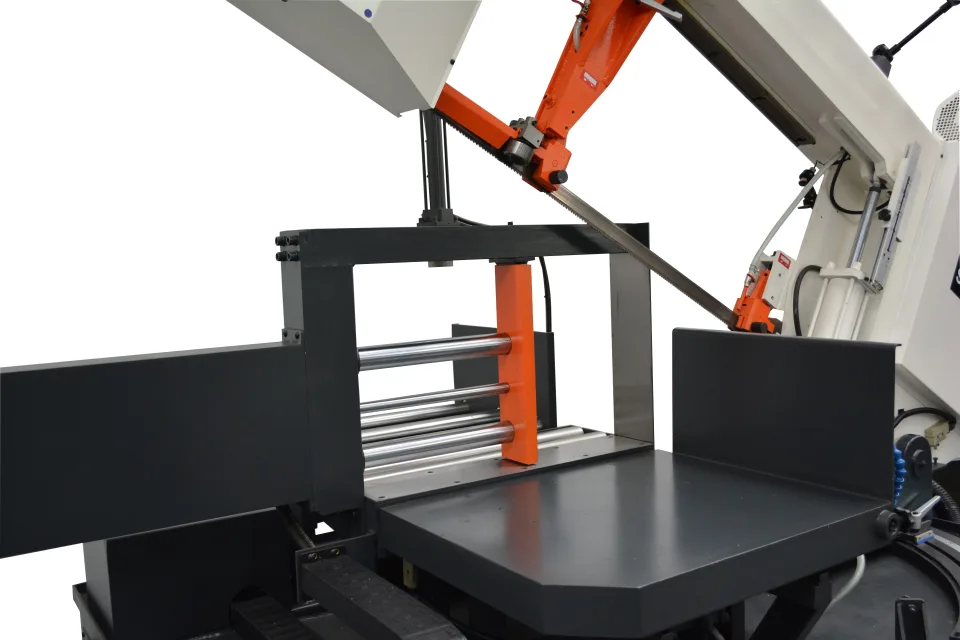

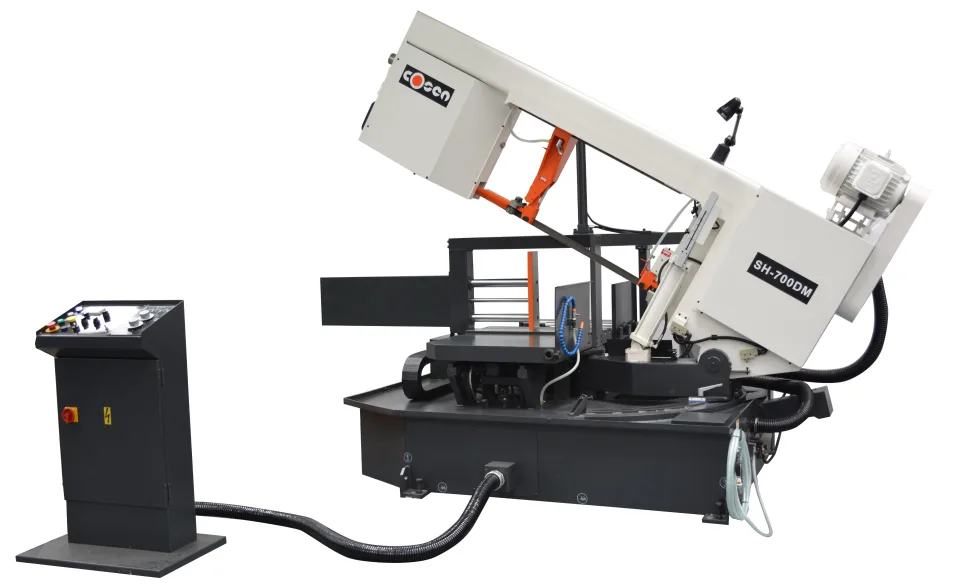

Cosen SH-700DM CE Semi Automatic Mitre Cutting Bandsaw
Double Mitre
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years in maximizing efficiency and quality in every step of designing, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen has also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.
The Cosen SH-700DM CE bandsaw is an industrial use semi-auto single swivel head mitring bandsaw. It has large capacity and has hydraulic lifting of the saw frame and a full stroke hydraulic vice. These features enable semi-automatic operation to securely hold the work piece, cut, and return the saw frame to a pre-set work height. The large, heavy-duty trunnion and swivel 'n' lock mechanism allows for up to plus 60 or minus 45 degrees of mitring capability.
Features:
- Quality Taiwanese Manufacturing
- Saw can mitre cut both ways (Double Mitre) up to 60 degrees
- HD pivot & locking system
- Rigid bow & wide base construction
- Hydraulic cylinder with semi automatic bow lift
- Specially designed base for mitre cutting from -45 to straight to +60 degrees
- Rigid guide arms mounted on extra wide precision ground dovetail slide
- Two additional bearings to support blade from the top
- Convenient operator control station
- Precision feed rate & feed pressure control via dual valve system
- Blade vibration dampener
- Work height selector
Standard Accessories:
- Infinitely variable blade speed control via frequency inverter
- Hydraulic vertical clamping vice
- Hydraulic blade tensioning device
- Carbide blade guides
- Power driven blade cleaning brush
- Complete coolant system
- Additional flushing hose for cleaning
- Work height selector
- Adjustable length stop
- Infeed roller
- Work light
Included Options By Scott Machinery
- Full stroke hydraulic top clamp with twin guide supports
- Variable vice pressure regulator
- High efficiency IE2 electric motor
Optional Accessories:
- Hydraulic powered chip conveyor
- 2m Heavy duty roller table ( max capacity 3000kg )
- 3m Powered roller table
- Laser line (indent only, must be factory fitted)
- Mist lubrication cutting system (indent only, must be factory fitted)
Safety features:
- Motor start interlock
- Latching emergency stop
- Safety interlock switch on blade guard
- Blade breakage detection
CE Conformity
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | SH-700DM | ||
|---|---|---|---|
| Capacity | Straight | +/- 45deg | + 60deg |
| Round capacity | 450mm | 450mm | 300mm |
| Width capacity (WxH) | 700 x 450mm | 520 x 450mm | 300 x 450mm |
| Blade speed range | 20 - 100 m/min | ||
| Blade size | 5790 x 41 x 1.3mm | ||
| Bundle height | 450mm | ||
| Bundle width | 700mm | ||
| Coolant pump | 0.18kW (1/4hp) (120L) | ||
| Hydraulic pump | 1.5kW (2hp) (45L) | ||
| Work height | 750mm | ||
| Motor power | 5.6kW (7.5hp), 3 Phase | ||
| Floor space (LxWxH) | 2700 x 3150 x 2720mm | ||
| Weight | 2400kg | ||
| Shipping | 19m3, 2500kg |
