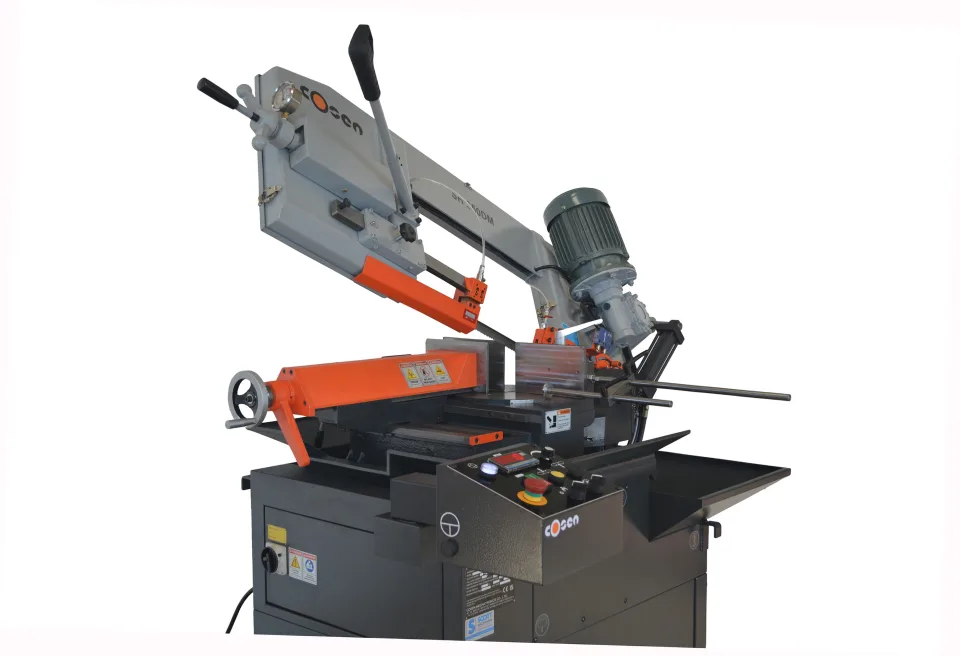

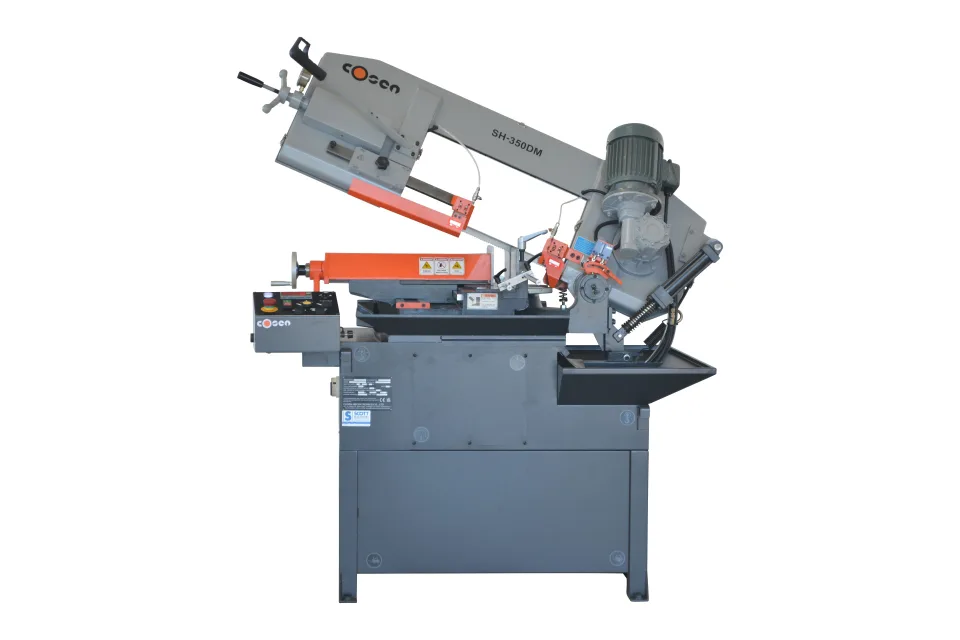

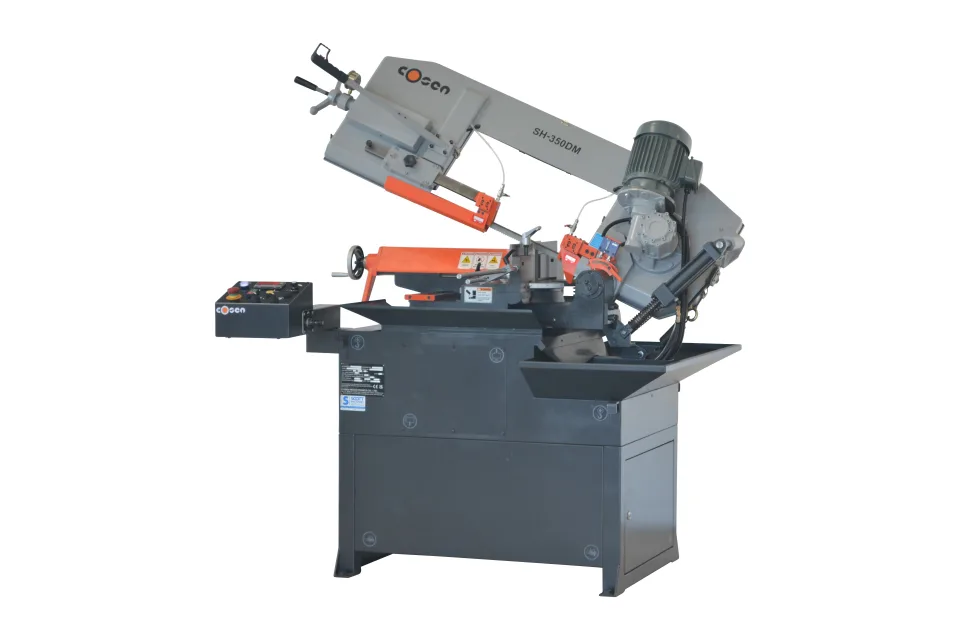

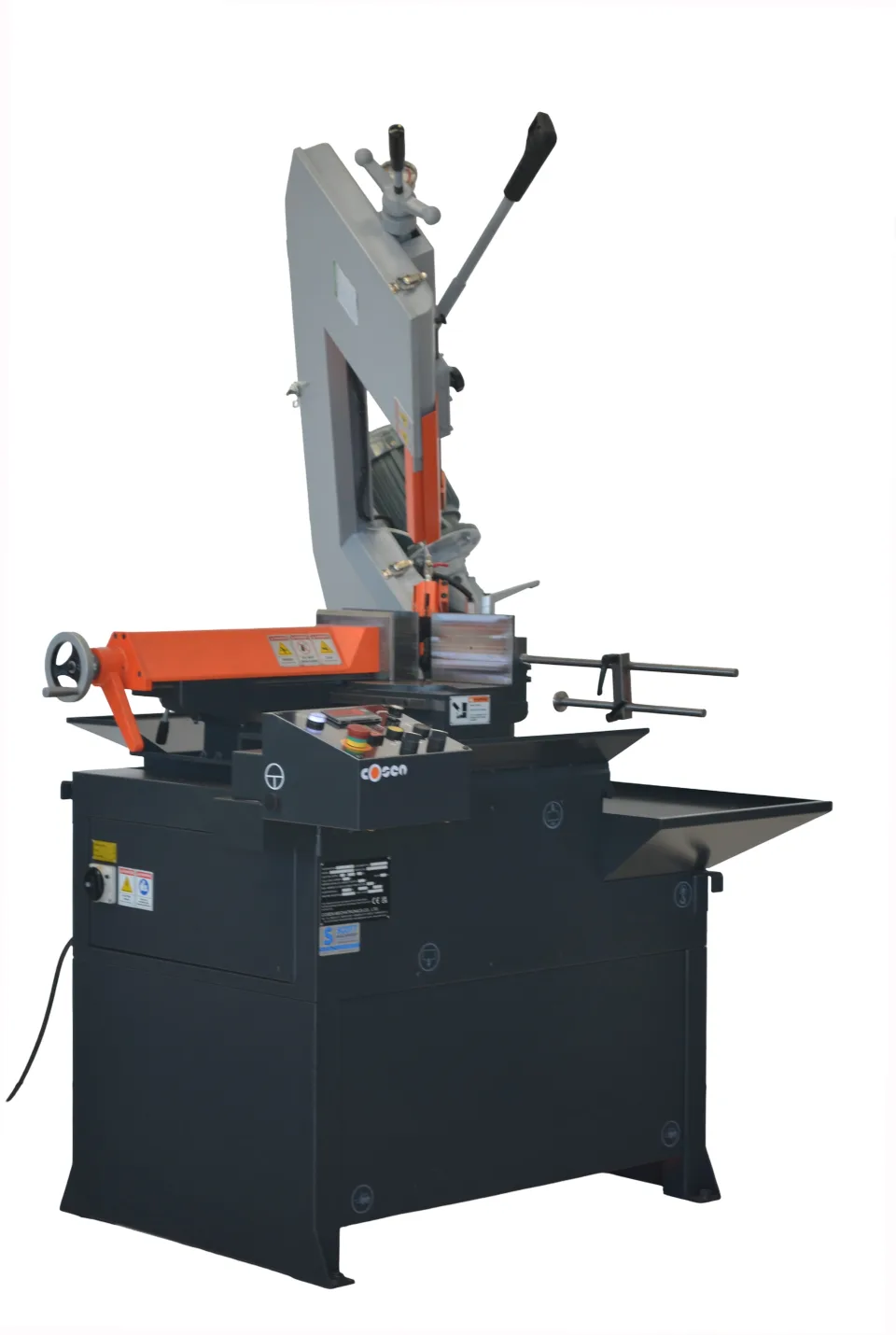

Cosen SH-350DM AutoCut Manual Double Mitre Bandsaw
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024.
The Cosen SH-350DM is a high quality Taiwanese built double mitre bandsaw, based on refined Italian design principles. This model combines robust construction with user friendly operation, offering smooth and accurate cutting performance for a wide range of materials. Ideal for general fabrication, maintenance workshops, educational facilities, and production environments requiring frequent mitre cutting. The swivel bow is mounted on a precision bearing system, allowing effortless pivoting from -45 to +60 degrees, complete with positional stops at 45 and 60 degrees for quick setup. The semi automatic bow lift returns the frame at the end of each cut, readying the machine for the next operation. The vice can be positioned on either side of the blade, providing full double mitre capability. A manual cast iron vice with "quick nip" lever allows for fast clamp/unclamp of workpieces, and a vice disengagement lever enables quick sliding for long range adjustment. The carbide blade guides with twin roller bearings ensure optimal support and longevity of the blade, complemented by a two point coolant system and a blade cleaning brush wheel to maintain cut accuracy. The SH-350DM offers hydraulic down feed control for consistent feeding and features a convenient operator control station for ease of use. Blade speed is variable, powered by a 415V three phase motor, and the integrated blade tension gauge ensures precise setup. Each machine is supplied with a RONTGEN 27mm bi-metal saw blade.
Features:
- Quality Taiwanese manufacturing based on Italian styling
- Double mitre cutting swivel bow mounted with a bearing system for smooth pivoting -45 to +60 degrees
- Convenient positional stops at 45 and 60 degrees
- Semi automatic bow lift at end of cut
- Vice position adjustable to either side of the blade for full double mitre capability
- Carbide blade guides with twin roller bearings for excellent blade support
- Manual cast iron vice with "quick nip" lever for fast clamp/unclamp
- Vice disengagement lever for rapid long range positioning
- Two point coolant system delivering coolant directly to the blade
- Blade cleaning brush wheel
- Hydraulic down feed control for consistent cutting pressure
- Convenient operator control station
- Variable blade speed driven by 415 V 3-phase motor
- Blade tension gauge for accurate setup
- Supplied with RONTGEN bi-metal 27 mm saw blade
Plus AutoCut Features:
- Bow hand lever with trigger start switch
- Separate hydraulic valve down feed control with large adjustment dial
- Two function switch for auto or manual pull down feed
Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
- Hydraulic gauge to ensure blade is not over tensioned
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | SH350DM Autocut | ||
|---|---|---|---|
| Capacity | 90 degrees | +/-45 degrees | +/-60 degrees |
| Round capacity | 260mm | 200mm | 140mm |
| Rectangular capacity | 200mm x 350mm | 200mm x 245mm | 140mm x 140mm |
| Blade speeds | 18 - 87 m/min (60 - 285 ft/min) | ||
| Blade specification | 3,055 x 27 x 0.9mm | ||
| Working table height | 1000mm | ||
| Motor power | 2 HP (1.5kW) | ||
| Weight (Net) | 460kg | ||
| Floor space W x D x H | 1200mm x 1850mm x 2000mm | ||
| Shipping cubic m / kg | 3.8m / 550kg |
