YSD PPTK Series Hydraulic Pressbrake
With Delem DA-41 Control & DSP Laser
Product overview
About this machine.
YSD, the manufacturing company for LVD Belgium, have developed, using technology and experience gained from LVD, a range of pressbrakes and guillotines that has some of the best design features and componentry in its class. These machines, primarily developed for the European market, incorporate many internationally sourced components to achieve the stability, accuracy, reliability and performance expected from a quality machine. The frames have been designed using Uni-Graphics Finite Element Analysis (FEA) software, to ensure acceptable distortion under maximum load. The side frames are fully welded to the bottom beam creating a solid steel structure and the result is an extremely rigid frame.

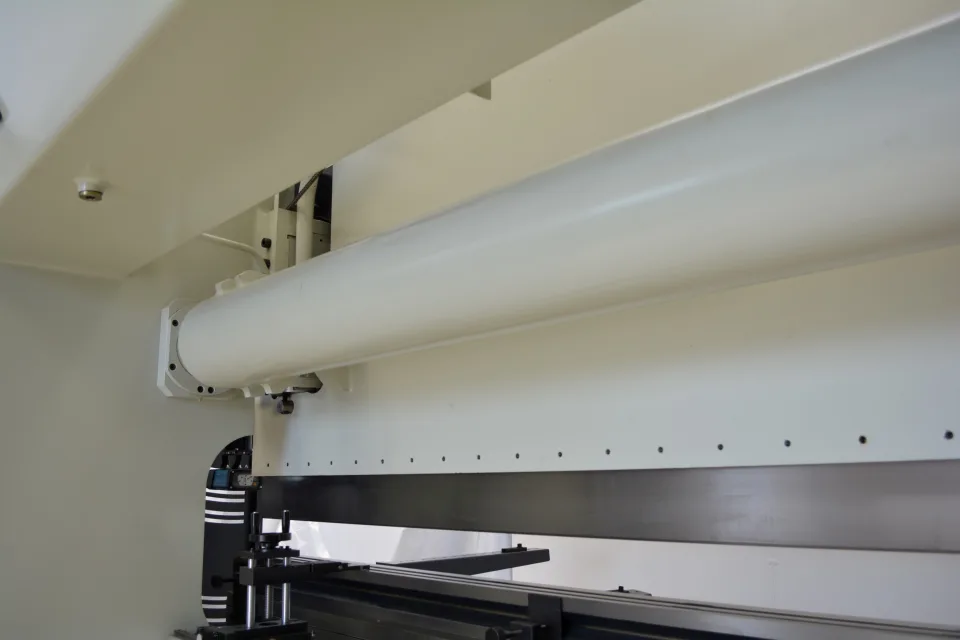

The YSD PPTK series is a proven NC controlled press-brake that is a top seller throughout New Zealand. This heavy duty, no frills machine features a significantly larger torsion bar than many similar machines. With its robust frame and basic controller, along with time proven Rexroth, Vickers or Bosch hydraulic components and Schnieder electrical components, the PPTK series is known as the "Hilux" of New Zealand press-brakes. They are built tough, durable and strong for years of reliable service.
Features:
- Delem DA-41T programmable NC control (Programmable in degrees)
- Complex shapes can be achieved in high speed by mode selection enabling box folding or having the back gauge close to the tool
- NC controlled back gauge with ball screws
- NC controlled bending depth adjustment programmable in degree's
- Manually adjustable table crowning
Standard Accessories:

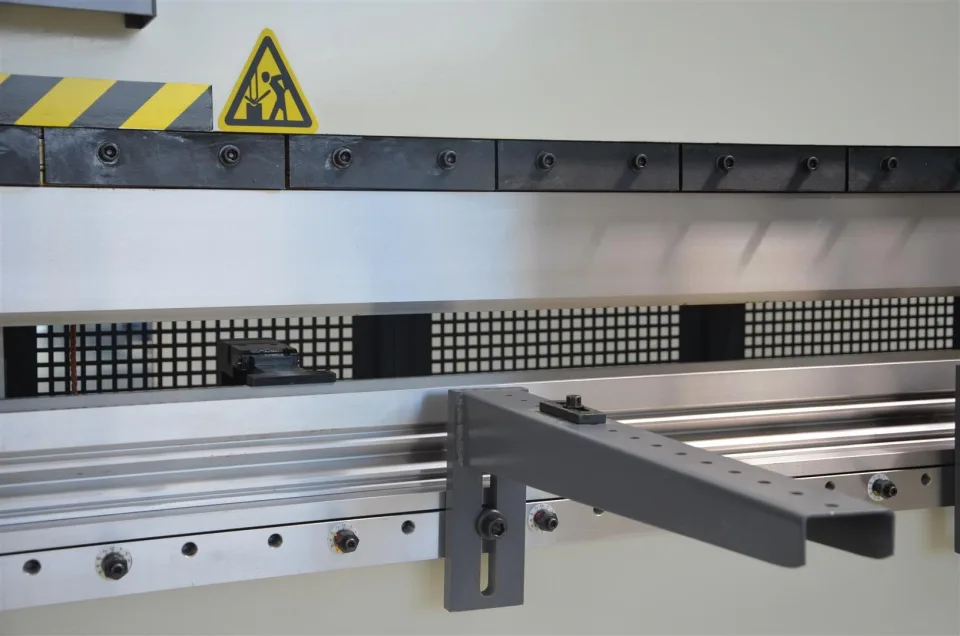

- Two front support arms
- Two vertical hand wheel adjustable back gauge fingers ( Manual R axis )
- Various tooling options available depending on the Pressbarkes capacity and throat depth.
- Electric motor to IE2 motor efficiency standards
- Single slot in table for optional Euro tooling
- ISO9001 Norm
- NB: Supplied without Hydraulic oil
Components:
- Valves by Rexroth, Vickers or Bosch
- Pump by Nachi of Japan
- Seals by NOK of Japan or Merkel of Germany
- Main electric components from Telemecanique of France
- Pressure gauge by HAWE of Germany

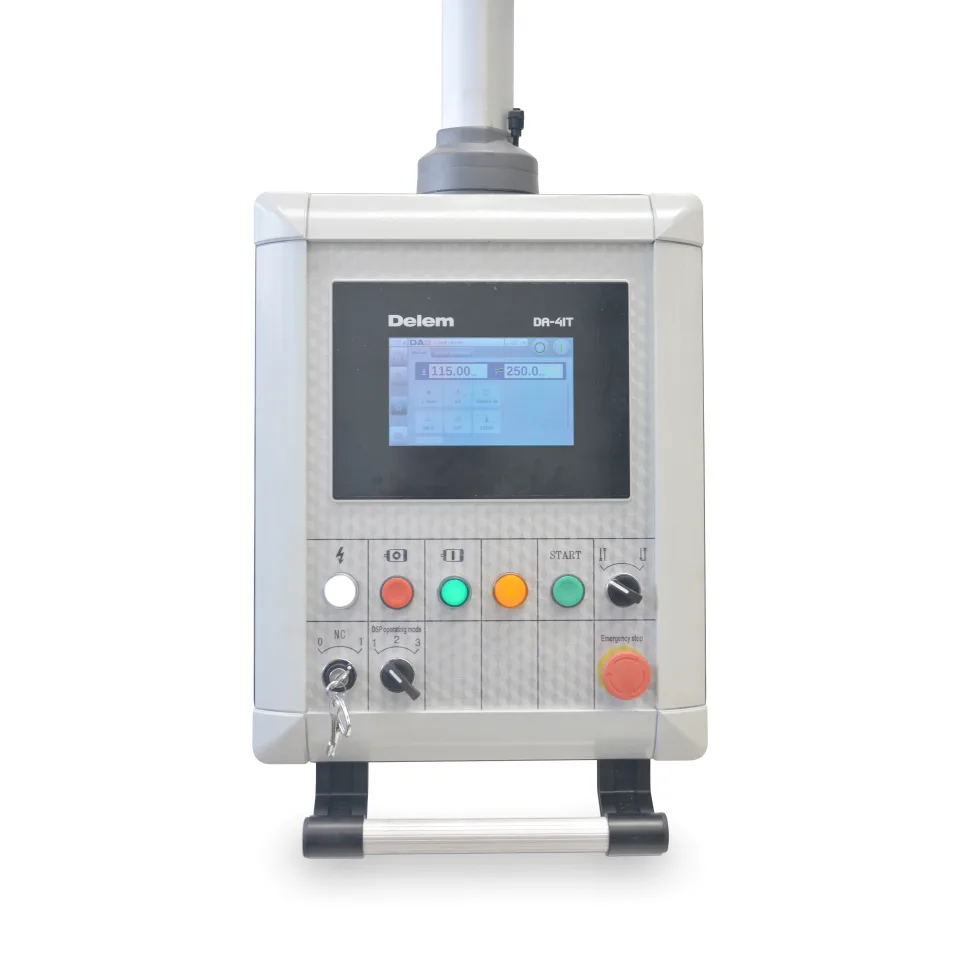

Delem DA-41T NC control:
The DA-41T NC control provides a complete solution for conventional press brake applications for 2 axes.
- It offers a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on "state of the art" electronics.
The bright touchscreen LCD display offers a clear and easy control system with easy numerical programming, having angle, tool and material parameters on hand, can be done in a direct table overview. The bend parameters can be selected via a user-friendly cursor manipulation.
- Angle programming
- Tool programming
- Back gauge control
- Y-axis control
- Up to 100 programs
- Up to 25 bends per program
Safety Features:
- DSP Laser guard (Type 4 safety device with visible laser emission)
- Interlocked side and rear guarding with Schneider XPS safety relay
- Rear safety rest button after rear or side guarding interlocks are broken
- Remote foot pedal, with latching emergency stop
- Main power isolation switch with lockout function
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Specification | Unit | 40 Ton | 50 Ton | 70 Ton | 100 Ton | 135 Ton | 165 Ton | 200 Ton | 250 Ton |
|---|---|---|---|---|---|---|---|---|---|
| Pressing force | KN | 400 | 500 | 700 | 1000 | 1350 | 1650 | 2000 | 2500 |
| Working Length | m | 1.25/2/2.5 | 2 | 2.5/3/4 | 2.5/3/4 | 3/4/6 | 3/4/6 | 3/4 | 3 |
| Stroke of ram | mm | 100 | 100 | 100 | 130 | 130 | 150 | 150 | 200 |
| Daylight | mm | 300 | 300 | 300 | 310 | 310 | 350 | 400 | 425 |
| Std throat | mm | 200 | 200 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor power | kw | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
