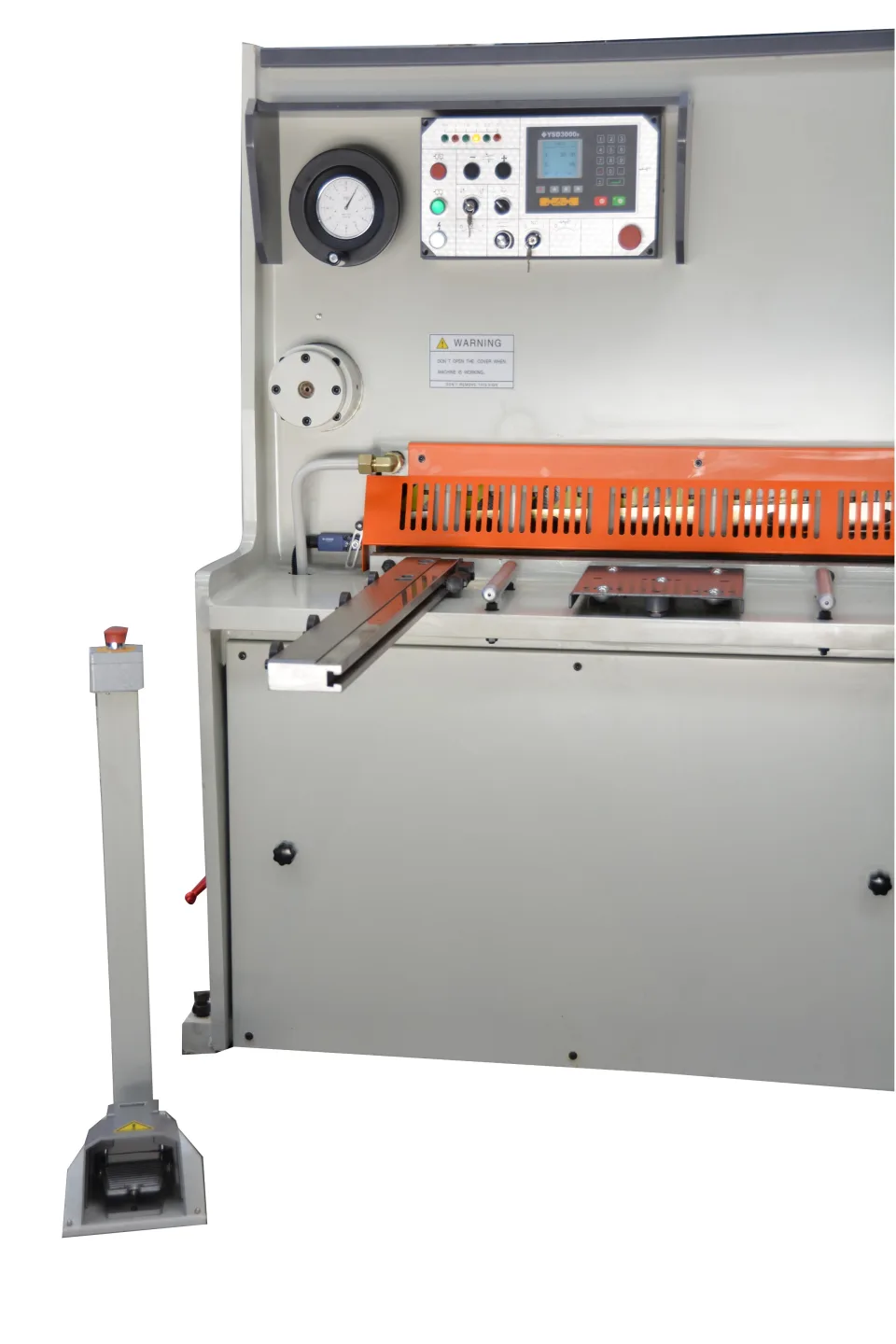

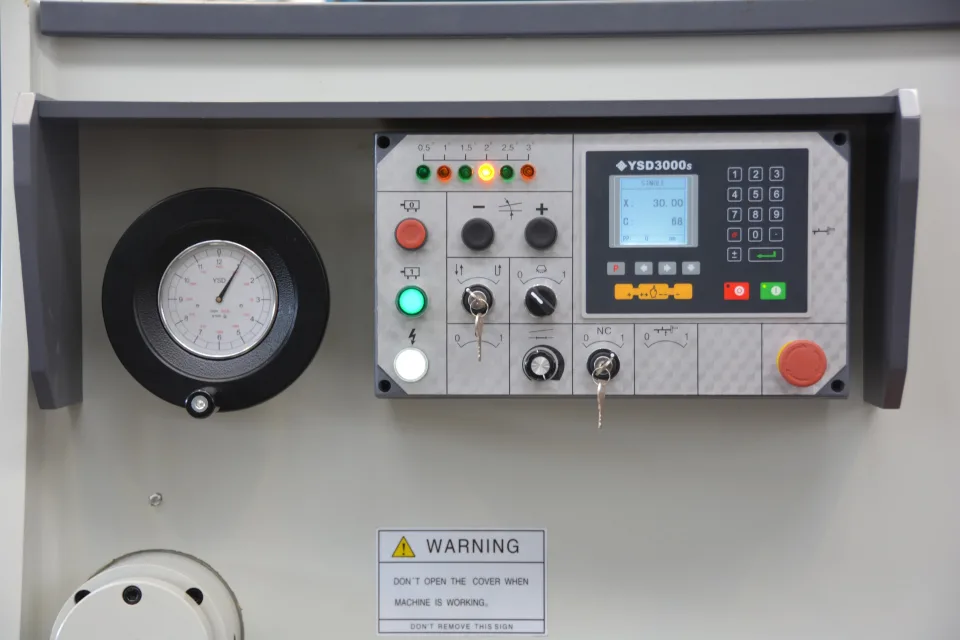

YSD HGO Series Hydraulic Guillotines
Adjustable Rake Angle
Product overview
About this machine.
YSD, the manufacturing company for LVD Belgium, have developed, using technology and experience gained from LVD, a range of pressbrakes and guillotines that has some of the best design features and componentry in its class. These machines, primarily developed for the European market, incorporate many internationally sourced components to achieve the stability, accuracy, reliability and performance expected from a quality machine. The frames have been designed using Uni-Graphics Finite Element Analysis (FEA) software, to ensure acceptable distortion under maximum load. The side frames are fully welded to the bottom beam creating a solid steel structure and the result is an extremely rigid frame.
The YSD HGOK series of guillotines are proven NC controlled, variable rake machines that are top sellers throughout the world. With its robust frame and basic controller, along with time proven Rexroth, Vickers or Bosch hydraulic components and Schnieder electrical components, they are built tough.
Features:
- NC controlled back gauge
- Hydraulically adjustable rake angle
- Hand wheel blade clearance adjustment
- Heavy duty frame
- Digital display
- Powered backgauge
- High quality four sided blades
- Adjustable cutting stroke for speed
- Shadow-line lighting
- Foot switch on cord
- Front support arm with scale
Optional:
- Blades for cutting stainless steel
- NC programmable back gauge control
Safety Features:
- Remote foot control pedal with emergency stop
- Latching emergency stop buttons
- Blade protection guard with micro-switch
- Fixed guarding with latching photoelectric safety beams
- Main isolation switch with lockout
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | HGO 25/6 | HGO 31/6.35 | HGO 40/6 | HGO 40/6.35 |
|---|---|---|---|---|
| Shearing capacity (mild steel) | 6mm | 6.35mm | 6mm | 6.35mm |
| Stainless steel | 3mm | 3mm | 3mm | 3mm |
| Cutting force (max) | 170 kN | 145 kN | 170 kN | 170 kN |
| Cutting length | 2500mm | 3100mm | 4000mm | 4000mm |
| Rake angle adjustment | 0.5 - 2.5 degrees | 0.5 - 3.0 degrees | 0.5 - 2.0 degrees | 0.5 - 2.5 degrees |
| Strokes per minute | 14 - 45 | 12 - 45 | 10 - 45 | 10 - 45 |
| Back gauge range | 750mm | 750mm | 750mm | 750mm |
| Number of holddowns | 13 | 17 | 22 | 22 |
| Volume of oil tank | 110 L | 110 L | 200 L | 200 L |
| Motor | 7.5 kw | 7.5 kw | 7.5 kw | 7.5 kw |
| Machine weight | 4700 kg | 5500 kg | 6000 kg | 8000 kg |
| Length | 3445mm | 4045mm | 4945mm | 4995mm |
| Width | 1727mm | 1737mm | 1737mm | 1862mm |
| Height | 1615mm | 1750mm | 1745mm | 1900mm |
