Universal K72 Series Direct Mounting 4 Jaw Lathe Chucks
Product overview
About this machine.
Universal lathe chucks covers a range of high-quality lathe chucks, manufactured for accuracy, durability, and dependable performance in the workshop. Both universal self-centering chucks and four-jaw independent chucks are available, covering everything from fast general purpose work holding through to complex setups requiring precise adjustment. Built to exacting standards with quality materials and careful machining, these chucks provide good service life and reliability across a wide variety of applications.
Universal four-jaw independent chucks feature separately adjustable jaws, allowing irregular, square, or offset workpieces to be held securely. They are essential for applications requiring precision centering or asymmetrical machining, offering maximum flexibility for more complex jobs. These direct mount options do not require a backing plate.
Features
- Independent four jaws move individually for maximum versatility
- Reversible jaws for internal and external gripping
- Capable of holding irregular, square, rectangular, or offset workpieces
- Precision machined body for accuracy and stability
- Hardened and ground jaws and working surfaces for durability
- Strong clamping force for heavy-duty machining applications
- Suitable for a wide range of turning operations requiring precision adjustment
- Camlock mounting
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Universal | Independant 4 jaw | Direct mount | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

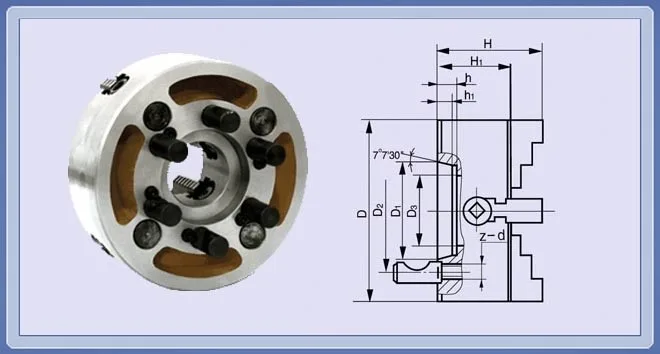

| Size Dia mm | Camlock | D1 | D2 | Bore | H | H1 | h | h1 | z-d | Weight | Price Excl GST |
| 200 | D1-4 | 63.5 | 82.6 | 56 | 107 | 75 | 13 | 10 | 3xM10 | 15 kg | $399.00 |
| 200 | D1-5 | $405.00 | |||||||||
| 250 | D1-6 | 106.3 | 133.4 | 75 | 102 | 80 | 16 | 13 | 6xM16 | 23 kg | $480.00 |
| 320 | D1-6 | 106.7 | 133.4 | 95 | 134 | 90 | 16 | 13 | 6xM16 | 40 kg | $580.00 |
| 320 | D1-8 | 139.7 | 171.4 | 95 | 134 | 90 | 18 | 14 | 6xM20 | 43 kg | $620.00 |
| 400 | D1-8 | 139.7 | 171.4 | 125 | 143 | 95 | 18 | 14 | 6xM20 | 55 kg | $1,075.00 |
| 400 | D1-11 | 196.8 | 235 | 125 | 143 | 95 | 20 | 16 | 6xM22 | 68 kg | $1,165.00 |
| 500 | D1-8 | 139.7 | 171.4 | 136 | 161 | 106 | 14 | 6xM22 | 102 kg | POA | |
| 500 | D1-11 | 196.8 | 235 | 160 | 161 | 106 | 20 | 16 | 6xM22 | 106 kg | $1,720.00 |
| 500 | D1-15 | 285.7 | 330.2 | 160 | 161 | 106 | 21 | 17 | 6xM24 | 106 kg | POA |
| 630 | D1-11 | 196.8 | 235 | 180 | 180 | 118 | 20 | 16 | 6xM22 | 159 kg | POA |
