Universal K12 Series Self Centring 4 Jaw Lathe Chucks
Product overview
About this machine.
Universal lathe chucks covers a range of high-quality lathe chucks, manufactured for accuracy, durability, and dependable performance in the workshop. Both universal self-centering chucks and four-jaw independent chucks are available, covering everything from fast general purpose work holding through to complex setups requiring precise adjustment. Built to exacting standards with quality materials and careful machining, these chucks provide good service life and reliability across a wide variety of applications.
Universal four-jaw self centering chucks are designed for quick and accurate work holding, with all jaws moving simultaneously on a scroll to grip, allowing square, round, or hexagonal workpieces to be held securely. They are essential for applications requiring precision centering.
Features:
- Four self centering jaws moving simultaneously to grip centrally
- Complete with with two sets of jaws (internal and external)
- Chucks with a "C" in the model name have bolt-on reversible jaws for internal and external gripping
- Capable of holding regular, square, round or hexagonal
- Precision machined body for accuracy and stability
- Hardened and ground jaws and working surfaces for durability
- Strong clamping force for heavy-duty machining applications
- Suitable for a wide range of turning operations.
- Backing plates available to suit various mounting options.
Two styles:
- 2 sets of jaws int/ext
- C = bolt on type reversible jaws
Note:
- Some chucks that are "in stock" may be either bolt on jaws or two sets of jaws.
- For indent chucks we can specify the type that you require.
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Universal | Self centering 4 Jaw | ||||||||
|---|---|---|---|---|---|---|---|---|---|

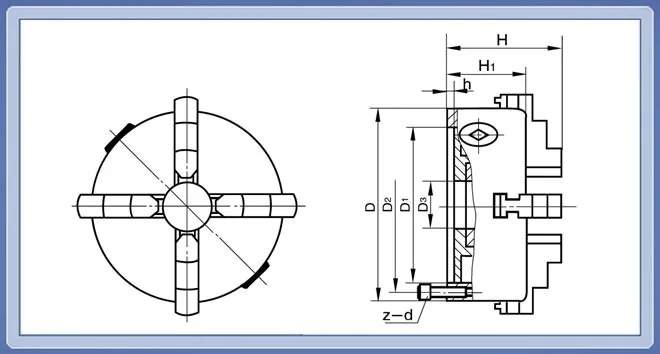

| Size Dia mm | D1 | D2 | Bore | H | H1 | h | z-d | Weight | Price Excl GST |
| Solid Jaws | |||||||||
| 125 | 95 | 108 | 30 | 84 | 58 | 4 | 3xM8 | 5 kg | POA |
| 160 | 130 | 142 | 40 | 95 | 65 | 5 | 3xM8 | 8 kg | $425.00 |
| 200 | 165 | 180 | 65 | 109 | 75 | 5 | 3xM8 | 15 kg | POA |
| 250 | 206 | 226 | 80 | 130 | 80 | 5 | 3xM12 | 23 kg | POA |
| 325 | 272 | 296 | 100 | 154.5 | 80 | 5 | POA | ||
| Bolt on type Jaws | |||||||||
| 325C | 272 | 296 | 100 | 154.5 | 96 | 12 | 3xM16 | 45 kg | $1,099.00 |
| 380C | 325 | 350 | 135 | 156.5 | 98 | 6 | 3xM16 | 61 kg | POA |
