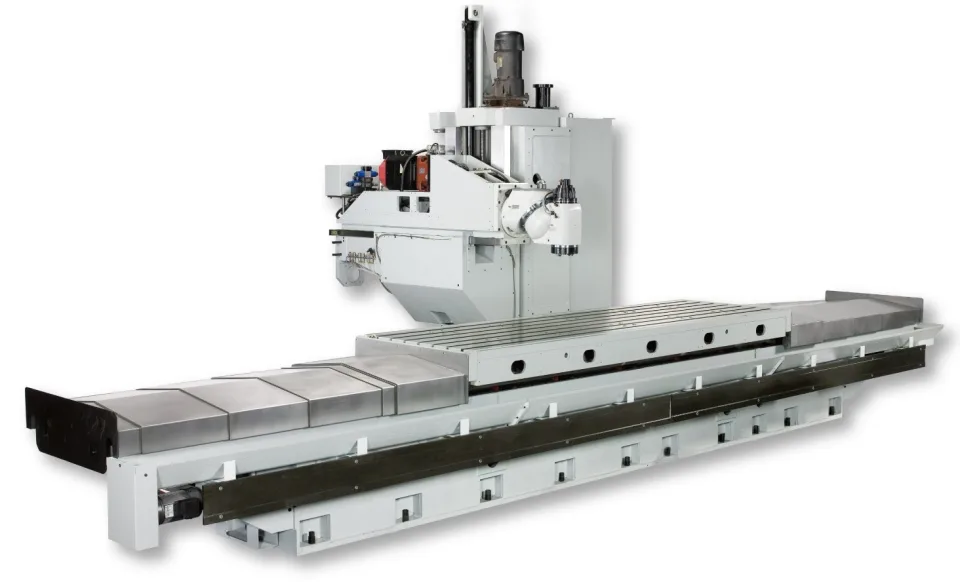

Sanco SBM Series CNC Universal Bed Type Machining Centres
POA
WEB-SANCO UNIVERSAL | Prices exclude GST
Product overview
About this machine.
The overall sturdy design ensures stability, torsional rigidity and extremely high table load options. Major components are manufactured from heavily ribbed and reinforced Meehanite cast iron. The ballscrews are pre-loaded and pretensioned and the table runs on roller style linear guides to ensure maximum rigidity whilst ensuring precision positioning and accuracy due to the low friction. The vertical axis is hydraulically counter balanced for long term precision and smoothness.
Standard features:

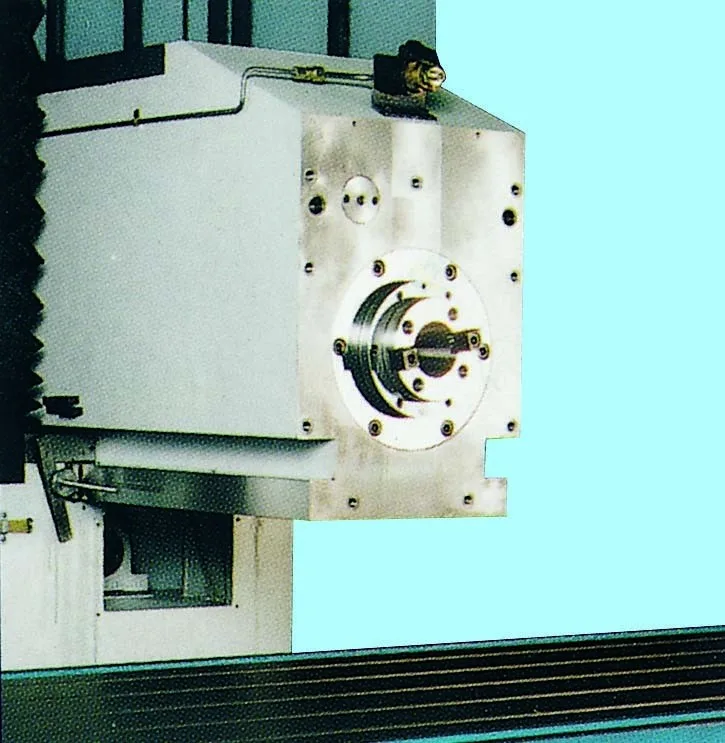

- Horizotnal Spindle
- 2 Step auto change gearbox
Optional:

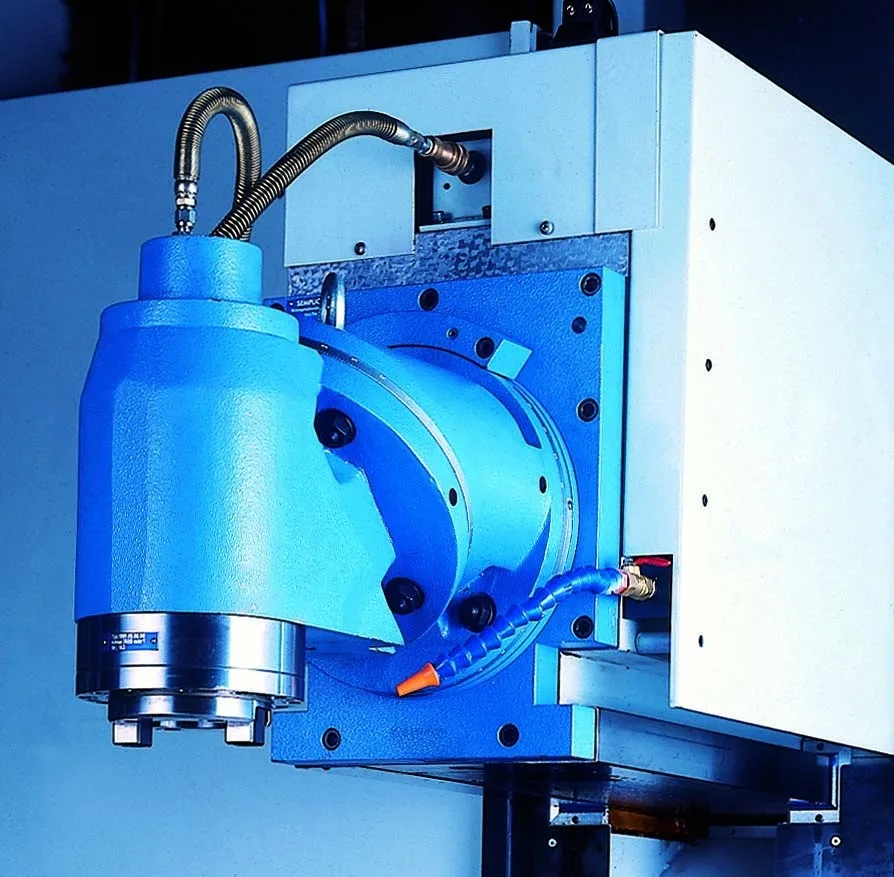

- Manual universal milling head

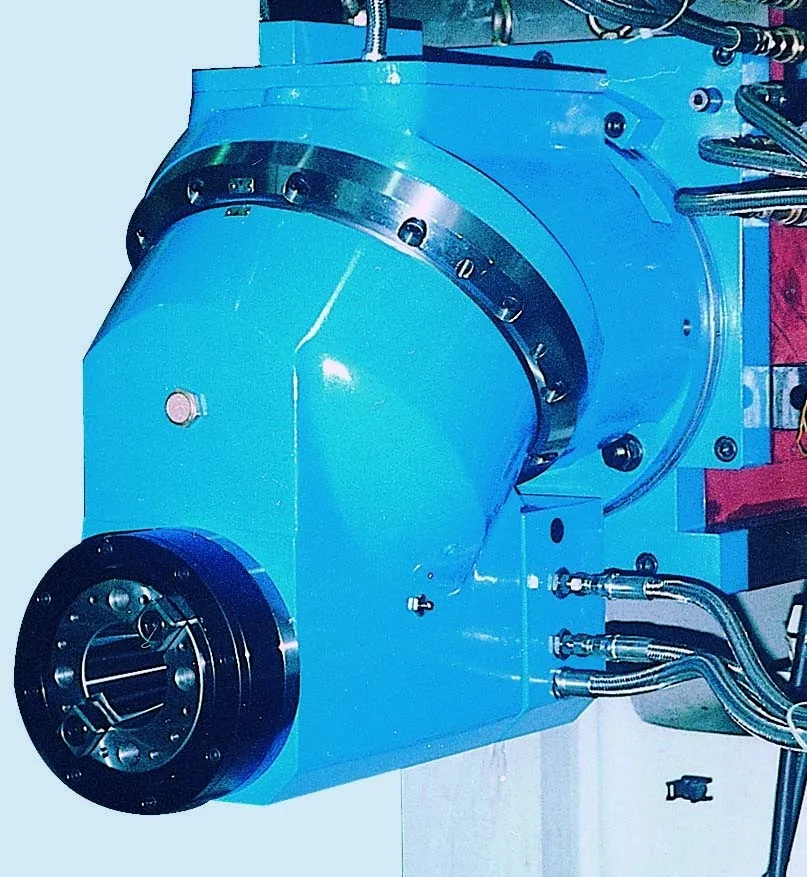

- Auto 2 position universal milling head
- Automatic tool changer option (ATC)Manual indexing table
- CNC indexing table
- Linear scale feedback
- Spindle coolant system
Control options:
- Fanuc / Siemens / Heidenhain
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Unit | SBM-2000L | SBM-2600L | SBM-3000L | SBM-3500L |
|---|---|---|---|---|---|
| Table | |||||
| Table size | mm | 2100 x 1000 | 2700 x 1000 | 3100 x 1000 | 3600 x 1000 |
| Table load (max) | kg | 5000 | 6000 | 7000 | 8000 |
| Travel | |||||
| X Axis | mm | 2000 | 2600 | 3000 | 3500 |
| Y Axis | mm | 1200 (1500) | 1200 (1500) | 1200 (1500) | 1200 (1500) |
| Z Axis | mm | 1000 | 1000 | 1000 | 1000 |
| Horizontal Spindle | |||||
| Taper | BT50 | BT50 | BT50 | BT50 | |
| Speed | rpm | 4000 (6000) | 4000 (6000) | 4000 (6000) | 4000 (6000) |
| Power Output (max) | kW (HP) | 15/18.5 (22/26) | 15/18.5 (22/26) | 15/18.5 (22/26) | 15/18.5 (22/26) |
| Feedrate | |||||
| Cutting | mm/min | 1 - 5000 | 1 - 5000 | 1 - 5000 | 1 - 5000 |
| Miscellanous | |||||
| Weight | kg | 10,500 | 12,000 | 13,000 | 14,000 |
