Sanco SHM Quill Series CNC Horizontal Boring & Milling Machines
POA Let us know your requirements
WEB-SANCO SHM QUILL | Prices exclude GST
Product overview
About this machine.
Sanco CNC horizontal boring & milling machines have earned themselves a reputation for quality and precision from customers worldwide, underlined by an impressive rate of repeated purchases.

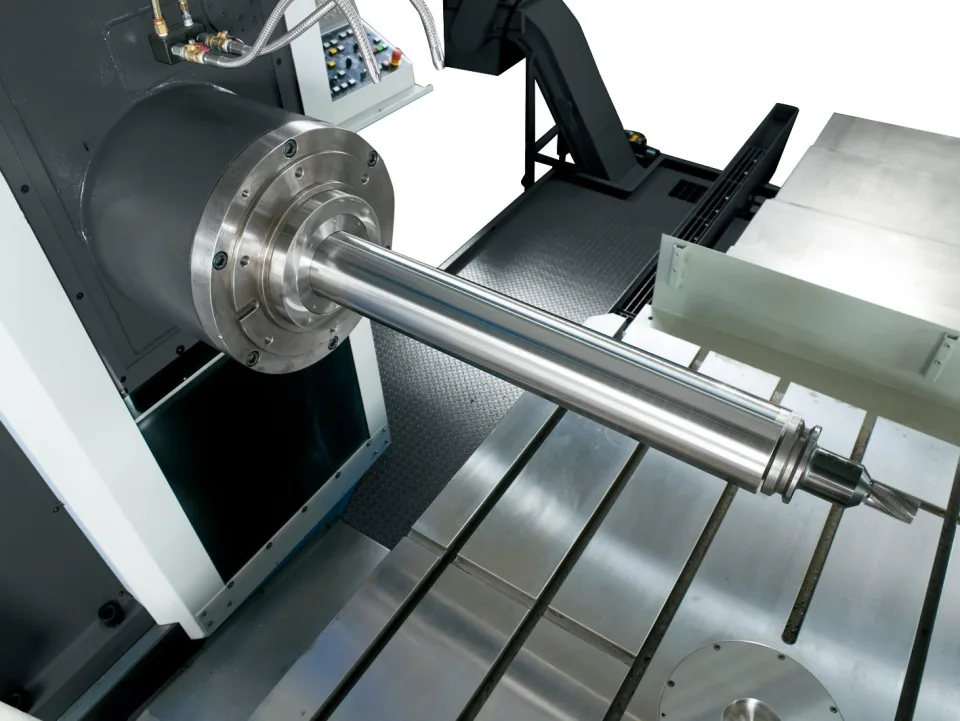

The extendable quill allows cutting at the centre of the table, the heavy duty direct drive rotary table offers exceptional stability, that can handle loads of up to 7,000kg and can index to 0.001 degree increments. It has a heavy duty locking mechanism that automatically engages at the 90 degree increments.
Standard
- Extendable Spindle (Quill or W-axis)

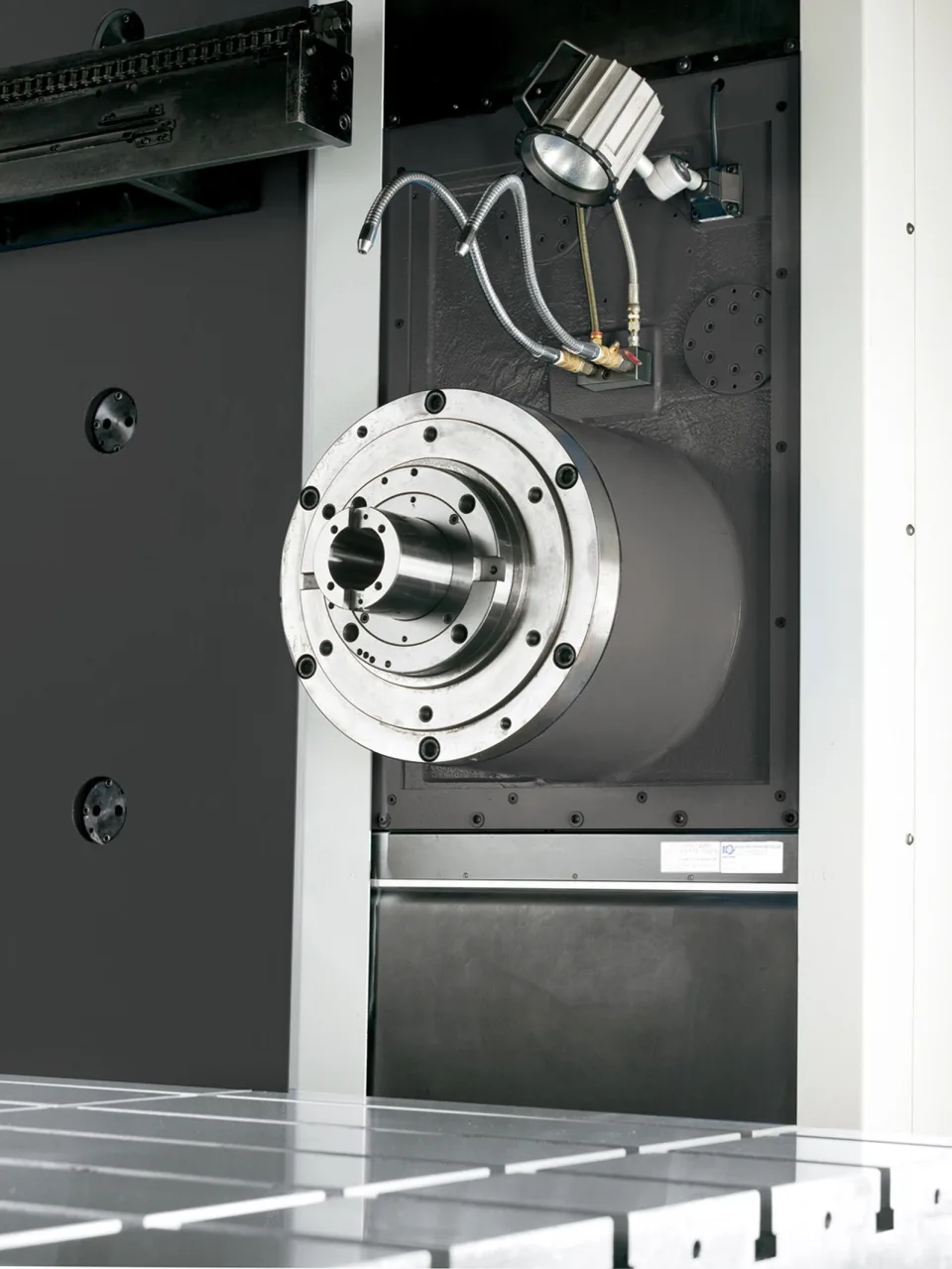

- German precision spindle (110mm diameter)
Features

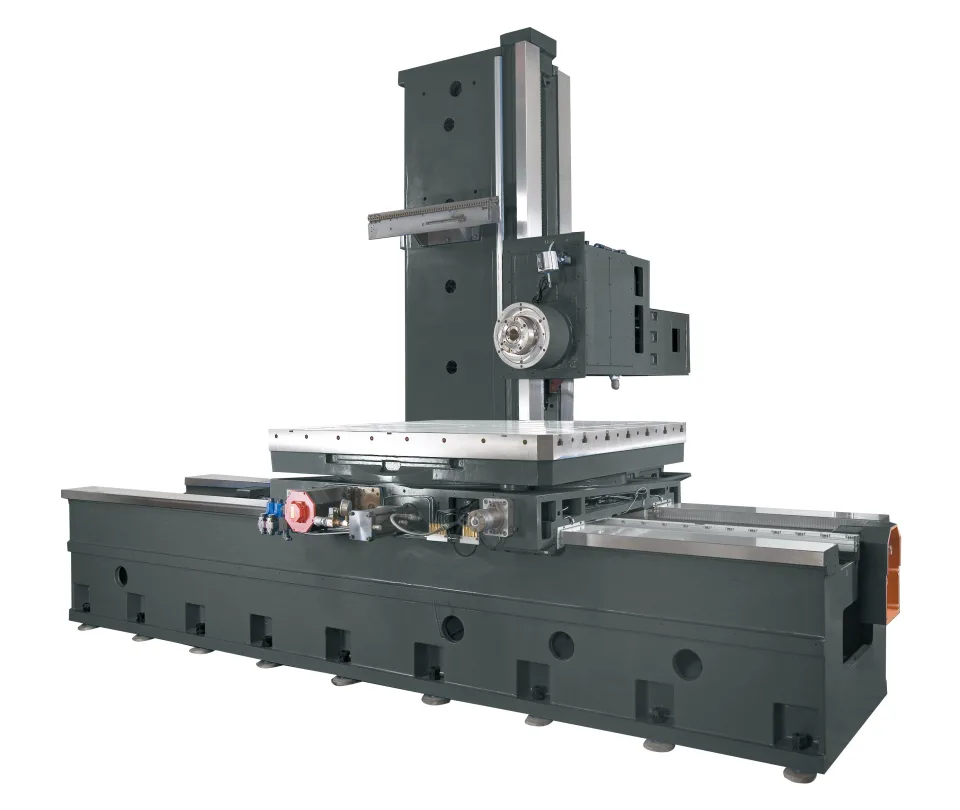

- Movable column design
(except SHM-11020RF)
- Fixed column design
(SHM-11020RF)

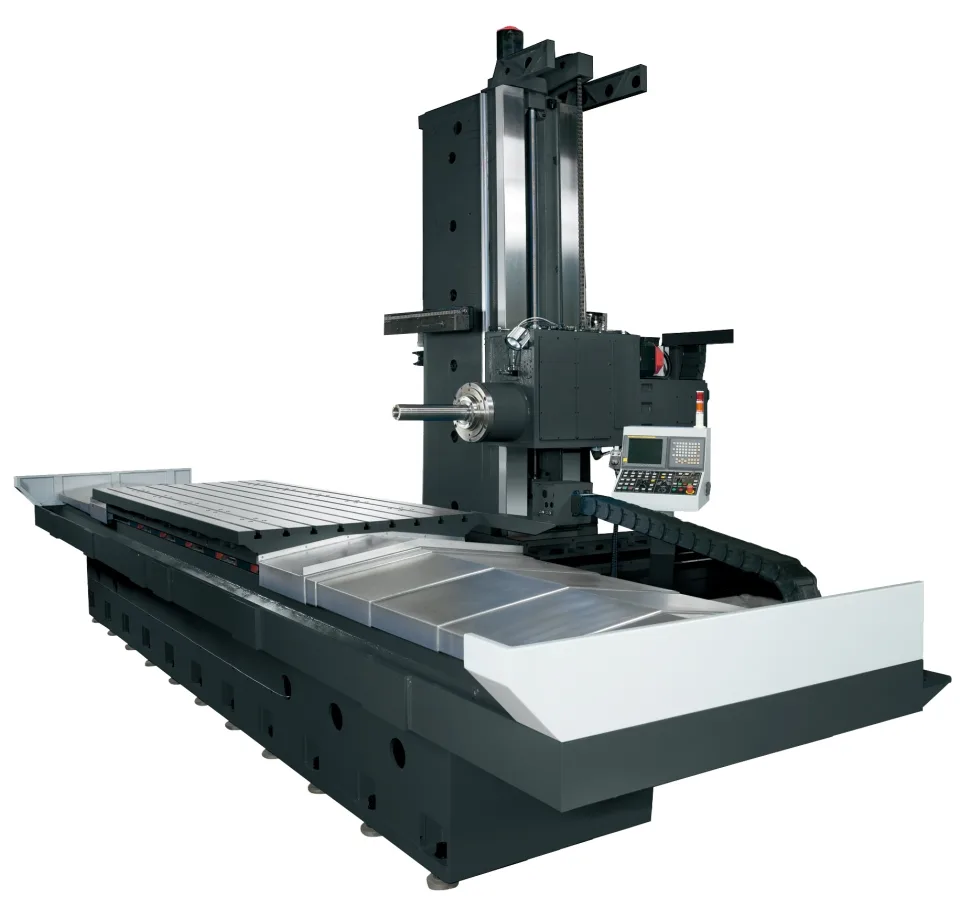

- Milling style (no rotary table, large milling table)
(SHM-11020 / 11030 / 11040)
- 90 degree precision rotary table locking pin
(SHM-11025R / 11030R / 11040R)
Optional
- Extended Y axis 2000/2300/2500mm
(except SHM-11020RF)
- Extended Z axis 1700mm
(1400mm SHM-11020RF)
- Extended W axis 700mm
(except SHM-11020RF)
- Automatic tool changer (ATC)
- Milling heads
- Table guarding
- Coolant through spindle (CTS)
- Work and tool measuring
- Control options
Fanuc / Siemens / Heidenhain
Configuration
- X Axis = Longitudinal travel
- Y Axis = Vertical travel
- Z Axis = Column towards table
- B Axis = Rotary table angle
- W Axis = Quill or spindle extension
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Unit | SHM-11025R | SHM-11030R | SHM-11040R | SHM-11020RF | SHM-11020 | SHM-11030 | SHM-11040 |
|---|---|---|---|---|---|---|---|---|
| Table size | mm | 1400 x 1600 | 1400 x 1600 | 1400 x 1600 | 1000 x 1200 | 2000 x 1400 | 3000 x 1400 | 4000 x 1400 |
| Travels | ||||||||
| X Axis | mm | 2500 | 3000 | 4200 | 2000 | 2160 | 3200 | 4200 |
| Y Axis | mm | 1800 | 1800 | 1800 | 1600 | 1800 | 1800 | 1800 |
| Z Axis | mm | 1500 | 1500 | 1500 | 1200 | 1500 | 1500 | 1500 |
| W Axis | mm | 500 | 500 | 500 | 400 | 500 | 500 | 500 |
| Spindle | ||||||||
| Diameter | mm | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
| Speed | rpm | 5 - 2500 | 5 - 2500 | 5 - 2500 | 5 - 2500 | 5 - 2500 | 5 - 2500 | 5 - 2500 |
| Spindle Taper | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 | |
| Feed Rate | ||||||||
| Rapid Feed X/Y/Z | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
| Rapid Feed W | mm/min | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Cutting Feed (max) | mm/min | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Motor | ||||||||
| 30min / Cont | kW (HP) | 18.5/15 (26/22) | 18.5/15 (26/22) | 18.5/15 (26/22) | 18.5/15 (26/22) | 18.5/15 (26/22) | 18.5/15 (26/22) | 18.5/15 (26/22) |
| Axis X/Y/Z/W/B | kW | 7/7/9/1.8/4.2 | 7/7/9/1.8/4.2 | 7/7/9/1.8/4.2 | 7/7/7/1.8/4.2 | 7/7/9/1.8 | 7/7/9/1.8 | 7/7/9/1.8 |
| Miscellaneous | ||||||||
| Machine Dimensions | mm | 6870 x 5510 x 4300 | 7070 x 6010 x 4300 | 7070 x 7220 x 4300 | 7000 x 5200 x 4100 | 6870 x 5520 x 4300 | 7070 x 7630 x 4300 | 7070 x 10085 x 4300 |
| Weight (approx) | kg | 32000 | 33000 | 34000 | 21000 | 31000 | 33000 | 35000 |
