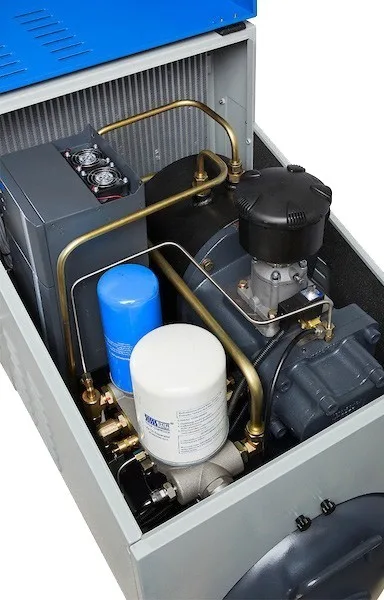

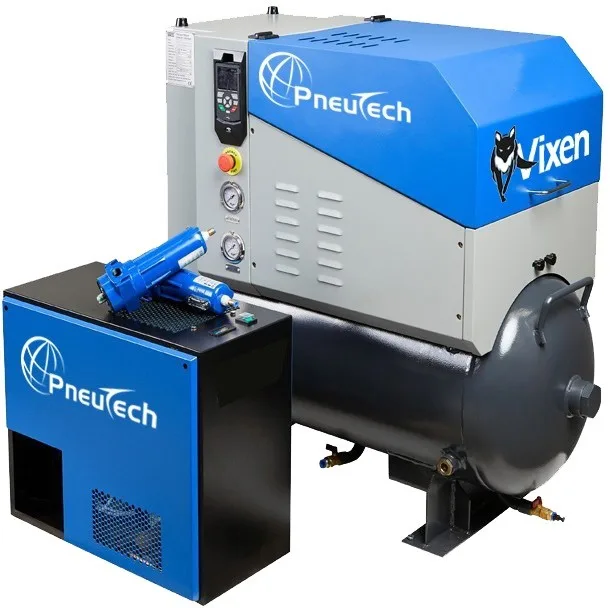

Pneutech Permanent Magnet Drive Compressors
POA
WEB-PNEUTECH-COMPRESSOR | Prices exclude GST
Product overview
About this machine.
VSD-Permanent Magnet Efficiency The Interior Permanent Magnet (IPM) motor uses DC power via an inverter to seamlessly speed up and slow down the compressor to match your air demands.
Major Benefits
- Ability to start/stop on demand instead of continuous run, saving electricity and maintenance costs
- Ability to vary speed/air output down (to only 25% capacity) to suit changing air requirement.
- Up to 60% lower operating costs to standard screw compressor !
- Half size of standard screw compressor
- Remote mount capable controller
- Simple and low cost to service.
- Very competitively priced
Options
- Refrigerated air dryers
- Coalescing filtration (removes solids and oil vapours to as low as 0.01 micron)
- Activated carbon filters (removes oil odours from the air)
- Water separator
- Vertical air receivers
- Condensate drain filtration (adsorbs oil from condensate drains)
- Demonstrations
- Installation
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | RSCR10PM-8 | RSCR10PM-10 | RSCR15PM-8 | RSCR15PM-10 | RSCR20PM-8 | RSCR20PM-10 |
|---|---|---|---|---|---|---|
| Flow (CFM) | 10-38 | 8-31 | 15-60 | 13-52 | 20-81 | 18-74 |
| Flow (m3/min) | 0.3-1.10 | 0.23-0.90 | 0.43-1.70 | 0.38-1.50 | 0.57-2.3 | 0.52-2.10 |
| Pressure (PSI) | 116 | 145 | 116 | 145 | 116 | 145 |
| Motor (kW) | 7.5 | 7.5 | 11 | 11 | 15 | 15 |
| Air Outlet | Rc 1/2" | Rc 1/2" | Rc 3/4" | Rc 3/4" | Rc 3/4" | Rc 3/4" |
| Sound (dBA) | 68 | 68 | 71 | 71 | 72 | 72 |
| Dimensions (cm) | 124x55x102 | 124x55x102 | 125x61x112 | 125x61x112 | 125x61x112 | 125x61x112 |
| Weight (Kg) | 280 | 280 | 320 | 320 | 320 | 320 |
