Homge HL Series Slotted Angle Plates
Product overview
About this machine.
HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.
The HL Series 90 degree Angle Plates are precision workholding and setup tools used for machining, inspection, and layout operations. Designed to provide a stable 90-degree reference, they allow accurate positioning of components for milling, drilling, and marking out. Manufactured from rigid cast construction with precision-machined faces, the HL series maintains squareness and stability under load. Suitable for toolroom and production environments, they are used for holding, supporting, and referencing workpieces where consistent angular accuracy is required.
Features:
- Precision-machined 90 degree faces for accurate right-angle setup and workholding
- High tensile cast iron construction for rigidity and vibration resistance
- Ground reference surfaces for consistent squareness and alignment
- Multiple mounting slots for flexible fixturing options
- Suitable for milling, drilling, inspection, and layout work
- Designed for vertical and horizontal workpiece support
- Maintains accuracy under workshop and production use conditions
- Available in multiple sizes to suit different machine setups
Published data
Specifications

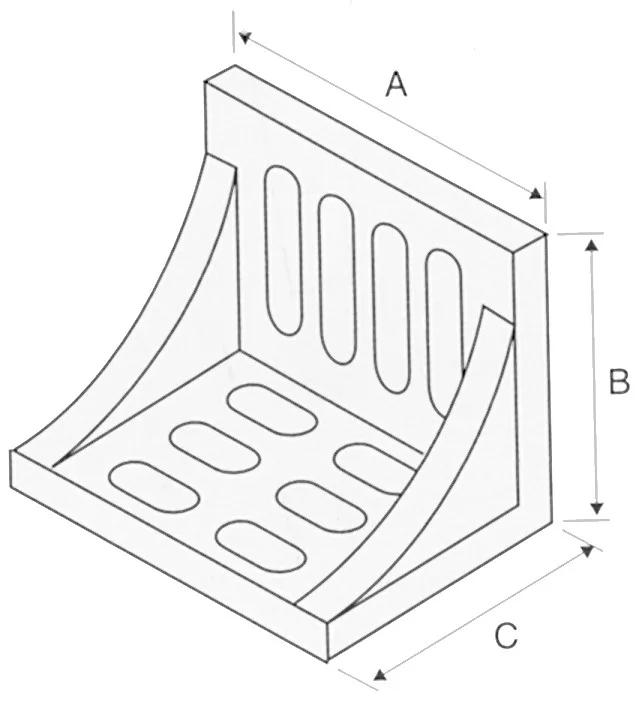

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Length A | Height B | Depth C | Weight | Price Excl GST |
|---|---|---|---|---|---|
| HL4 | 115mm | 90mm | 75mm | 2 kg | POA |
| HL6 | 150mm | 125mm | 115mm | 3.5 kg | $155.00 |
| HL8 | 200mm | 150mm | 125mm | 7 kg | $179.00 |
| HL10 | 250mm | 200mm | 150mm | 12 kg | $299.00 |
| HL12 | 300mm | 230mm | 200mm | 25 kg | $380.00 |
| Other larger models/brands (indent) | |||||
| 400mm | 300mm | 225mm | POA | ||
| 500mm | 400mm | 300mm | POA | ||
| 600mm | 600mm | 450mm | POA | ||
| 900mm | 600mm | 600mm | POA | ||
