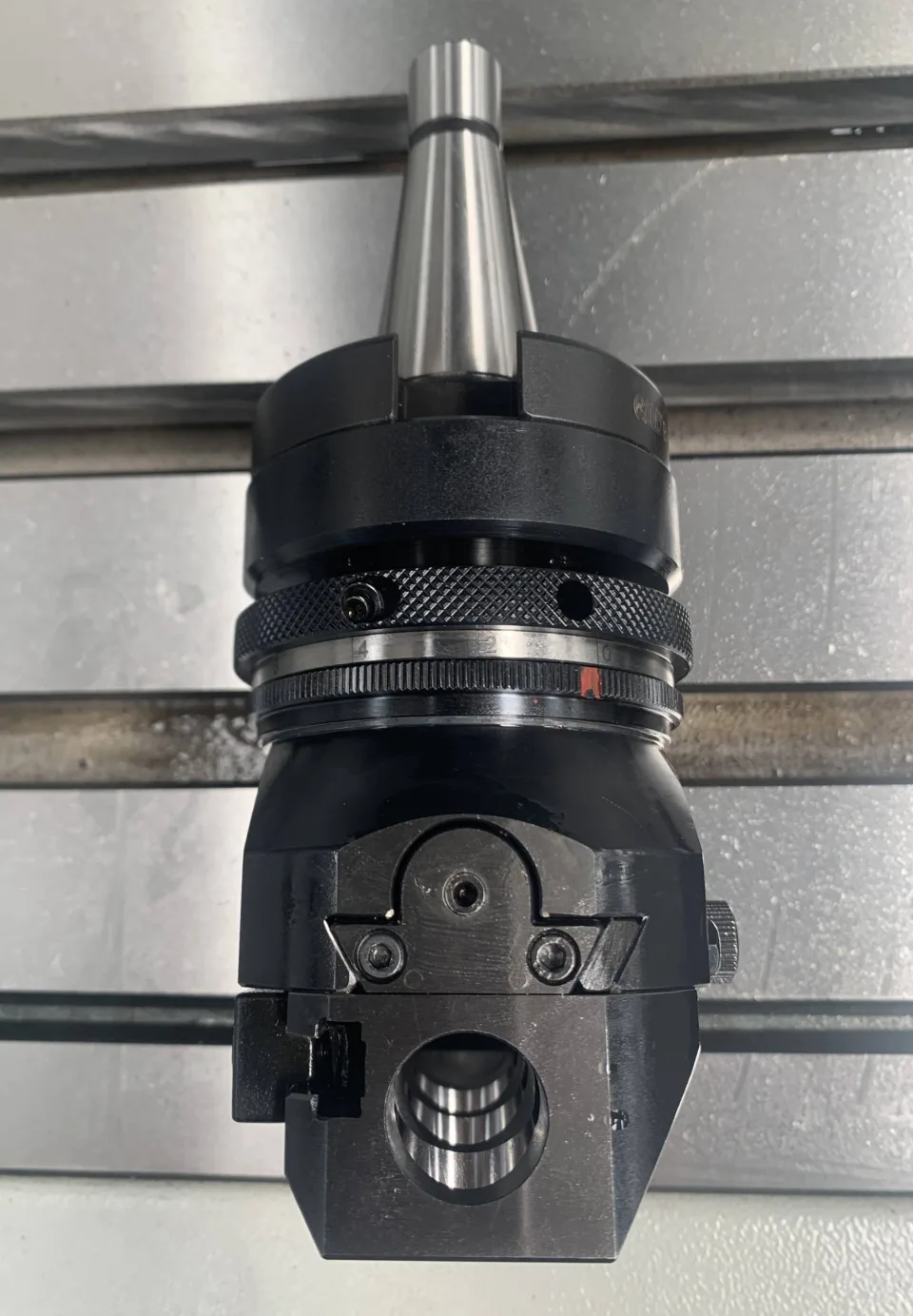

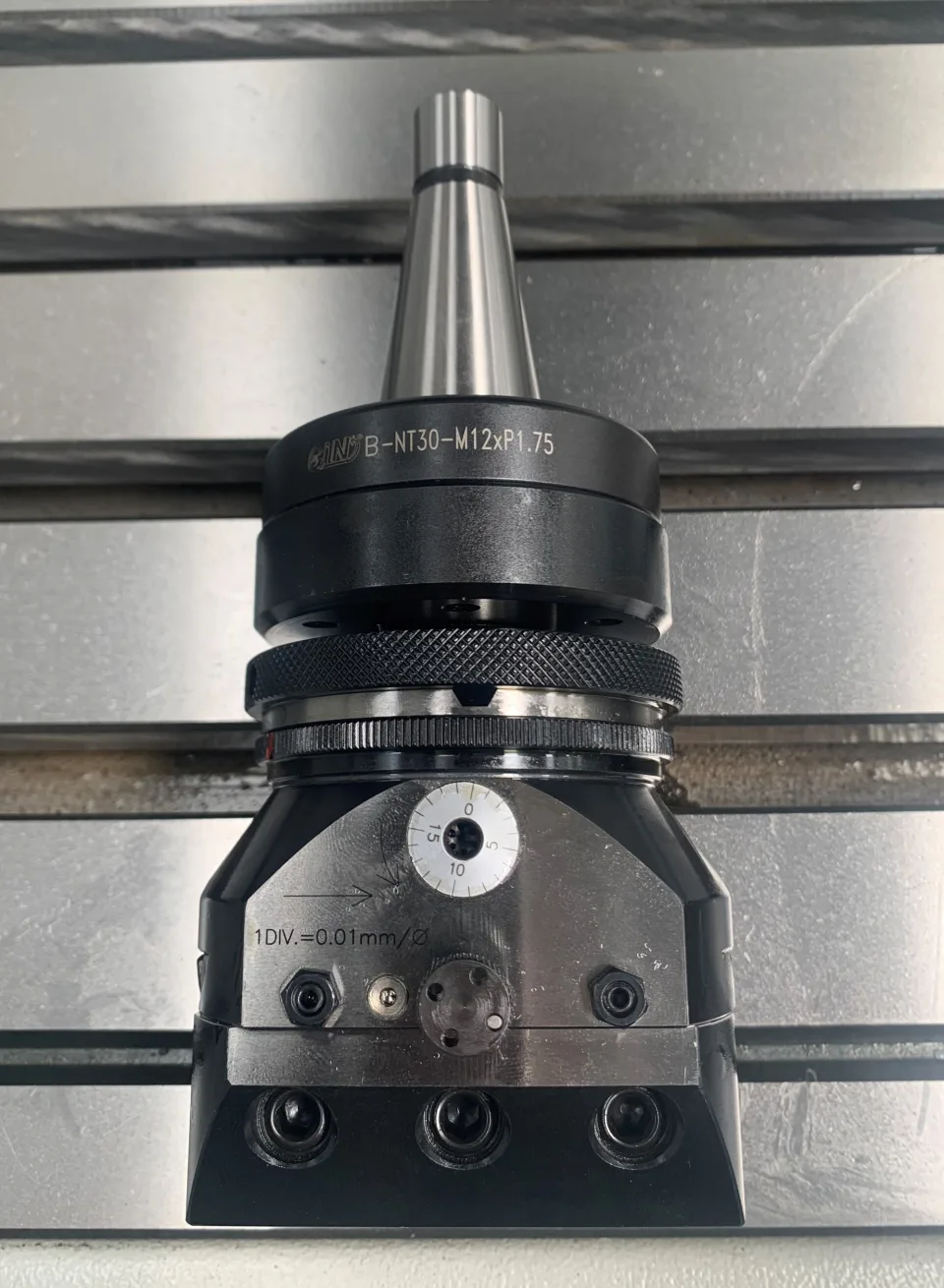

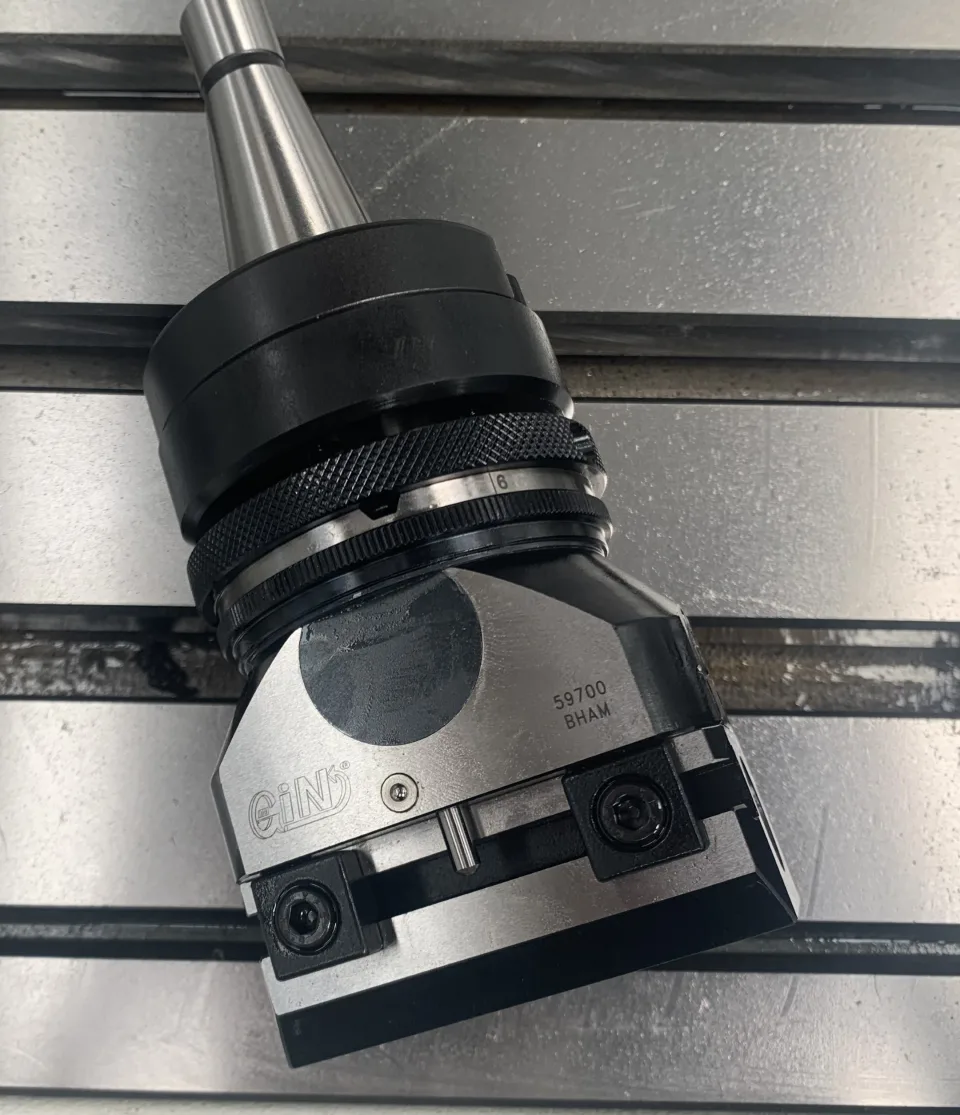

GiN BHAM Universal Boring & Facing Head Sets
POA
WEB-GIN BORING FACE KIT | Prices exclude GST
Product overview
About this machine.
Gin Tech Precision Co. Ltd specializes in premium VHU-style boring and facing tools. We selected these ISO 90001 accredited products for their exceptional quality, accuracy, and reliability. In high-production environments, the Gin brand stands as a benchmark for precision engineering and consistent performance.
A VHU style boring head is a specialized machining tool that allows for precise boring of cylindrical holes and machining of external cylindrical surfaces.
- Automatic feeding with clutch

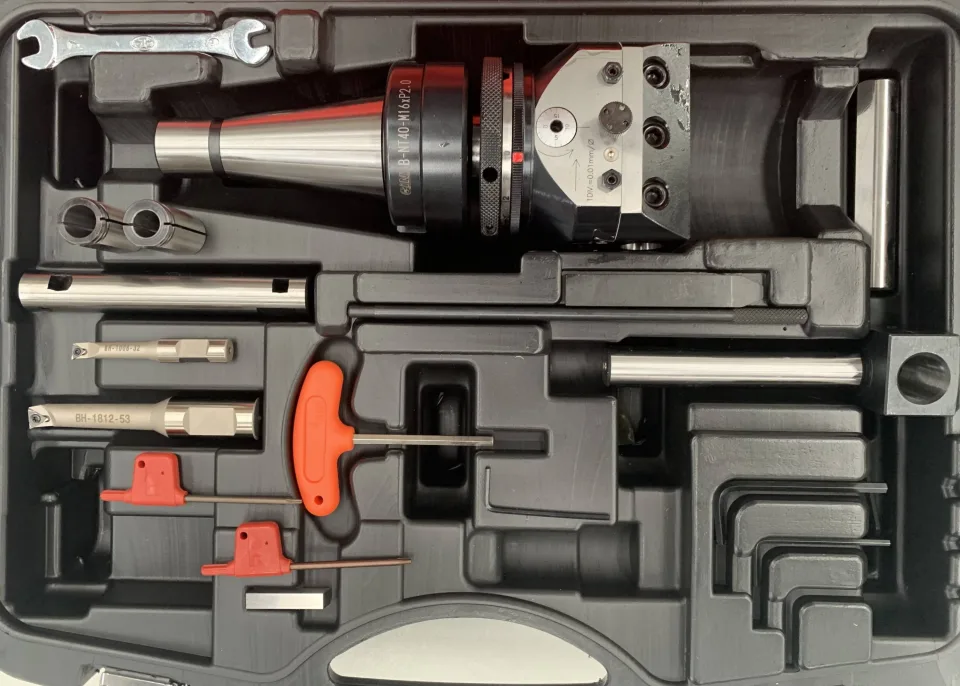

- Kit comes complete with :
- Storage case
- 78mm boring & facing head with integrated arbor
- 1 pce 18mm boring bar with Carbide insert
- 1 pce 10mm boring bar with Carbide insert
- 2 pces 18mm boring bars with HSS bits
- 1 pce extended boring bar holder
- 2 pces of collet sleeves 18-12mm & 18-10mm
- 3 pces of Allen keys 1 pce spanner to suit
Min. boring range 8mm
- Max. boring range 250mm
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Taper | Offset | Boring range | Weight | Price Excl GST |
|---|---|---|---|---|
| 20mm Straight shank | 15mm | 5 - 250mm | 4.4 kg | $1,490.00 |
| 3MT | 15mm | 5 - 250mm | 4.6 kg | $1,490.00 |
| 4MT | 15mm | 5 - 250mm | 5 kg | $1,490.00 |
| R8 | 15mm | 5 - 250mm | 4.8 kg | $1,490.00 |
| NT30 | 15mm | 5 - 250mm | 4.5 kg | $1,490.00 |
| NT40 | 15mm | 5 - 250mm | 4.9 kg | $1,490.00 |
| NT50 | 15mm | 5 - 250mm | 7.6 kg | $1,590.00 |
| BT40 | 15mm | 5 - 250mm | 5.6 kg | $1,590.00 |
| BT50 | 15mm | 5 - 250mm | 7.6 kg | $1,590.00 |
