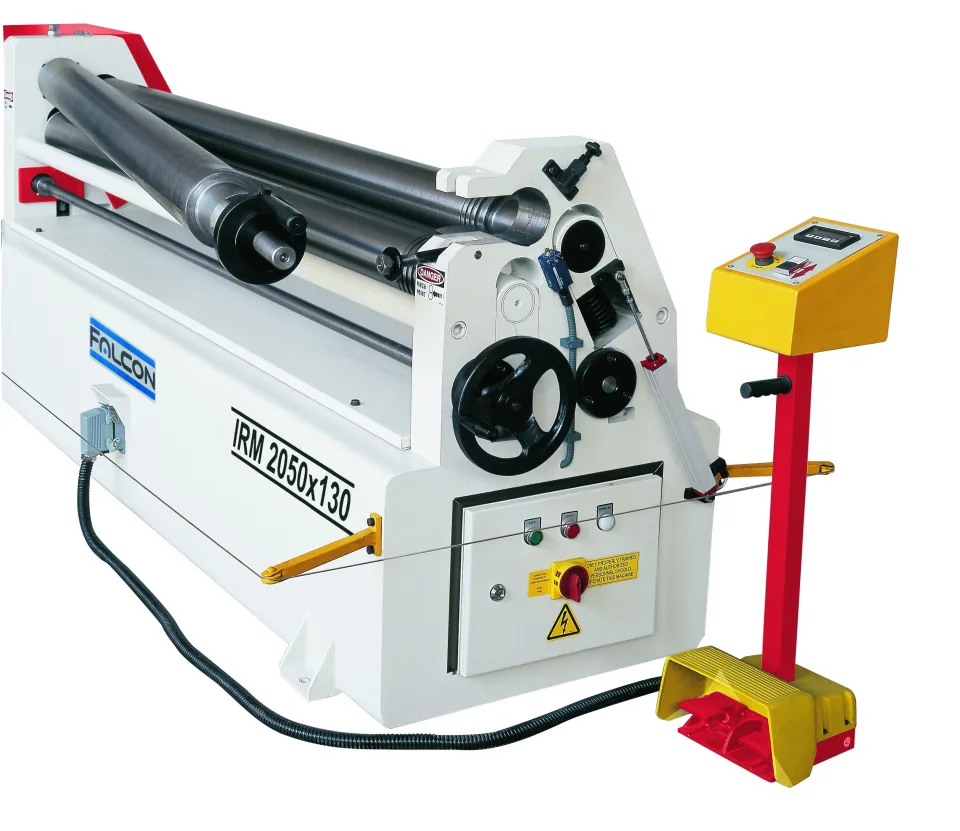

FALCON IRM Plate Rolls Series
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.
3 Roller Intial Pinch Style Mechanical Motorised Plate Rolls
- Made in Europe
- 2 Rolls powered by motor & gearbox
- Strong design steel construction
- Pre-bending possible
- Remote control panel
- Cone bending adjustment
- Quality components
- 415v brake motor
- Swing out top roll
Optional:
- Induction hardened rolls
- Motorised back roll adjustment
- Digital readout for back roll position
- Changeable top roll for smaller rolls
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | Length | Bending capacity | Roll diameter | Main Motor | Dimensions LxDxH | Weight |
|---|---|---|---|---|---|---|
| IRM 1050x110 | 1050mm | 4mm | 110mm | 2.2 kw | 2200x750x1000mm | 990 kg |
| IRM 1050x130 | 1050mm | 5mm | 130mm | 2.2 kw | 2220x750x1000mm | 1200 kg |
| IRM 1270x120 | 1270mm | 4mm | 120mm | 2.2 kw | 2470x750x1000mm | 1110 kg |
| IRM 1270x140 | 1270mm | 5mm | 140mm | 2.2 kw | 2470x750x1000mm | 1350 kg |
| IRM 1550x110 | 1550mm | 2mm | 110mm | 2.2 kw | 2700x750x1000mm | 1200 kg |
| IRM 1550x140 | 1550mm | 3mm | 140mm | 2.2 kw | 2700x750x1000mm | 1420 kg |
| IRM 2050x110 | 2050mm | 2mm | 110mm | 2.2 kw | 3200x750x1000mm | 1380 kg |
| IRM 2050x130 | 2050mm | 3mm | 130mm | 2.2 kw | 3200x750x1000mm | 1500 kg |
| IRM 2050x140 | 2050mm | 4mm | 140mm | 2.2 kw | 3200x750x1000mm | 1650 kg |
| IRM 2550x140 | 2550mm | 2.5mm | 140mm | 2.2 kw | 3700x750x1000mm | 1850 kg |
