Dener

Dener Smart XL Series Hydraulic Press brake

With ESA 640 CNC Control Y1, Y2, X

POA: Let us know your requirements
WEB-DENER SMART XL | Prices exclude GST
Dener Smart XL Series Hydraulic Press brake Dener Smart XL Series Hydraulic Press brake Dener Smart XL Series Hydraulic Press brake Dener Smart XL Series Hydraulic Press brake Dener Smart XL Series Hydraulic Press brake

Product overview

About this machine.

Introduction: DENER MAKINA was established in 1974 in Kayseri/TURKEY and is a manufacturer of NC and CNC Hydraulic Pressbrakes, CNC laser cutters, NC Swingbeam and CNC Rake Angle Shears, Plasma Cutters, Corner Notchers and Folding Machines.

Since the very first beginning, DENER has had the philosophy of the production with best quality and high technology with ISO 9001 Quality Control Management System and European Safety Standards.

DENER MAKINA is one of the leading Turkish Brands in Sheetmetal Working Machinery with a large 18,000 m2 factory with skilled and qualified workers, and today DENER Machines are sold all over the world through their dealer network.

Smart XL CNC Press Brake: Dener SMART XL CNC - Economical, stronger and faster accurate new model. Smart XL Press brake targets small and medium size sheet metal working companies. The most important features of Dener Smart XL are; Faster working speeds, Higher bending power, Deeper throat depth, Higher stroke and Daylight.

Dener Smart XL CNC is a synchronized hydraulic press brake with numerical CNC controllers. It offers simple operation, quick and easy part programming, easy setup of the machine, auto calculation of the bend angle, and back gauge correction. 2D offline programming feature which comes with ESA 640 Controller gives the possibility for end users to complete bending programs on an office PC and transfer to the machine by LAN or USB. These functions make Dener Smart XL CNC Hydraulic Press Brake very popular among users. Dener Smart machine has more advanced futures than its competitors. Some of these features are: a strong and complete mono block welded frame, longer stroke and longer distance between frames, deeper throat depth and a higher working table.

Standard features:

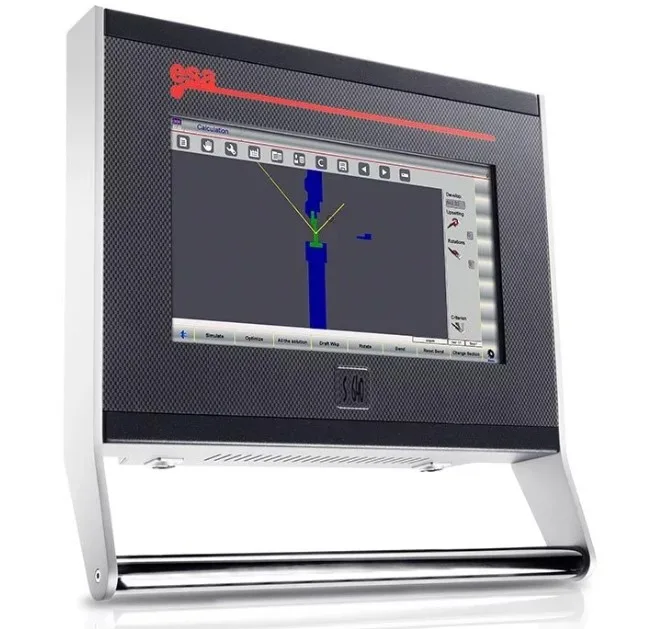

  • ESA 640 CNC control with 2D graphical touch screen
  • 3 axis control - Y1, Y2, X
  • Manual R axis control
  • Manual crowning

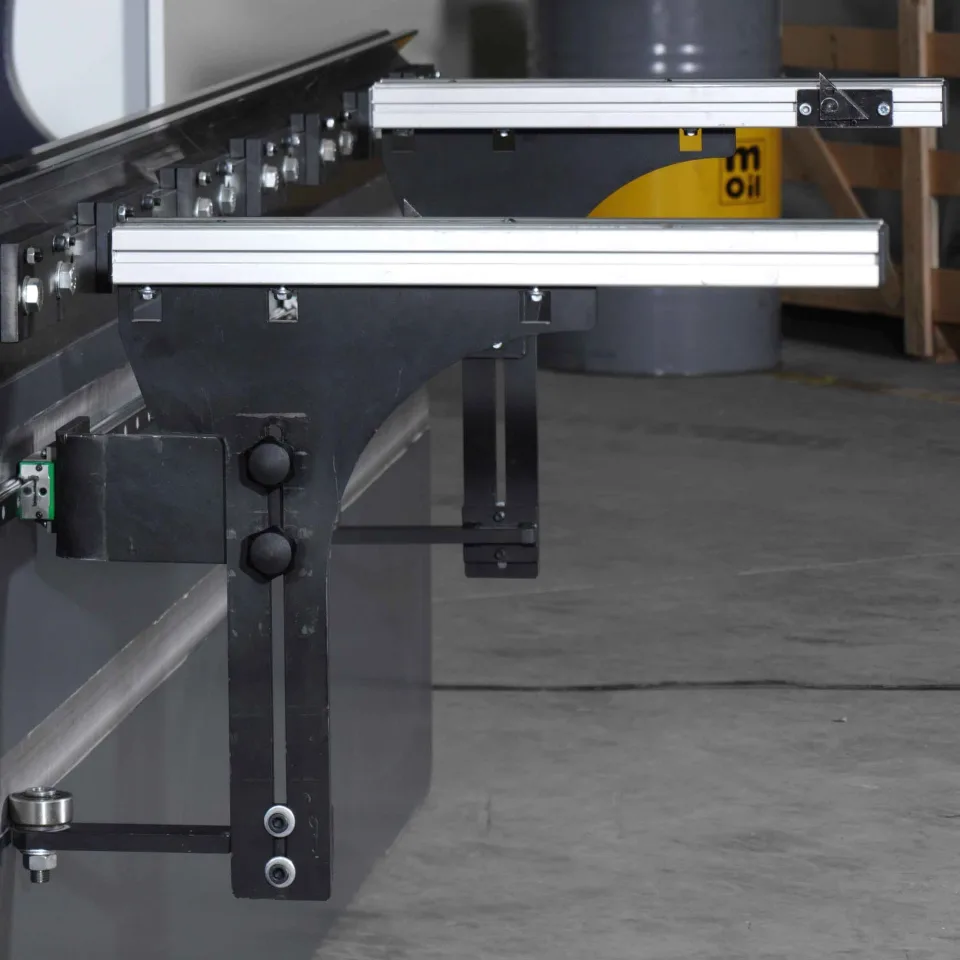

  • Sliding front support arms
  • DSP laser guarding
  • CE conformity
  • 1281 top tool T/M=100 (Eurostamp) Link

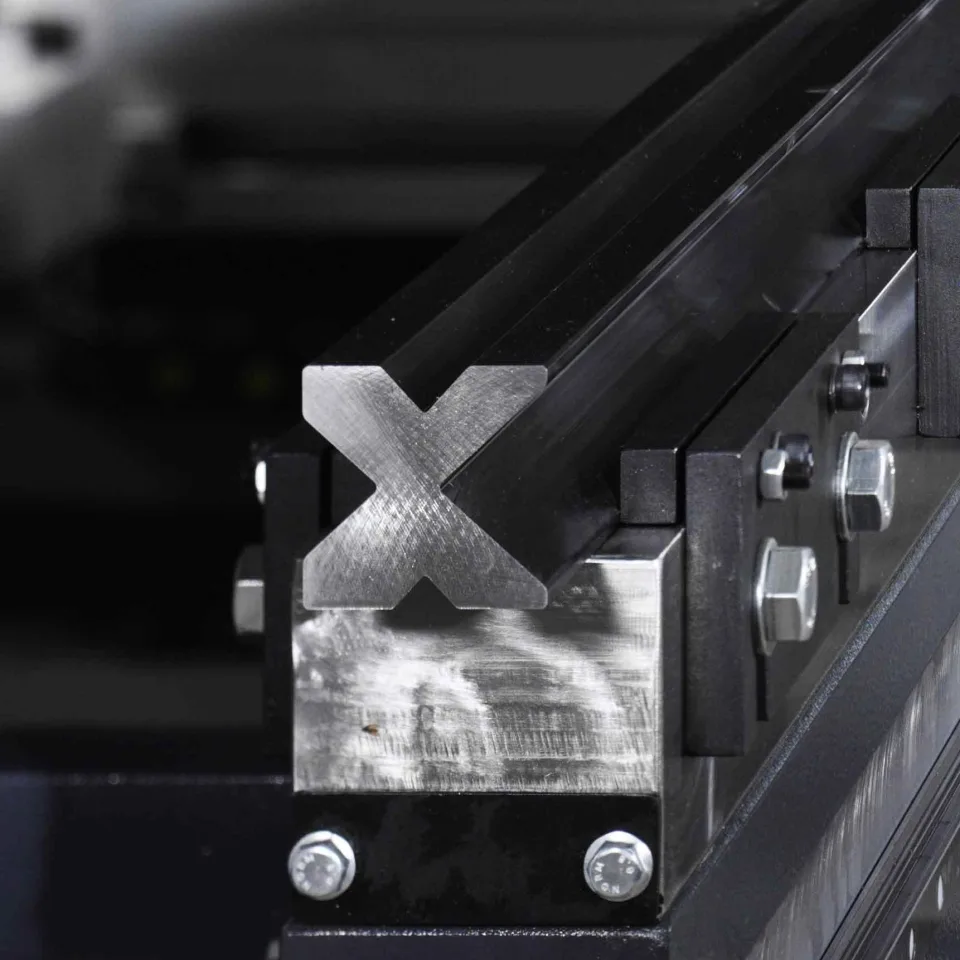

  • 2067 multi vee bottom block (16, 22, 35 & 50mm vee) T/M=80 (Eurostamp)

See the below table for individual model specifications.

  • Custom Length and tonnage options available, feel free to contact us to discuss your bending requirements

Optional:

  • 2 axis X, R Up to 6 axis ATF type back gauge
  • Quick release top tool clamps
  • Additional back gauge fingers
  • ESA 275 W, 3D CNC Control
  • Delem DA-66T 2D or DA69T 3D CNC control
  • Wila tool holders in manual or hydraulic clamping configuration for quick tool changes
  • Wide range of Eurostamp tooling, trays and clamps available

Note: All models 400 ton capacity and under are above ground and do not require an underground pit

Note -All Pressbrakes Supplied without hydraulic oil

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Smart XL1550x40T XL2050x60T XL2600x100T XL3020x100T XL2600x135T XL3020x135T XL4050x135T XL3020x175T XL3600x175T XL4050x175T XL3020x220T
Bending length (mm) 1550 2050 2600 3020 2600 3020 4050 3020 3600 4050 3020
Bending capacity (ton) 40 60 100 100 135 135 135 175 175 175 220
Stroke (mm) 220 220 300 300 320 320 320 350 350 350 350
Approach speed (mm/sec) 180 180 160 160 160 160 160 150 150 150 140
Bending speed (mm/sec) 10 10 10 10 10 10 10 10 10 10 10
Return speed (mm/sec) 160 160 150 150 140 140 140 130 130 130 130
Throat depth (mm) 400 400 450 450 450 450 450 450 450 450 450
Daylight (mm) 410 410 530 530 550 550 550 600 600 600 600
Distance between frames (mm) 1250 1650 2150 2555 2150 2555 3550 2555 3100 3550 2555
Machine dimensions (LxWxH) 2200x2155x2500 2600x2155x2500 3200x2100x2500 3740x2455x2500 3200x2400x2950 3800x2400x2950 4800x2400x2950 3800x2585x3050 4350x2585x3050 4800x2590x3050 3800x2590x3050
Table height (mm) 900 900 900 900 900 900 900 920 920 920 920
Motor power (kW) 7.5 7.5 11 11 15 15 15 22 22 22 22
Oil capacity (L) 100 100 190 190 190 190 190 300 300 300 300
Weight (kg approx) 4200 5000 7000 8000 8800 9800 12000 11000 12500 13400 11800
Smart XL3600x220T XL4050x220T XL6050x220T XL3020x320T XL3600x320T XL4050x320T XL6050x320T XL4505x400T XL6050x400T XL6050x500T XL6050x600T
Bending length (mm) 3600 4050 6050 3020 3600 4050 6050 4050 6050 6050 6050
Bending capacity (ton) 220 220 220 320 320 320 320 400 400 500 500
Stroke (mm) 350 350 350 400 400 400 400 400 400 400 430
Approach speed (mm/sec) 140 140 100 140 140 140 80 80 60 60 60
Bending speed (mm/sec) 10 10 10 10 10 10 10 10 8 8 8
Return speed (mm/sec) 130 130 100 120 120 120 80 80 60 60 60
Throat depth (mm) 450 450 450 450 450 450 450 600 600 600 600
Daylight (mm) 600 600 600 650 650 650 650 650 650 650 680
Distance between frames (mm) 3100 3550 5100 2555 3100 3550 5100 3550 5100 5100 5100
Machine dimensions (LxWxH) 4350x2590x3050 4800x2590x3050 6850x3050x3050 3800x2590x3080 4350x2590x3080 4825x2590x3080 6850x3100x3080 4750x3150x3800 6850x3150x3800 7000x3300x3950 7000x3300x4000
Table height (mm) 920 920 920 920 920 920 920 1095 1095 1085 1000
Motor power (kW) 22 22 22 30 30 30 30 45 45 45 45
Oil capacity (L) 300 300 300 400 400 400 400 400 400 400 600
Weight (kg approx) 13500 14250 21000 14250 15500 16500 27500 25000 36000 55000 58000
