Eurotech Booster 1ph to 3ph Converters
Priced as per table
WEB-BOOSTER | Prices exclude GST
Product overview
About this machine.

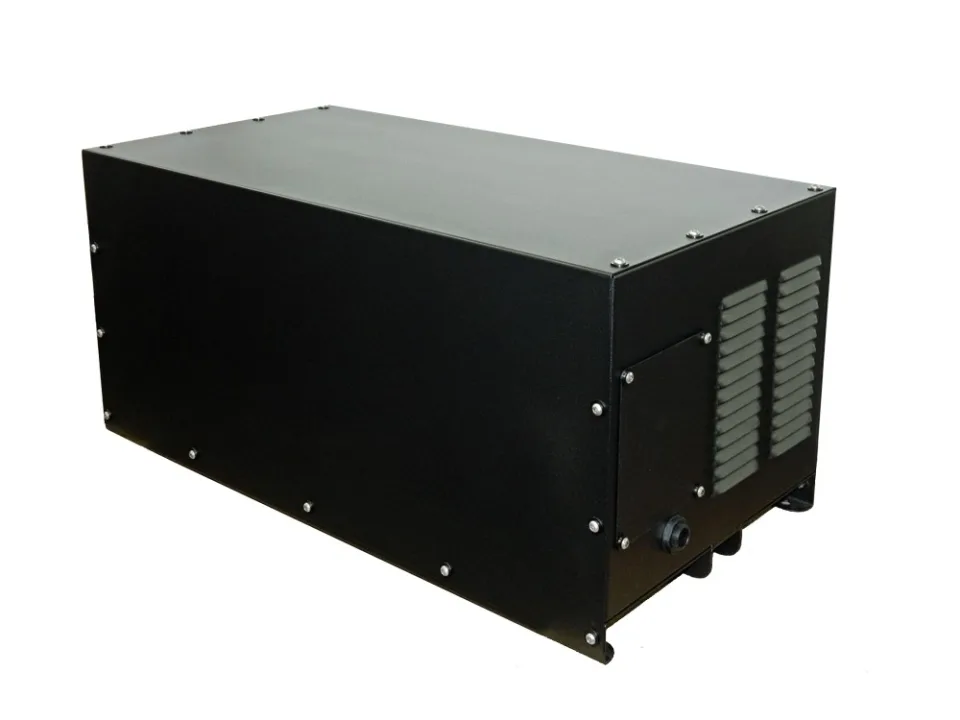

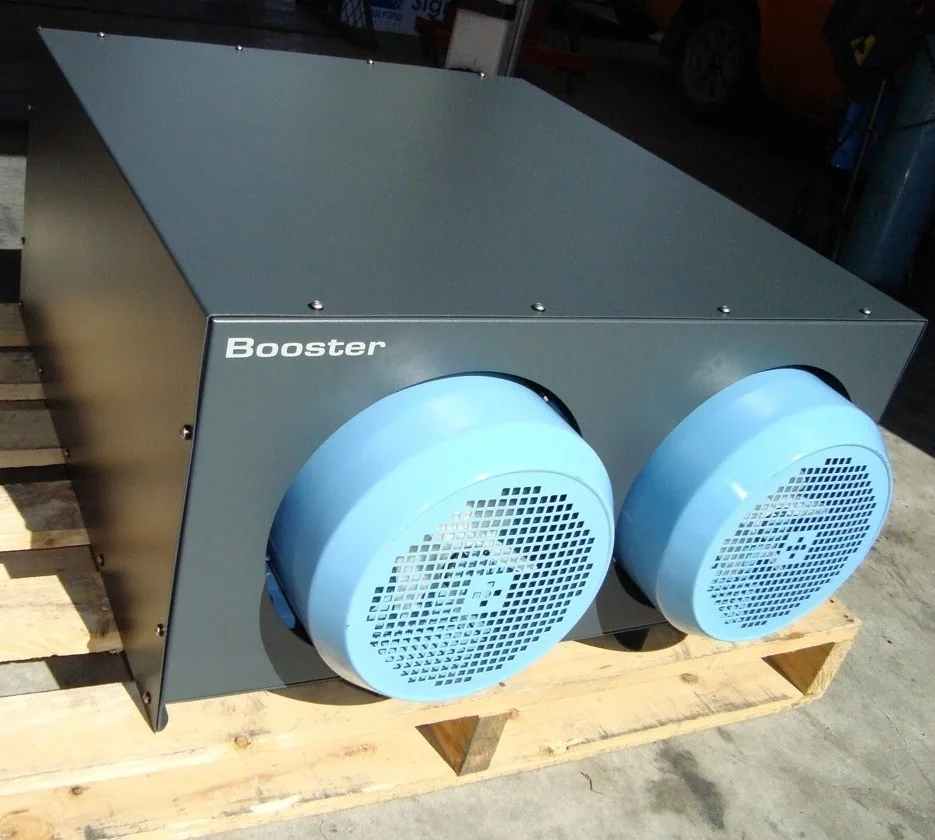

Single phase to three phase Converter
Also available in the following sizes
Booster 2.2kW to 40kW.
Available in Booster and MultiPhase type models
BOOSTER :
Low cost version for standard machine applications in home workshops and light industrial applications. As a rotary converter it has no phase voltage balancing.
MULTIPHASE:
For all applications including welders, heaters, machines with variable speed drives, CNC machines, deep submersible pumps, motors running continuously under high loads, VFDs, welders, any three phase load.
Payment in full on order.
- Allow 10-14 days for assembly & delivery after payment. Delivery time is subject to confirmation at time of order.
- Boosters require an isolation switch-socket on the supply, motor rated fuses at the power distribution board and the power supply must be rated correctly for the Booster. Please check the amp rating in the Specification - Input column of the table below.
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| EUROTECH | All prices exclude GST | Freight to other destinations additional | |||
|---|---|---|---|---|---|
| Model | Specification - Input (Motor Rated) | Output | Weight | Price ( ex store Christchurch) | Price ( ex store Auckland) |
| Booster 3 | Input 230V, 1x15A | 3 phase 400v, 3kW (4hp) | 80kg | $4,190.00 | $4,090.00 |
| Booster 4 | Input 230V, 1x19A | 3 phase 400v, 4kW (5.5hp) | 90kg | $5,150.00 | $5,050.00 |
| Booster 6 | Input 230V, 1x28A | 3 phase 400v, 6kW (8hp) | 95kg | $6,700.00 | $6,600.00 |
| Booster 8 | Input 230V, 1x38A | 3 phase 400v, 8kW (11hp) | 100kg | $8,170.00 | $8,070.00 |
| Multi-Phase 8 | Input 230V, 1x38A | 3 phase 400v, 8kW (11hp) | 105kg | $9,180.00 | $9,080.00 |
| Multi-Phase 12 | Input 230V, 1x58A | 3 phase 400v, 12kW (16hp) | 170kg | $12,640.00 | $12,440.00 |
| Multi-Phase 16 | Input 230V, 1x76A (2 enclosures) | 3 phase 400v, 16kW (22hp) | 200kg | $15,660.00 | $15,460.00 |
| Multi-Phase 24 | Input 230V, 1x115A (3 enclosures) | 3 phase 400v, 24kW (30hp) | 300kg | $19,800.00 | $19,500.00 |
| Multi-Phase 32 | Input 230V, (4 enclosures) | 3 phase 400v, 32kW (43hp) | 400kg | $26,600.00 | $26.200.00 |
| Multi-Phase 40 | Input 230V, (5 enclosures) | 3 phase 400v, 40kW (53hp) | 500kg | $30,900 00 | $30,400.00 |
