FALCON MRM-H Plate Rolls Series
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

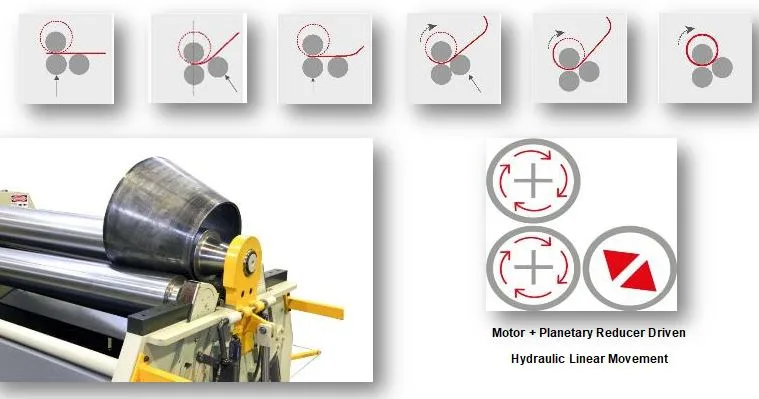

Asymmetrical Plate Rolls
- Pre-bending possible
- Top and bottom rolls mechanically driven
- Back roll move by hydraulics
- Hydraulic drop-end
- Cone bending device
- Remote control station
Below is a sample of sizes available in the MRM-H series. More information and specifications available upon request.
Optional:
- Induction hardened and ground rolls
- Adjustable rolling speed
- Digital display for back roll position
- NC control system
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | Length (mm) | Pre-bend (mm) | Max thickness (mm) | Roll dia (mm) | Min rolling dia (mm) | Motor (kW) | Weight kgs |
|---|---|---|---|---|---|---|---|
| 650x80 | 650 | 2.5/3 | 3/3.5 | 80 | 120 | 1.1 | 800 |
| 1050x80 | 1050 | 1.5/2 | 2/2.5 | 80 | 120 | 1.1 | 920 |
| 1050X130 | 1050 | 2.5/3 | 3/5 | 130 | 195 | 2.2 | 1720 |
| 1270x80 | 1270 | 1/1.5 | 1.5/2 | 80 | 120 | 1.1 | 950 |
| 1270x200 | 1270 | 8/10 | 10/12 | 200 | 300 | 4.0 | 2200 |
| 1550x80 | 1550 | 0.5/1 | 1/1.5 | 80 | 120 | 1.1 | 1100 |
| 1550x250 | 1550 | 10/12 | 12/15 | 250 | 375 | 7.5 | 3600 |
| 2050x130 | 2050 | 2/3 | 3/4 | 130 | 195 | 2.2 | 2050 |
| 2050x250 | 2050 | 8/10 | 10/12 | 250 | 375 | 7.5 | 4200 |
| 2550x150 | 2050 | 2/3 | 3/4 | 250 | 225 | 2.2 | 2050 |
| 2550x250 | 2550 | 6/8 | 8/10 | 250 | 375 | 7.5 | 4800 |
| 3100x180 | 3100 | 2/3 | 3/4 | 180 | 270 | 4.0 | 3450 |
| 3100x250 | 3100 | 5/7 | 7/9 | 250 | 375 | 7.5 | 5400 |
| 4050x250 | 4050 | 3/4 | 4/6 | 250 | 375 | 7.5 | 6600 |
