ALIGN Electronic Power Feed Units
POA
WEB-ALIGN | Prices exclude GST
Product overview
About this machine.
Align power feed units have become a trusted accessory in milling operations worldwide, known for their reliability, precision, and ease of use. Originating from Taiwan, Align began manufacturing power feeds in the 1980s, quickly gaining a reputation for producing high-quality, affordable alternatives to more expensive OEM units.
Align power feeds are a popular upgrade for manual milling machines, offering smoother table movement, reduced operator fatigue, and more consistent surface finishes. With adjustable speed control and built-in overload protection, they enhance productivity and accuracy in both professional and educational workshop environments.
Suitable for wide range of milling machines.
- High quality, low noise & designed for long life.
- Electronically adjustable feed rate via potentiometer.
- Rapid traverse button.
- Direction change via hand lever
- New more powerfull AL-500 models

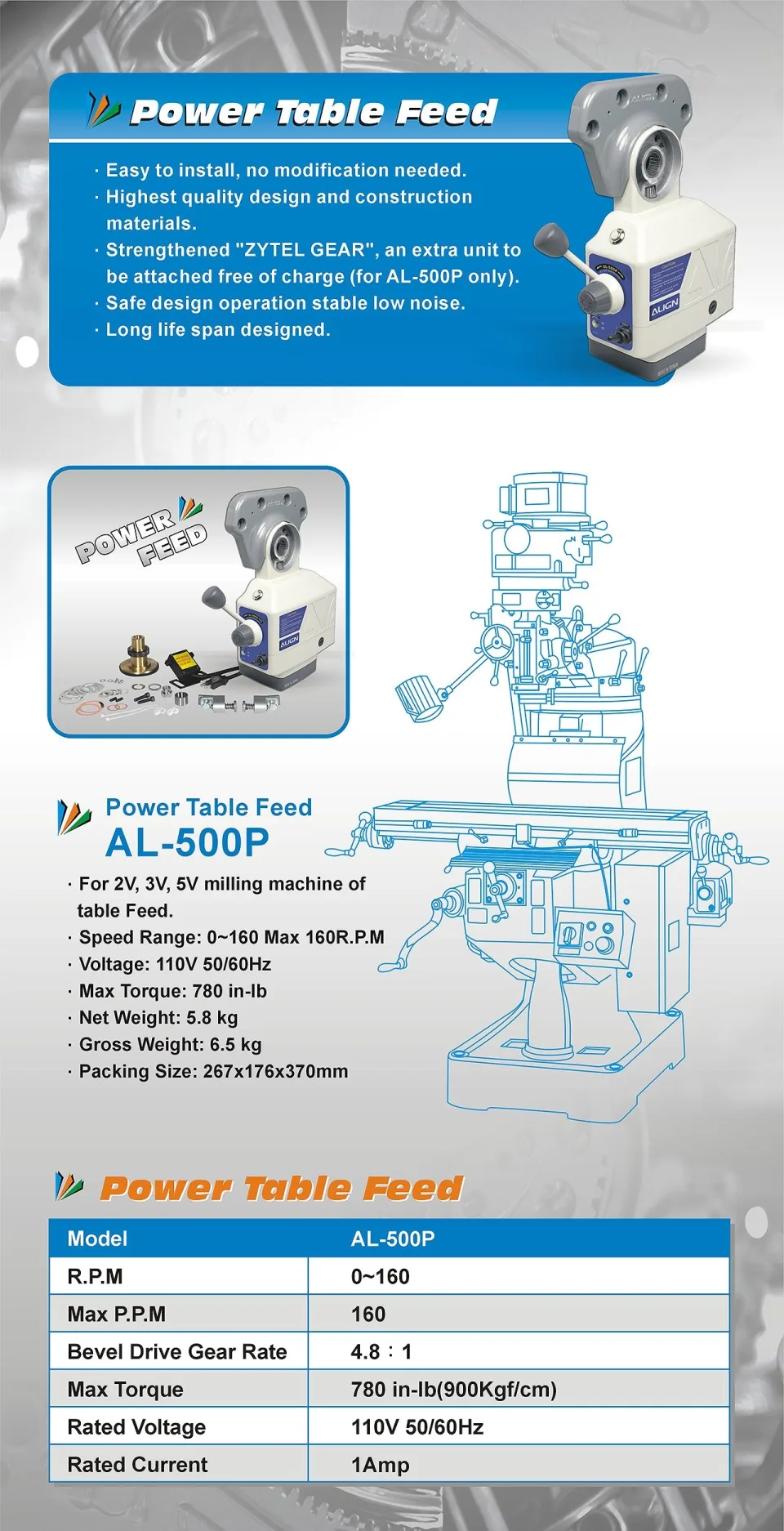

- AL-500P for turret mill application

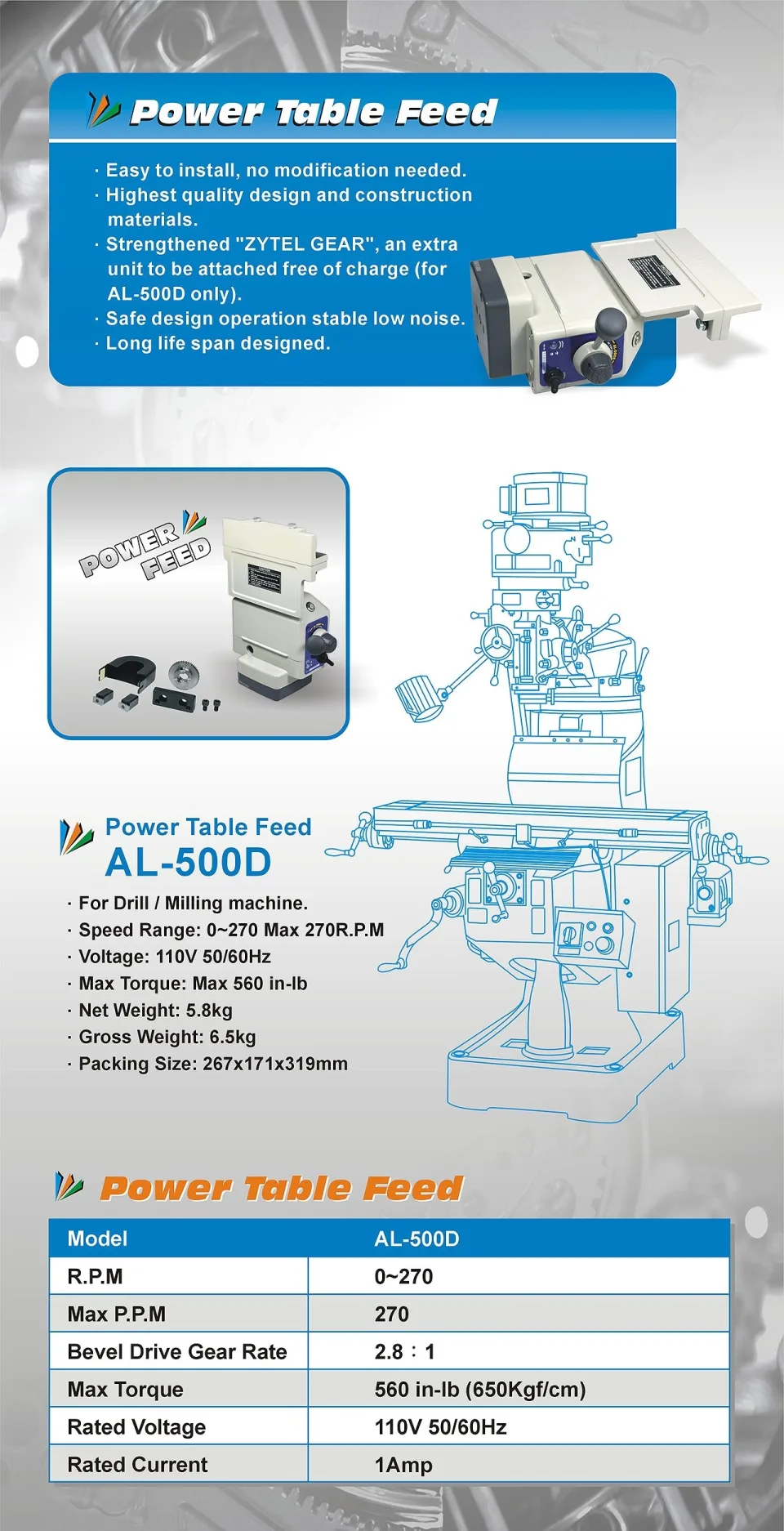

- AL-500D for mill drill application (horizontal mounting)
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Power supply | Torque | Speed range | Price Excl GST | |
|---|---|---|---|---|---|
| Vertical Mounting | for Turret Milling Machine | ||||
| AL500P-X | X-Axis to suit KRV3000SL | 110v supply required | 780 in/lb | 0 - 160rpm 160rpm rapid | $990.00 |
| AL500P-X | X Axis | 110v supply required | 780 in/lb | 0 - 160rpm 160rpm rapid | $690.00 |
| AL500P-Y | Y Axis | 110v supply required | 780 in/lb | 0 - 160rpm 160rpm rapid | $690.00 |
| AL500P-Z | Z Axis | 110v supply required | 780 in/lb | 0 - 160rpm 160rpm rapid | $790.00 |
| Horizontal Mounting | for Mill Drill Machine | ||||
| AL500D | 230v to 110v Transformer supplied | 560 in/lb | 0 - 270rpm 270rpm rapid | $840.00 | |
| AL500D | 230v to 110v Transformer supplied | 560 in/lb | 0 - 270rpm 270rpm rapid | $840.00 |
