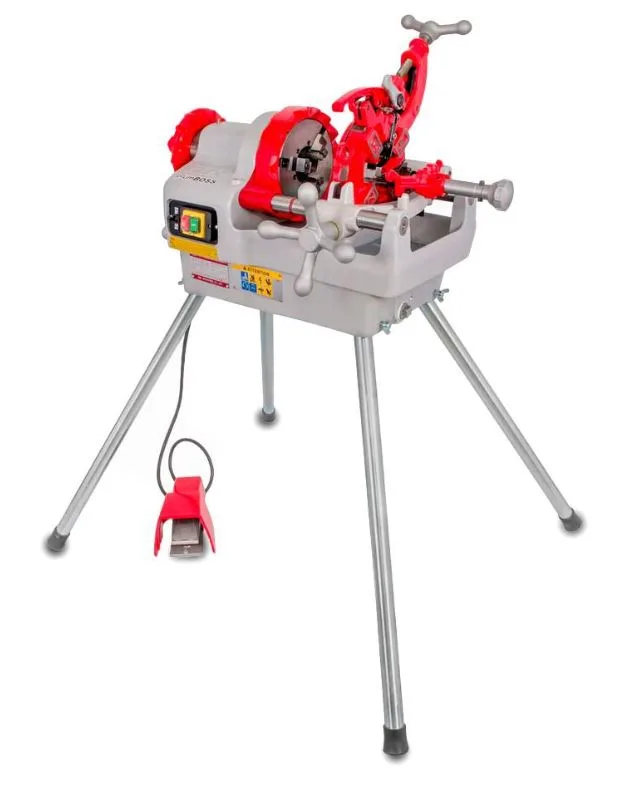

REX FP50AV-CE Pipe Threading Machine
Product overview
About this machine.
REX pipe threading machines, manufactured in Japan by REX Industries, are trusted worldwide for their precision, durability, and ease of use. With a legacy dating back to 1925, REX offers a full range of machines from compact, portable models to heavy-duty industrial units. Designed for threading steel, stainless steel, and plastic pipes.
The REX FP50AV-CE, part of the popular FP50A Series, is a compact yet powerful pipe threading machine engineered in Japan. Designed for threading steel and stainless steel pipes from 1/2" (15A) to 2" (50A), it is powered by a 1,600 W universal motor (1,000 W output) while maintaining excellent portability at approximately 48 kg. The FP50AV-CE is the latest model in the range and supports REX die heads and dies, making it an ideal replacement for older REX machines while delivering the same high level of quality and reliability. Operation is straightforward and user-friendly, with pipe size easily adjusted via the lever handle and thread length set by changing the lever contact. The die head can be opened either manually or automatically, depending on the application. Maintenance is simple, with auto-stop carbon brushes to protect the motor from damage. These brushes can be replaced easily without disassembling the machine. The new CE model is supplied as standard with a foot switch.

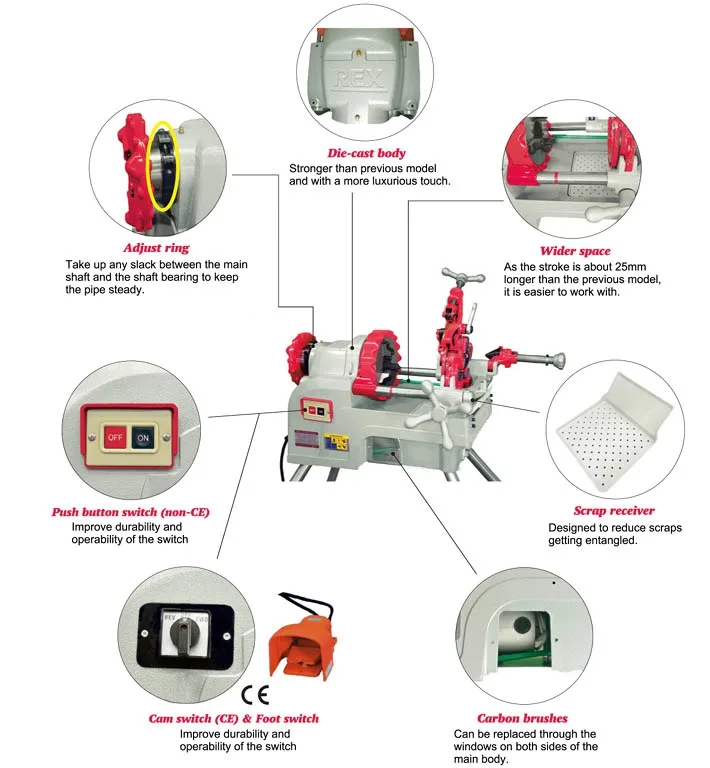

Features
- Threading Range 1/2" to 2" (15 A-50 A) steel and stainless steel pipe
- Auto opening die head (AV)
- Clean, precise threading with reduced cutting resistance
- Easy adjustment of thread length and diameter
- CE Certified Safety Design
- Includes foot switch, safety guard, and compliant electrical components for EU standards
- Multi thread compatibility supports BSPT, NPT, PF, BSPP, Metric, UNC, BSW, NPSM, and conduit threads
- High power motor 1,600W input / 1,000W output universal motor for strong cutting performance
- Compact & portable, approximately 48 kg body weight. Ideal for on-site or van-based threading operations
- Tool free maintenance, quick access for dies, brushes, chuck jaws and the oil pump. No disassembly required
- Integrated oil pump system supplies constant lubrication during threading for extended tool life and cleaner cuts
- Durable die-cast housing and heavy duty internal gears for long-lasting performance
- Simple operation with a lever nut for pipe size selection, reversible motor switch, and smooth spindle control
Standard Accessories:
- New more powerful 1600w series motor (1,000W output)
- Complete with Fwd/Rev toggle switch
- 1/2" - 3/4" & 1" - 2" BSPT dies
- 4 leg stand
- 2L thread cutting oil
Optional Accessories:
- RG-R1 portable groover
- Thread rolling head
- Spare dies & HSS dies for Stainless steel
- Threading oil
Safety features:
- "Hold to run" safety foot switch
- CE Conformity
