Krasser Optima Slitting & Cut To Length Line
Product overview
About this machine.

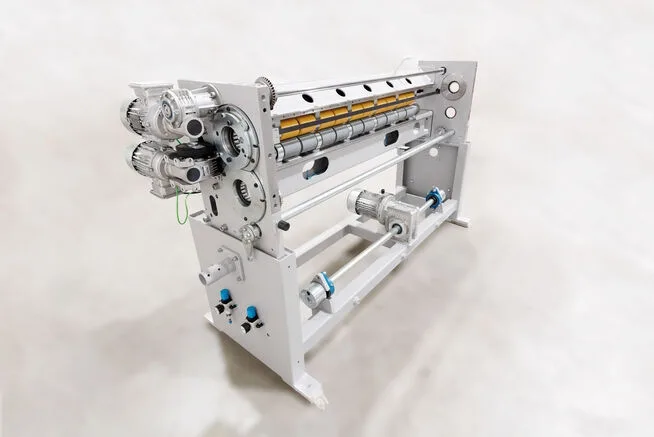

Krasser Optima. Cutting sheetmetal to size fast and simple The Optima slitting machine system combines over 20 year of experience in automatic coil processing systems with innovation, simplicity and robustness
How it works Once the coil is fed in, the sheet is automatically adjusted. Facilities to apply foil to the sheet during cutting operations, or the installation of a swivelable straightening unit, are additional options available according to customer requirements.

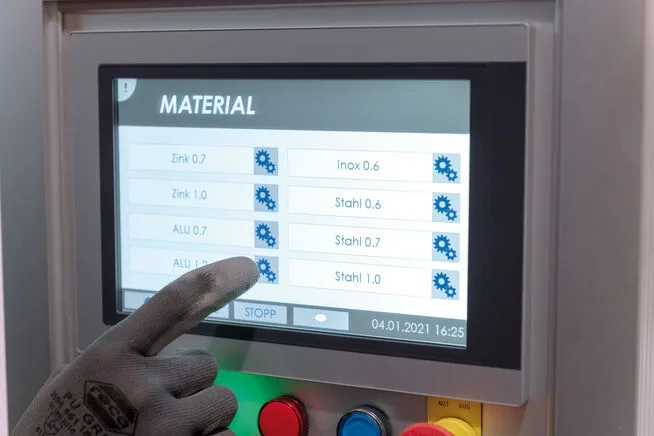

Inputting length, width, material type and number of cuts takes place via the touchscreen or directly via PC. All machine settings, such as die clearance and cutting depth, are stored according to material, thus guaranteeing the best possible quality of cut.

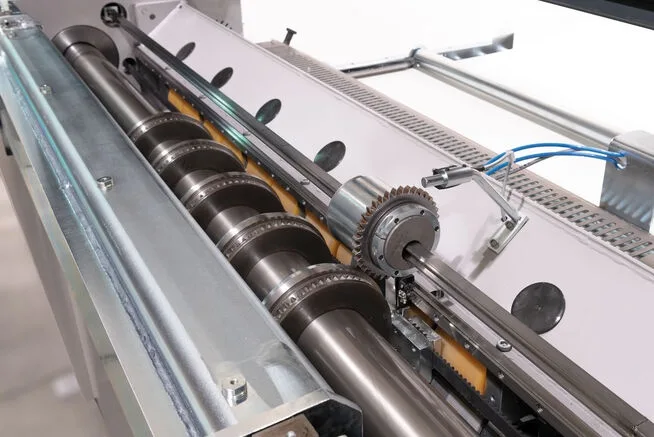

Fully automated positioning of up to eight pairs of slitting rolls, facilitating the straightforward and rapid execution of widely dissimilar cuts.
The machine allows processing of coils with a width of up to 1250 mm and weight up to 2000 kg without the use of a motorised decoiler.
If a motorised decoiler is used, coil weight and diameter are not limited. Rolled sheet is slit into strips and cut laterally by a guillotine or optional roller shear, all with minimised offcuts. Differing cutting runs can be scheduled in unbroken sequences. This does not require repeated feeding of material and so guarantees the highest possible speed with minimal material scrap.
In flat sheet slitting cutting mode, the use of rotary shears makes for much more economical processing of plate.
The Advantages
- Automatic knife positioning
- Automatic cutting gap adjustment
- Automatic cutting depth adjustment

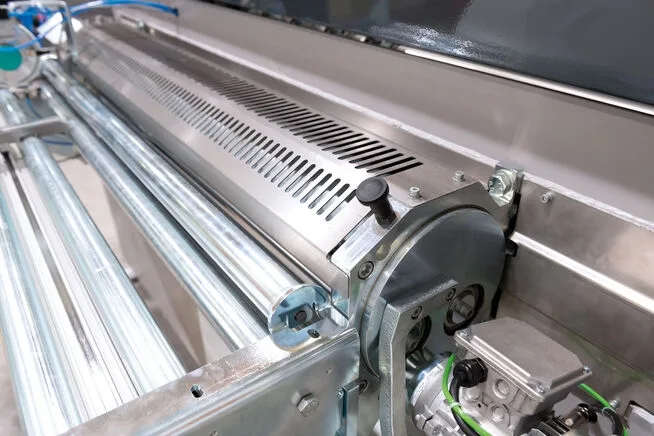

- Automatic straightening roll positioning (progressive)
- Easy to use
- Simple software and hardware
- Intuitive and user friendly operation
- Reliable and efficient
- High quality
- Minimal scrap metal rate through modern technology
- Five slitting rolls automatically adjustable in less than 30 seconds
- Best cut quality through material related depth and gap adjustment
Standard
- Bendex interface supported
- Guillotine shear
- Network connection
Optional
- Roller shear for partial cut
- Film applicator
- Label printer for manual application
- Recoiling interface
- Krasser optimizer software
Sheet metal feeding
- Metal sheets
- coil on coil cart
- coils on driven decoilers
- coils from existing coil system
