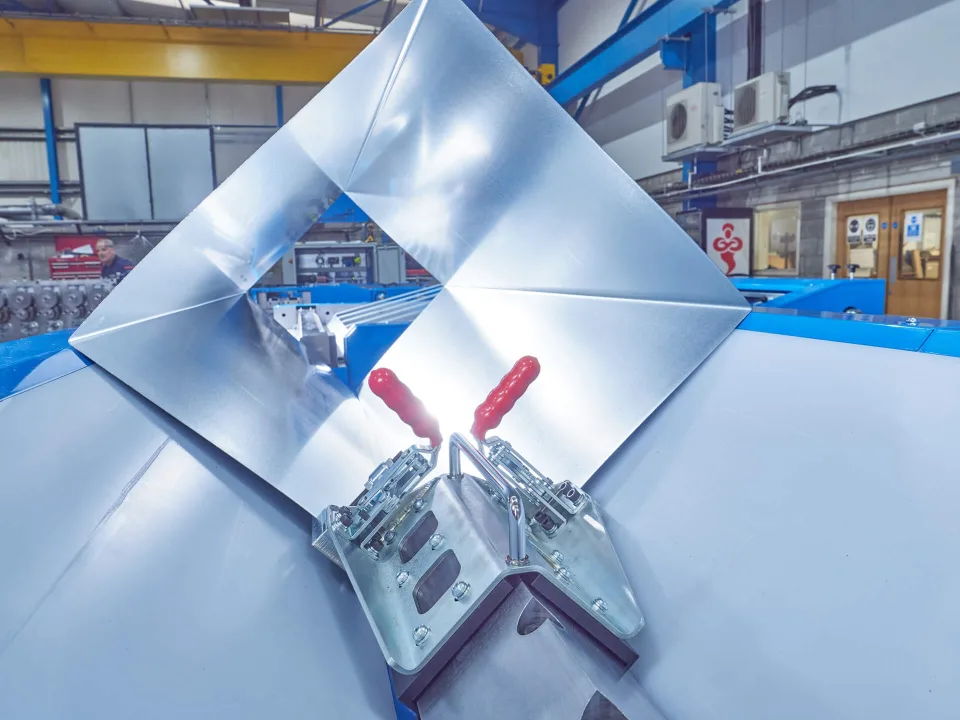

Spiro Firmac Nu-Loc MKV Duct Seam Closing Machine, 45 degree
POA
SHET-0-5250 | Prices exclude GST
Product overview
About this machine.
The Nu-Loc duct seamer is ideal for closing straight ducts ensuring the closed seam is approved for low, medium and high pressure applications.
Compact and time efficient, the Nu-Loc will produce a seam in less than 15 seconds, arguably the fastest seam closer on the market today.

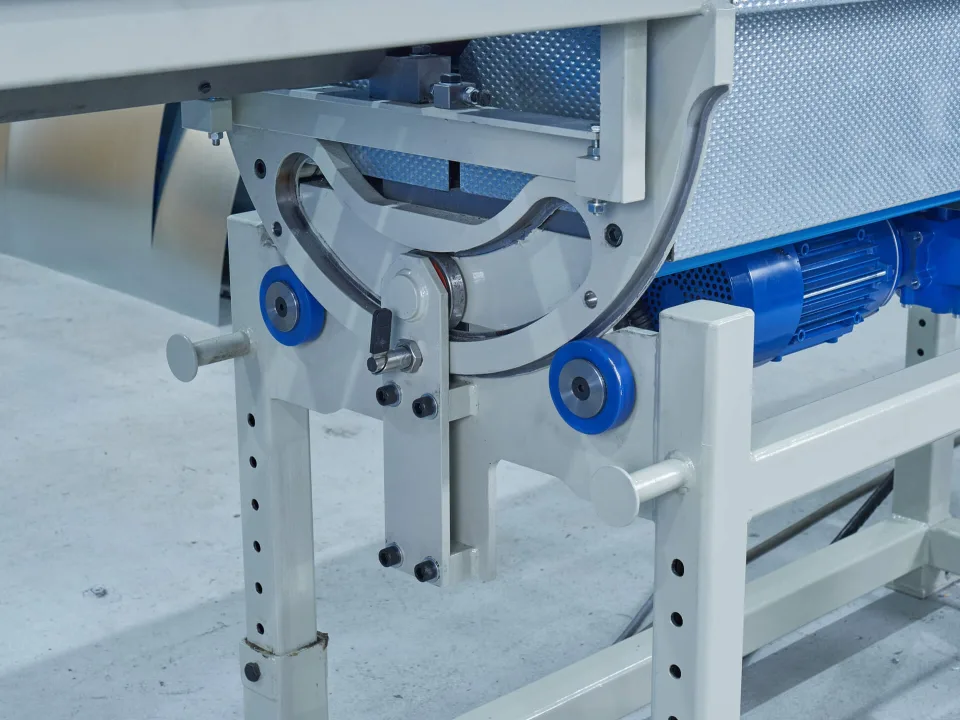

With the 45 degree bed adjustment the Nu-loc bed can be turned on its side at 45 degrees to the standard operating position which allows easier handling of big ducts.
Key features
- One pass silent operation
- Full length duct support
- Eliminates the need of pre roll forming or flanging
- No adjustment required for changing sheet thickness
- 45 degree bed adjustment (left & right)
Optional
- Automatic Mastic applicator Kit
- Fixed angle bed (0 degree)
Diameter range:
- Minimum size duct - 100 x 100mm
- Minimum length - 400mm
- Maximum length - 1500mm (subject to satisfactory support)
Published data

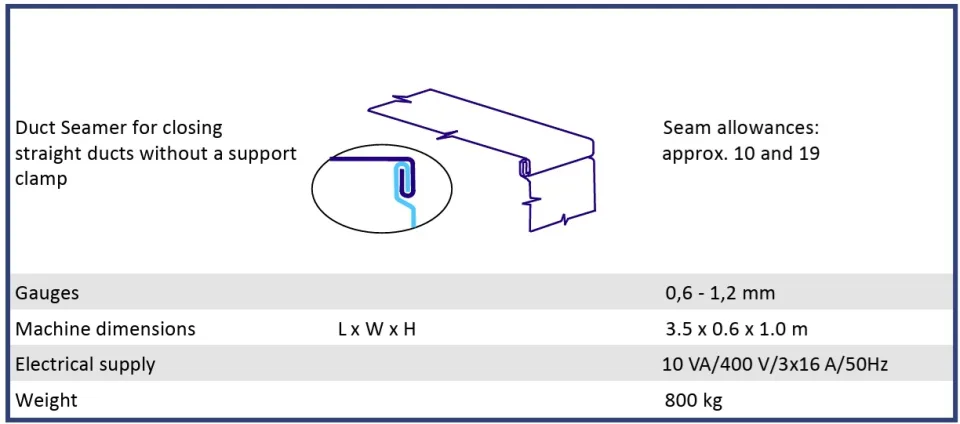

Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
Spiro / Firmac Nu-Loc MKV 45 degree Duct Seamer
Power requirement
10VA - 400V, 16A, 50Hz
Capacity
0.6 - 1.2mm mild steel (400N/mm2)
0.6 - 1.0mm stainless steel
Machine dimensions (L x W x H)
3500mm x 600mm x 1000mm
Shipping dimensions
800kg
