Scott Machinery - Christchurch and Auckland branches
Spiro

Spiro 20 & 30 SPC Rollforming Machine

Spiro Closed Flange

POA
SHET-0-5195 | Prices exclude GST
Spiro 20 & 30 SPC Rollforming Machine Spiro 20 & 30 SPC Rollforming Machine

Product overview

About this machine.

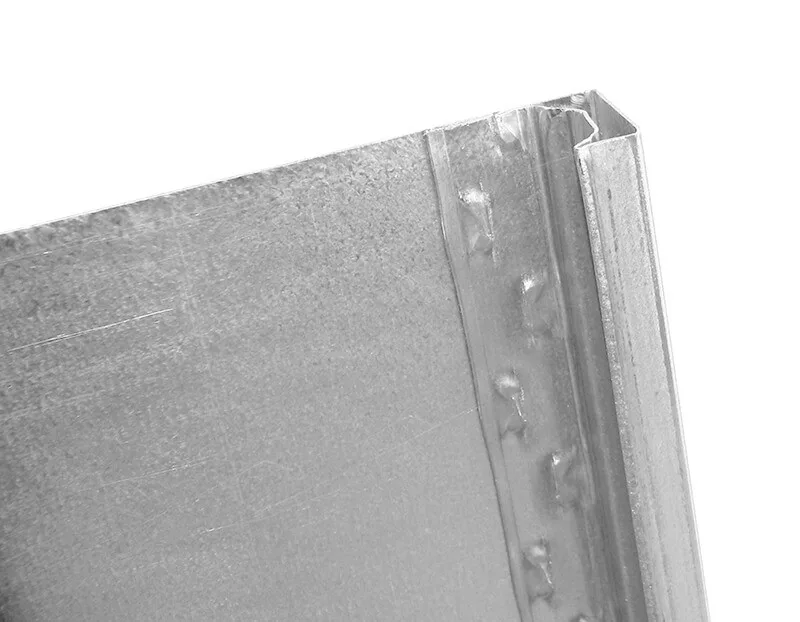

This 19 station Rollforming Machine creates a rigid SPC flange from hand fed blanks using material from the duct wall.

SPIRO® offer the best in the business 2 year warranty.

Main Features:

  • Dual tooling included, 20 and 30mm stitched integral flange profile (SPC) one for each side
  • Main drive with triple heavy duty chains
  • Double stitching stations with off-set
  • A quick release Trolley system to allow extra short pieces
  • Equipped with exit straightening roll to correct any vertical bow

Technical Data:

Material:

  • 20’s flanges 0.5-0.9mm galvanized steel
  • 30’s flanges 0.8-1.2mm galvanized steel
  • Min blank length 230mm
  • Feeding speed up to 18m/min
