Spiro Litelocker
POA
SHET-0-5140 | Prices exclude GST
Product overview
About this machine.

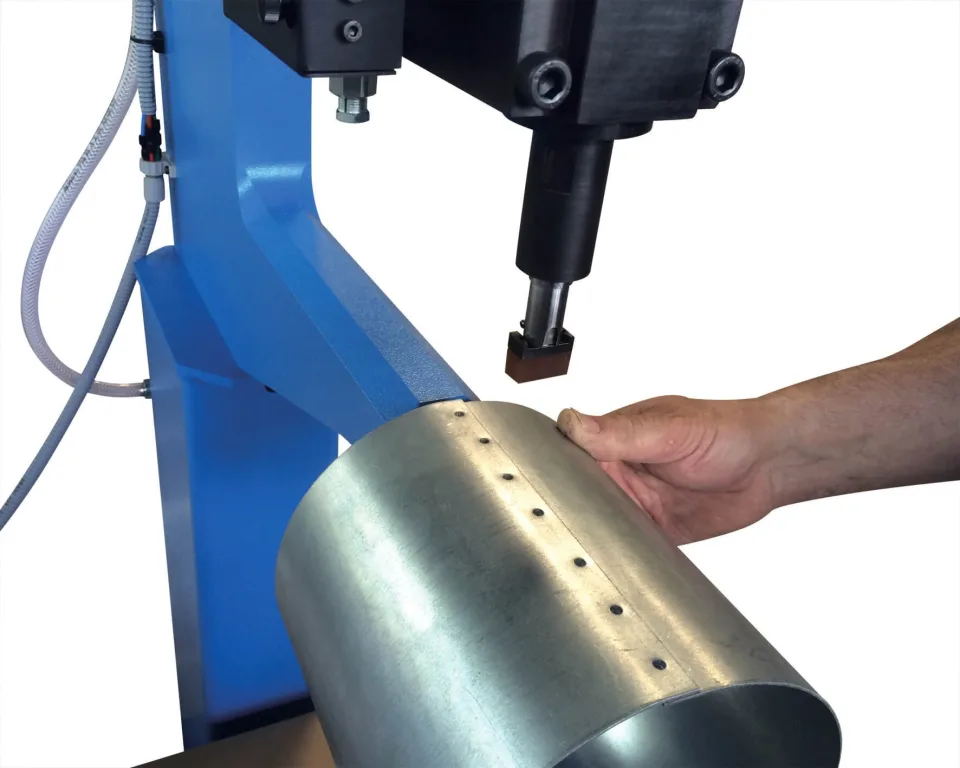

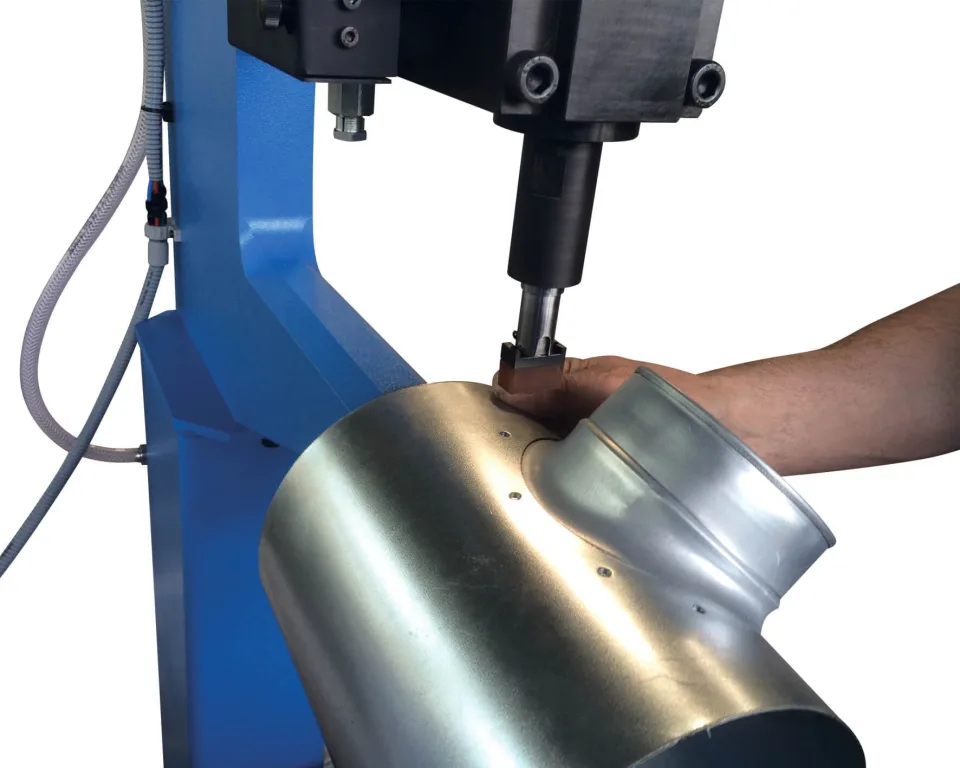

The Spiro® Litelocker is a sturdy and advanced button lock machine. It enables up to 3 plates of sheet metal to be firmly joined together (cold forming) without incurring any damages to the sheet metal surface. The press force is made by using a pneumo-hydraulic system.
SPIRO® offer the best in the business 2 year warranty.
Main Features:
- Eliminate the work of drilling rivet holes
- No damage to galvanized or painted surfaces
- Sturdy and rigid frame design
- Low maintenance requirements and noise level
- Various types of tools, suitable for both rectangular and round HVAC fittings
- Laser point to seam a straight line
Technical Data:
- Length of arm 400mm
- Minimum tube Ø80mm
- Capacity 80 stroke/min
- Pre stroke 52mm
- Press stroke 8mm
- Total stroke 60mm
Material:
- 2 x 1.5mm galvanized steel
- 3 x 1.0mm galvanized steel
- 2 x 0.8mm stainless steel
Flanging speed:
- Max 80m/min, depending on material
Production time:
- 120 sec. (bend Ø 200mm, 90° / 4 segments)
Material:
- 0.4 – 1.25mm mild steel
- 0.4 – 1.25mm galvanized steel
- 0.4 – 0.8mm stainless steel
- 0.6 – 1.25mm aluminium
