Spiro Combi-T Gorelocker
Product overview
About this machine.
GORELOCKER COMBI-T
This is an original lockseam machine manufactured of high quality machine parts. A genuine product from the worlds leading manufacturer of machines for the HVAC-industry.

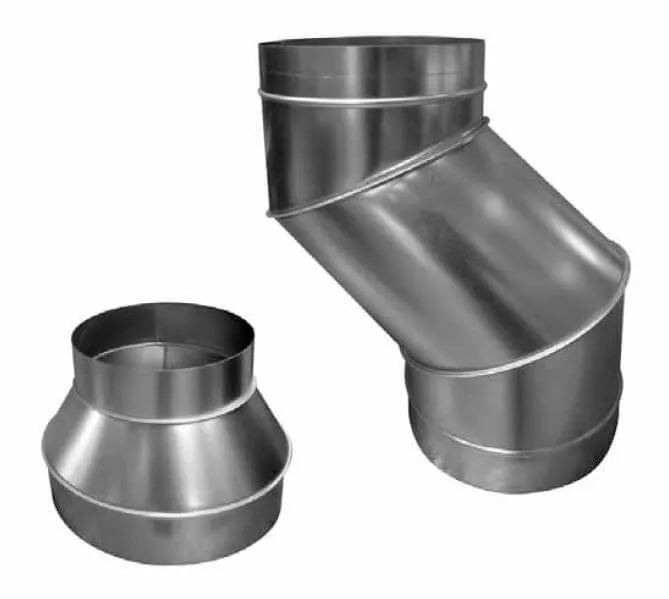

This high production Gorelocker produces standing lockseam elbows and reducers. The high flexibility is achieved by means of 2 separate workstations: a flanging station and seam closing station. Thus the machine is always ready for operation without time-consuming conversion. The standing seam reduces welding to just one longitudinal seam and improves rigidity
SPIRO offer the best in the business 2 year warranty.
Unique Features: Dual working station Maximum flexibility with no equipment change Constant quality / High production speed High capacity with material thickness up to 1.5mm Virtually no maintenance, no lubrication necessary High quality parts and all rotating tools are made of hardened steel High quality seams
Main Features:
- 2 separate workstations: a flanging station and seam closing station.
- Hydraulically powered
- SPIRO original angular seam locking device
- Compact and rigid design
Technical Data:
Diameter range:
- 125 to 1250mm
Max angle per segment:
- 30deg (90deg elbows consists of 4 parts)
Flanging speed:
- Max 120m/min, depending on material
Production time:
- 90 sec. (bend 200mm, 90deg / 4 segments)
Material:
- 0.4 - 1.5mm mild steel
- 0.4 - 1.5mm galvanized steel
- 0.4 - 1.0mm stainless steel
- 0.6 - 1.5mm aluminium
