Baileigh PH-28A Pneumatic Power Hammer
Product overview
About this machine.

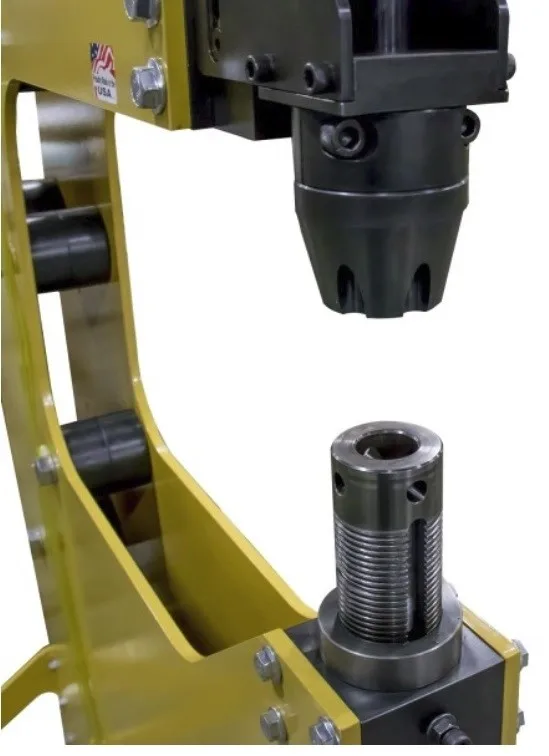

The Baileigh PH‑28A Pneumatic power hammer is a compact yet heavy duty air powered machine designed for metal shaping, shrinking, stretching, and planishing. With a generous 28" (711 mm) throat depth and robust 12.7mm steel frame, it tackles up to 16 gauge mild steel (14 gauge aluminum) with ease. The compact, USA-made PH-28A hits much harder than traditional pneumatic power hammers. You can even use a thumbnail shrinker die (included).
Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.
Made in USA
Features:
- Heavy 1/2" (12.7mm) steel plate frame avoids flex and ensures that the machine's force fully transfers to the material for high-quality results.
- Throat can handle large panels. 711mm throat depth.
- Stretches, shrinks, and planishes up to 16 (1.6mm)gauge mild steel.
- Variable speed from 0 to 1,000 beats per minute.
- Runs on 120 psi compressed air.
- Regulator on the side lets you control the airflow.
- Air-powered system is much quieter than a mechanical machine.
- Foot pedal operation keeps your hands free to move the material.
- Quick-release handle on the front allows you lift the tool up and take the material out.
Included:
- Comes with tooling sets:

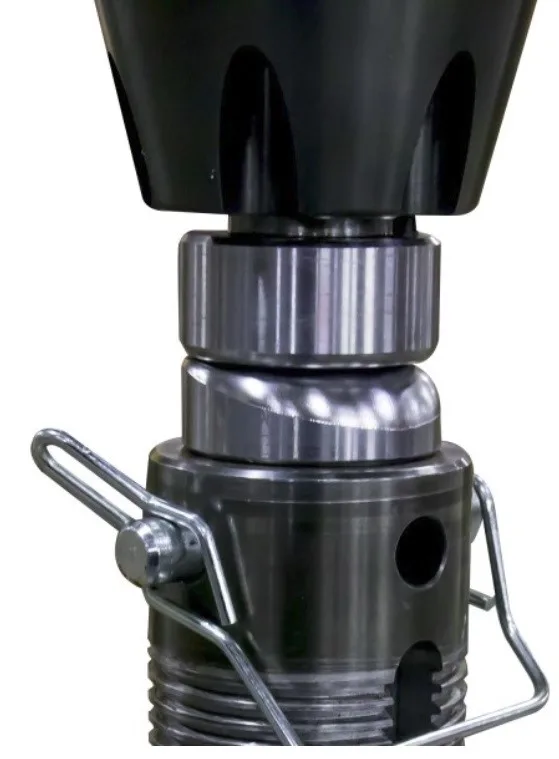

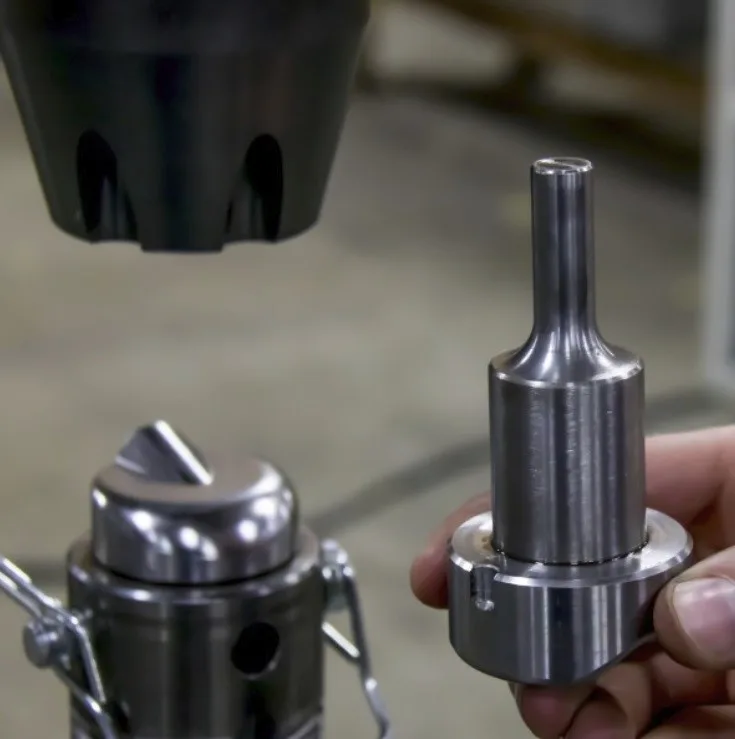

- 2.5" 63.5mm Thumbnail shrinking dies.
- 2.5" 63.5mm Master flat top die.
- 1" 25.4mm linear stretch die.
- 12", 24", and 36" radius dies.

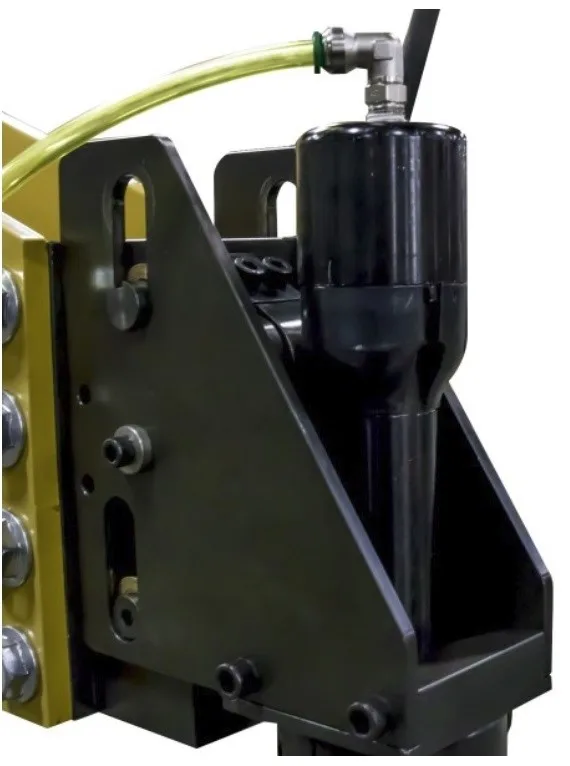

- Oiler system on the side can deliver oil directly to the tool for convenient maintenance.
- Optional:
- You can add an optional planishing hammer attachment to the side to create an all-in-one machine.
- Small footprint is perfect for home shops or production facilities.
