Gemma Group PRISMA 450 Non-ferrous up cutting circular saw
450mm blade
Product overview
About this machine.
Gemma Group is a leading manufacturer of advanced machinery for processing aluminium extrusions. Renowned for their innovation, precision, and engineering excellence, Gemma designs and builds fully automated cutting, machining, handling, and packaging systems tailored to the unique demands of the aluminium extrusion industry. Their solutions are trusted by manufacturers worldwide for increasing productivity, reducing waste, and delivering consistent, high-quality results. With decades of experience and a commitment to continuous improvement, Gemma Group is a go-to partner for efficient, state-of-the-art aluminium extrusion processing.

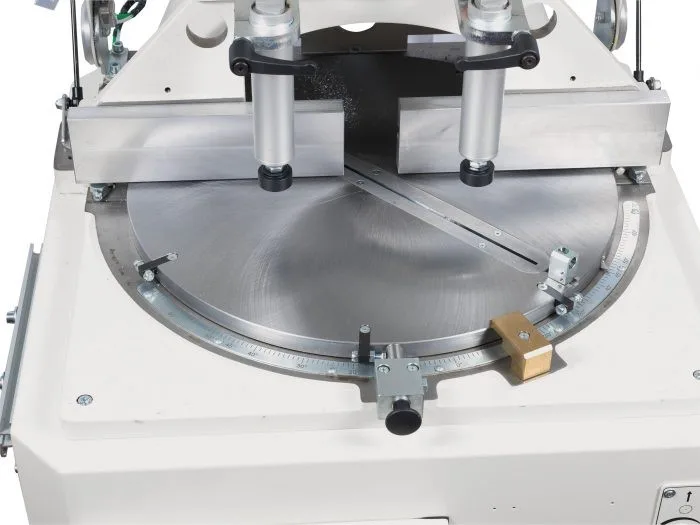

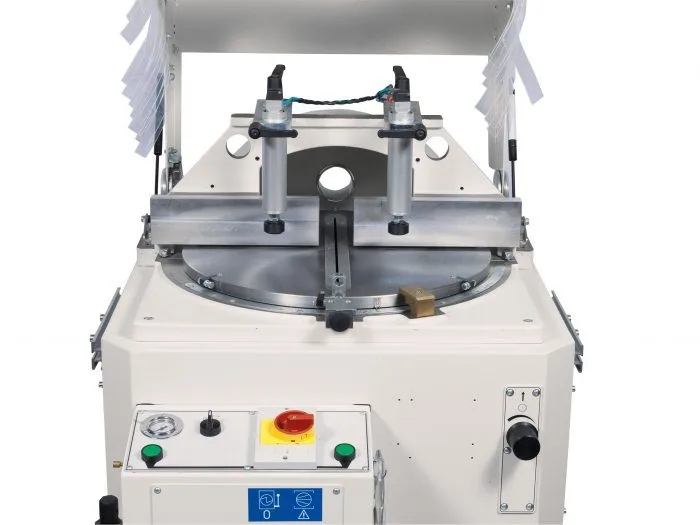

The Gemma PRISMA 450is a high performance up cutting single head saw designed for clean, precise cuts in aluminium and non ferrous profiles. It runs on a 2.2 kW motor fitted with a 450 mm widia blade, giving the power and diameter to tackle large profiles. The solid electro welded steel base and two vertical pneumatic clamps ensure stability and workpiece security. Precision is enhanced with a turning worktable with mechanical stops at 45, 90, and 135 degrees, and full angle capability from 10 to 170 degrees. A Venturi (mist) lubrication system helps maintain blade life and cut quality. The PRISMA meets CE-compliance standards with full guards and protective devices
Features:
- Up cutting (ascending) single head circular saw with a 450 mm widia blade and 2.2 kW motor.
- Electro welded steel base for rigidity and reduced vibration.
- Two vertical pneumatic clamps as standard to hold material securely during cutting.
- Cutting angle range from 10 to 170 degrees, with mechanical stops for quick selection at 45, 90, 135 degrees.
- Nebulised (Venturi) lubrication / spray mist lubrication to extend blade life and improve cut quality.
- Sliding mobile square for trimming work.
Standard Accessories:
- Vertical pneumatic clamping set
- Full protection of the blade
- Pneumatic spray mist lubrication
- TCT Saw Blade D. 450mm
- Air filter
- Air gun
Optional Accessories:
- Spare blades
- Digital display
- Horizontal pneumatic clamping set
- Laser for aligning
Safety Features:
- Fully enclosed CE-compliant safety and protection guards included.
