MEP Cobra 352 NC 5.0 Aluminium Circular Saw

Product overview

About this machine.

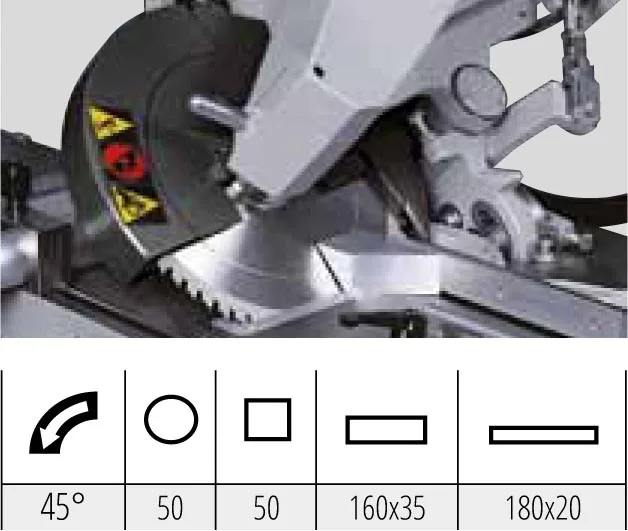

COBRA 352 NC 5.0, automatic/semi-automatic electro-pneumatic CNC sawing machine to cut aluminium and light alloys using blade with electro-welded hard-metal plates (HM). The machine cuts from 45deg right to 45deg left and the head tilts from 0deg to 45deg left so as to make inclined cuts. CNC machine with a new controller : MEP 50 with Windows CE based. This new PLC has been specifically designed by MEP for the automation of its range of products.

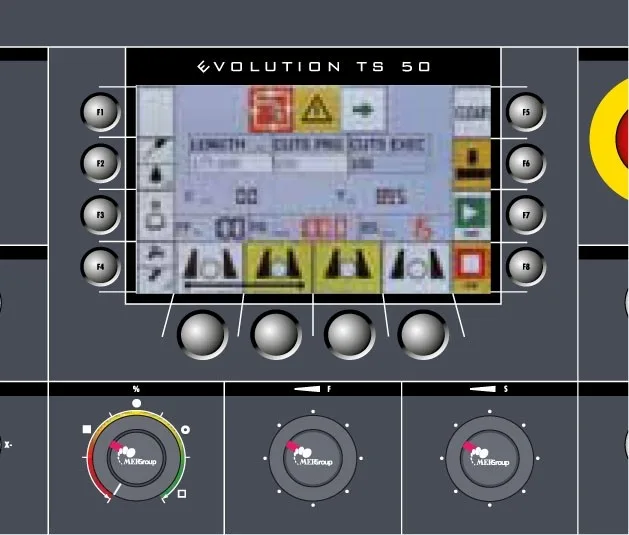

Features Console with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY. 7" touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive, it guarantees a reliable use and it controls all cutting parameters in real time. Registration of alarms and events with the possibility to visualize the story of occurred events. Bar feeder with recirculating balls screw/nut and stepper motor (feed in length in one stroke 600mm, that can be repeated in order to cut any length). Panel with low tension controls: polyester membrane keypad with tactile thermo-shaped buttons which give out an acoustic signal when pressed. Cutting head and feeding vice positioning with joystick Automatic acquisition of the actual starting point of the cut Rotating table mounted on bearing for a smooth and precise rotation. Material is clamped by means of two pneumatic vices which can be freely positioned along the longitudinal axis of the material. Adjustable mechanical stops at 0deg and 45deg left/right to position the head quickly. Chip conveyor predisposed to mount optional chip collector (OPTIONAL). Shearing stress control. Pneumatic vertical vice. Automatic device to lubricate the blade only when the machine is cutting. Indicator with flashing light in case cycle is stopped. The machine is supplied without saw blade. Pre-set to be equipped with the spray mist system (OPTIONAL), as well as with the standard delivered traditional lubrication with emulsible oil. Service keys and instructions manual for maintenance and spare parts list.
