MEP Cobra 352 SX EVO Aluminium Circular Saw

Product overview

About this machine.

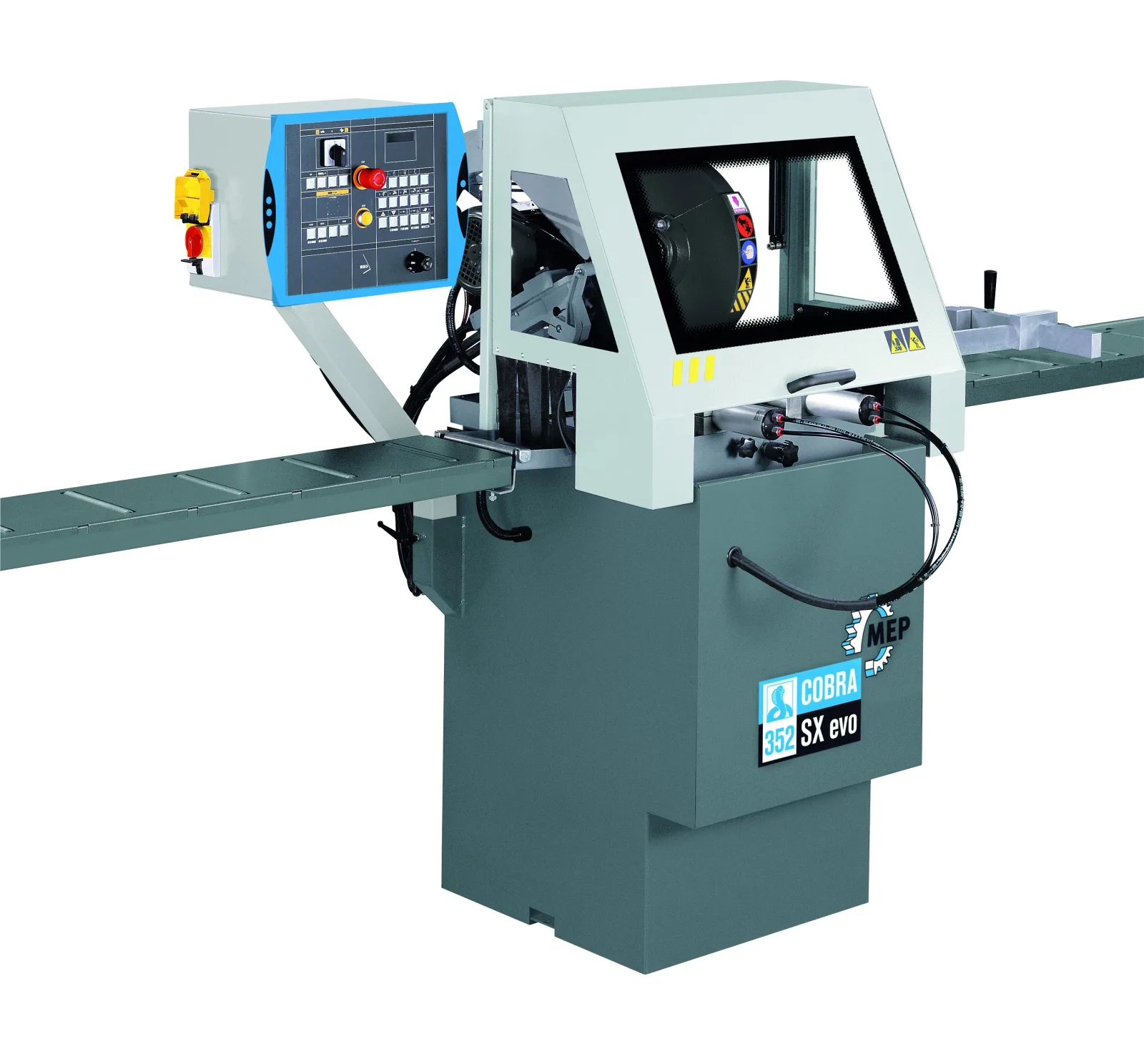

COBRA 352 SX Evo, semi-automatic electro-pneumatic sawing machine to cut aluminium and light alloys using blade with electro-welded hard-metal plates (HM). • The machine cuts from 45° right to 45° left and the head tilts from 0° to 45° left so as to make inclined cuts. • Sawing machine with controlled single axis microprocessor with the latest generation of controllers for semi-automatic sawing machines designed by MEP.

Operation • Starting the cycle by means of the relative push-button the following steps are carried out: - the vice closes and the motor starts – the head goes down to execute cut – motor stops – head returns to top position and vice opens.

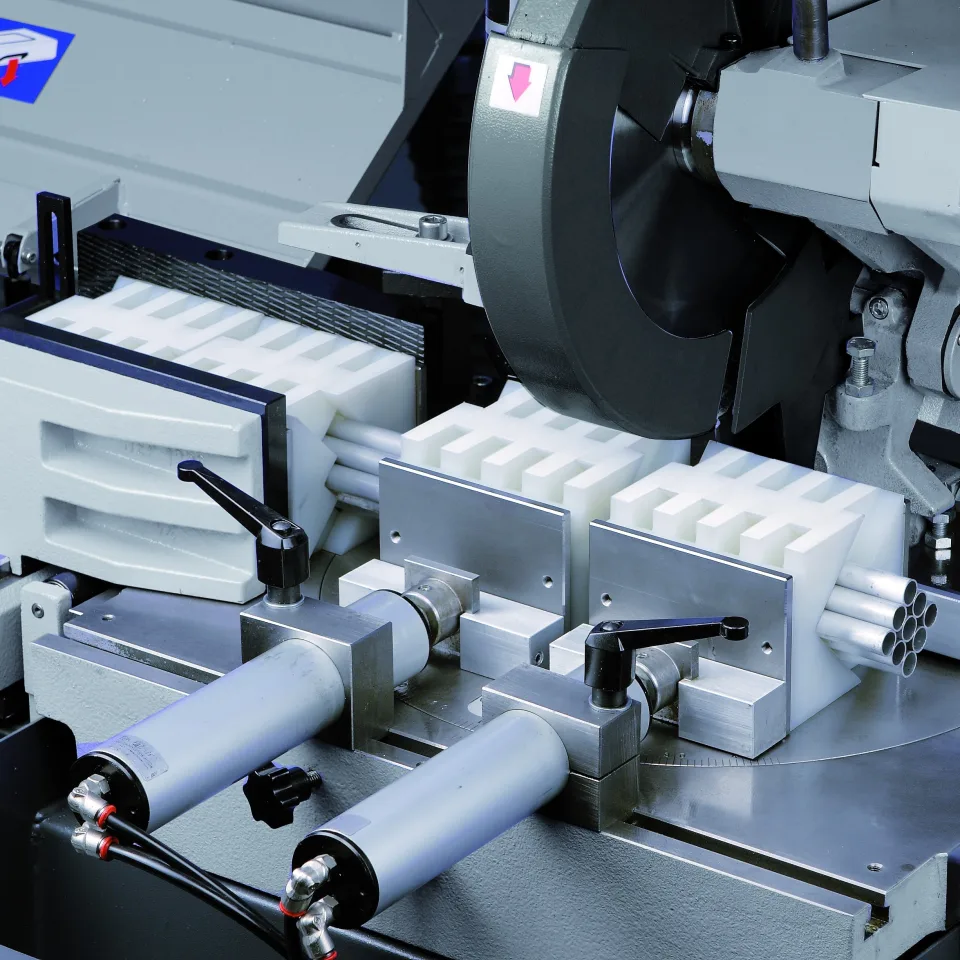

Features • Quality Italian manufactured • Interlocked guarding • 16 characters read on two lines so as to visualize technological parameters such as: + number of cuts carried out + cutting time + amperometer + diagnostics and/or caution messages (more than 100) visualized.onsole with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY. • Registration of alarms and events with the possibility to visualize the story of occurred events. • Panel with low tension controls: polyester membrane keypad with tactile thermo-shaped buttons which give out an acoustic signal when pressed. • Rotating table mounted on bearing for a smooth and precise rotation. • Material is clamped by means of two pneumatic vices which can be freely positioned along the longitudinal axis of the material. • Adjustable mechanical stops at 0° and 45° left/right to position the head quickly. • Chip conveyor predisposed to mount optional chip collector (OPTIONAL). • Shearing stress control. • Pneumatic vertical vice. • Automatic device to lubricate the blade only when the machine is cutting. • Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. • The machine is supplied without saw blade. • Pre-set to be equipped with the spray mist system (OPTIONAL), as well as with the standard delivered traditional lubrication with emulsible oil. • Service keys and instructions manual for maintenance and spare parts list.
