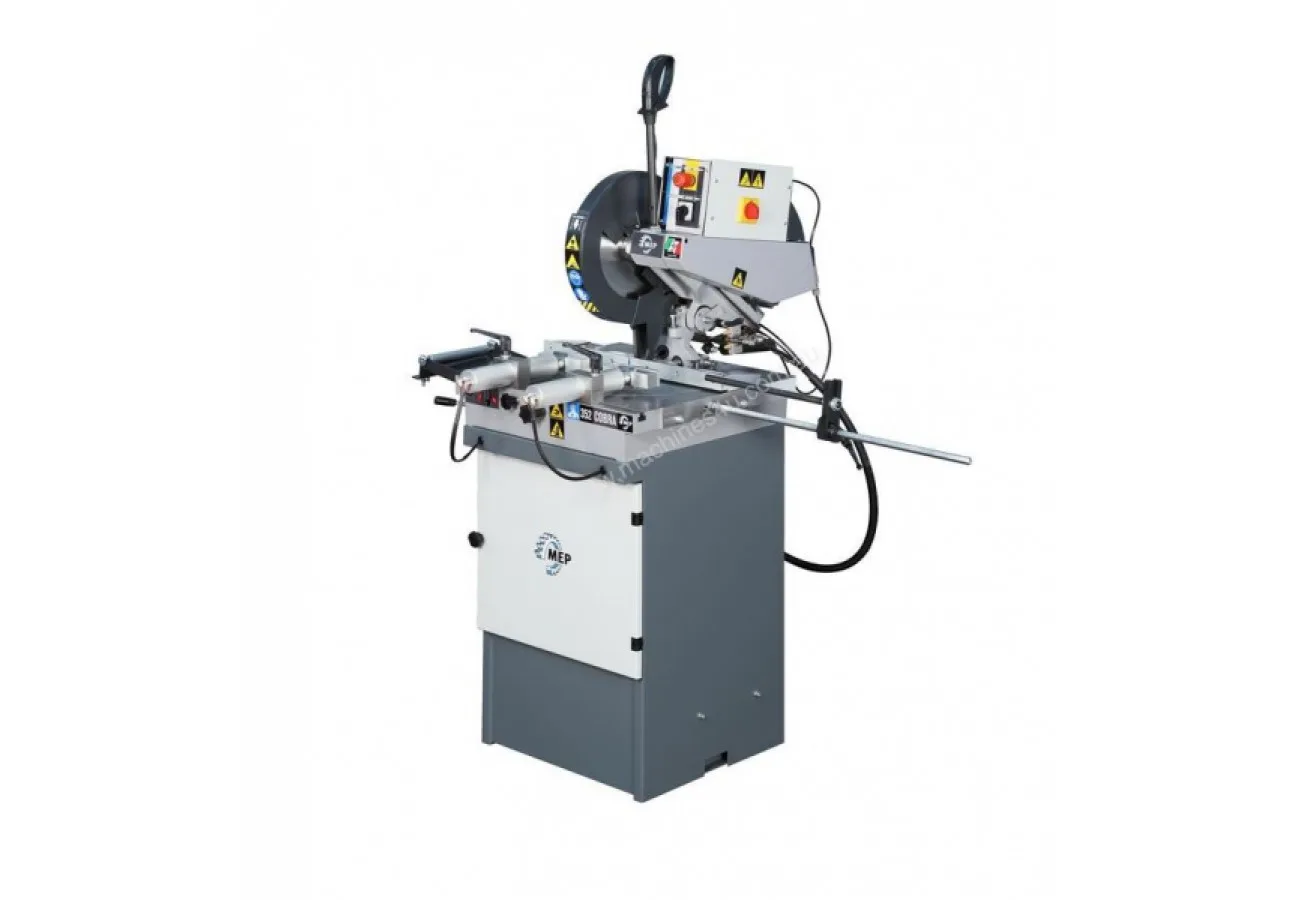

MEP Cobra 352 MA Aluminium Circular Saw

Product overview

About this machine.

COBRA 352 MA, manual sawing machine to cut aluminium and light alloys using blade with electrowelded hard-metal plates. The machine cuts from 45º right to 45º left with the head which can be tilted from 0º to 45º left. On the model 352 MA (pneumatic vice), which is supplied complete with steel base, the vices close automatically when lowering the head.

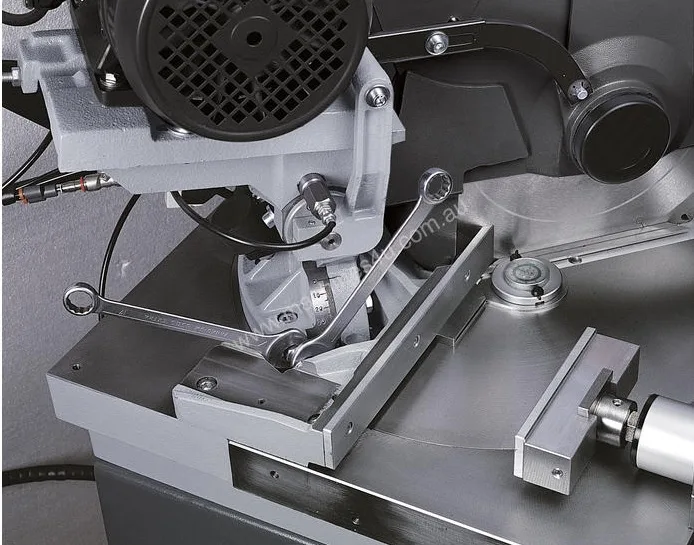

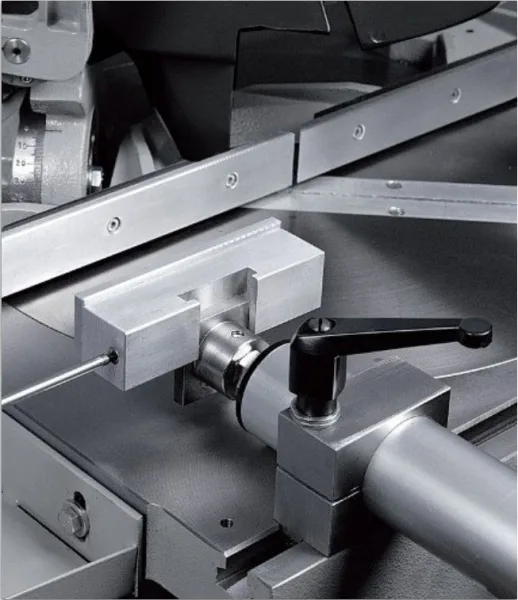

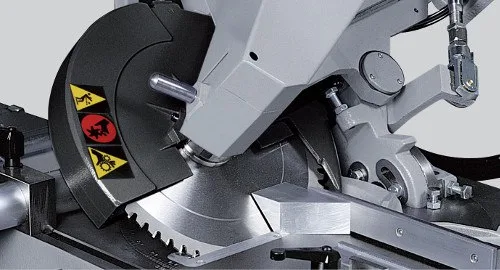

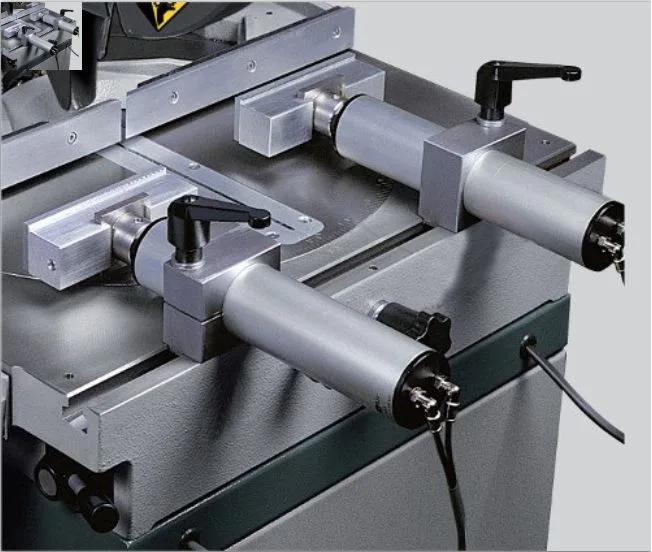

Features : Electric panel (wiring totally identifiable, main lockable disconnect switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device 24v. Rotating table mounted on bearing for a smooth and precise rotation. Adjustable mechanical stops at 0deg and 45deg left/right to position the head quickly. Screw locking system to lock the head at any degree. Steel base (for 352 MA only). Chip conveyor is predisposed to mount a chip collector. Automatic device to lubricate blade. Electrical switch for high/low blade speed. Material is clamped by means of two vices which can be freely positioned along the longitudinal axis of the material. Movable aluminium jaws which can be adjusted vertically. Head locking system. Stock support arm with roller predisposed to mount loading table. Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. The machine is supplied with a Widia 350x32x3.4 positive rake, silenced and balanced blade Vertical pneumatic clamp
