Hydmech V-25APC Automatic Vertical Mitering Band Saw
POA
SAWB-0-8950 | Prices exclude GST
Product overview
About this machine.
Quality Canadian Manufacturing
Key features
- 6 degree canted head allows for efficient cutting and improved blade life
- 1500 mm bar feed, left side
- Shuttle features automatic multi-indexing up to 1500 mm (3000 mm optional) in a single stroke with automatic kerf compensation.
- Powered by a rack and pinion servo drive.

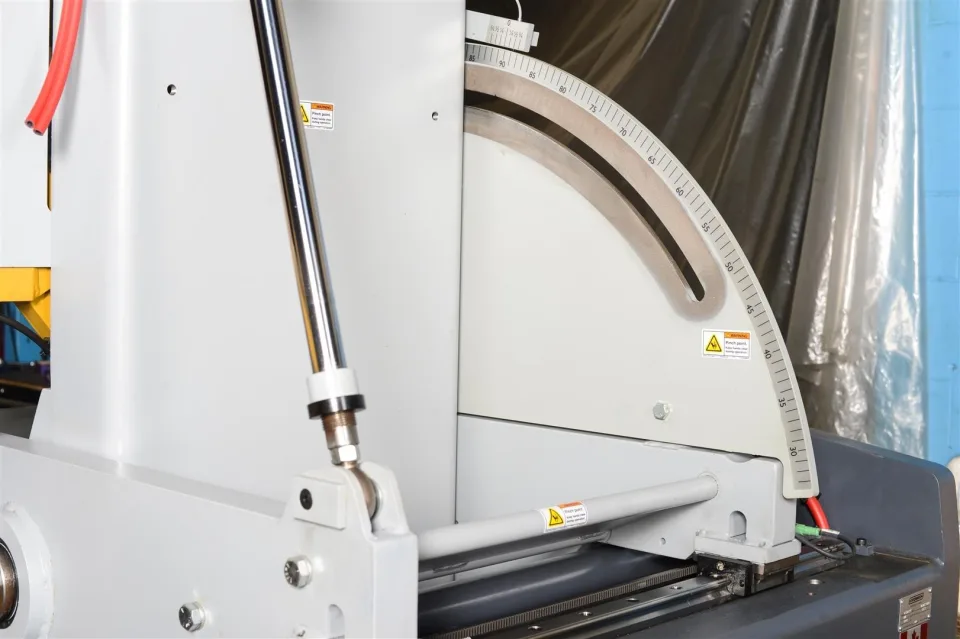

- Automatic programmable mitering with "go to" angle functionality from 60deg left to 60deg right
- Hydraulic head tilt
- Cast iron band wheels
- Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
- Two full stroking hydraulic vises

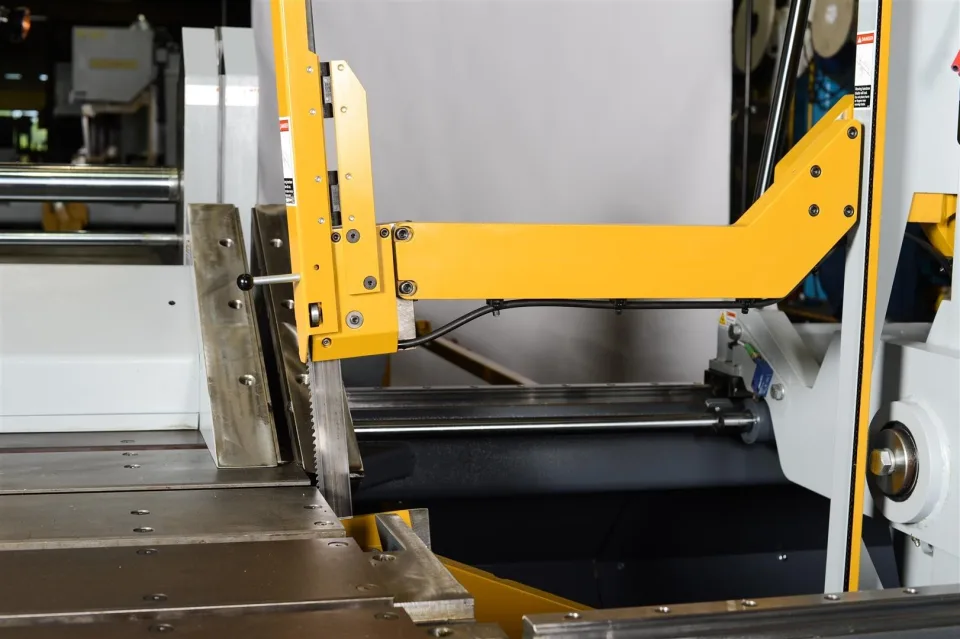

- Hydraulically powered, programmable guide arm attached to saw column.
- 7.5 kW VFD. True direct blade drive – no belts/pulleys
- Blade chamber separates material from cut part
- Hydraulic chip conveyor
- Replaceable blade brush
- Robust steel base
- Out of stock switch
- Blade breakage switch
- Easy access electrical panel and hydraulics
- Pop-up feed roller, opposite bar feed
Hydraulic band tensioning with digital readout
- Replaceable carbide guide inserts
- 3 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
Optional Machine Features:
- Chip bucket with pump
- Hydraulic overhead bundling
- Mist lubrication
- Variable vise pressure
- Tall square vise inserts
- Out feed vise
- Right side infeed shuttle
- Bridge/interface bracket
- Powered bridge/interface bracket
- Idler conveyors
- Powered conveyors
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | V-25APC | ||
|---|---|---|---|
| Capacity | Rectantular (H x W) | Square | Round |
| 90 degrees | 762 x 635 mm | 635 x 635 mm | 635mm |
| L/R 45 degrees | 533 x 635mm | 533 x 533mm | 533mm |
| R 60 degrees | 368 x 635mm | 368 x 368mm | 368mm |
| L 60 degrees | 342 x 635mm | 342 x 342mm | 342mm |
| Blade size | 6414 x 41mm | ||
| Blade drive | 7.5 kW VFD | ||
| Blade speed | 22 - 106 m/min | ||
| Machine weight | 6818 kg | ||
| Table height | 1117mm | ||
| Dimensions (W x L x H) | 4013x6451x3124 |
