Hydmech V-18APC-60CE Automatic Vertical Mitre Band Saw
POA
SAWB-0-8898 | Prices exclude GST
Product overview
About this machine.
Quality Canadian Manufacturing
Key features
- 3 degree canted head allows for efficient cutting and improved blade life
- 1500 mm bar feed, left side
- Shuttle features automatic multi-indexing up to 1016mm in a single stroke with automatic kerf compensation.
- Powered by a rack and pinion servo drive.
- Automatic programmable mitering with "go to" angle functionality from 60deg left to 60deg right
- Hydraulic head tilt
- Cast iron band wheels

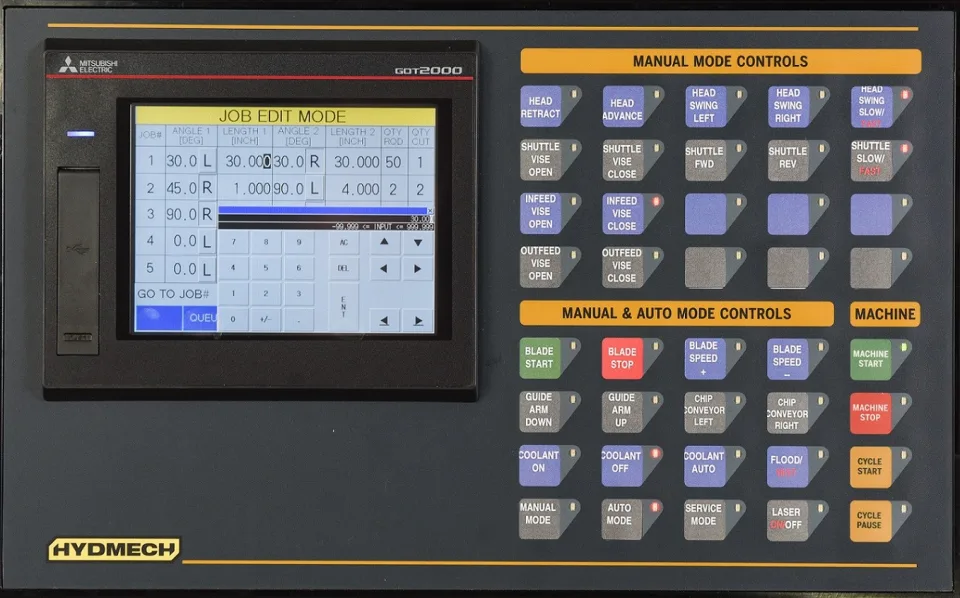

- Automatic PLC, touch screen control programmable up to 1000 jobs with 5 in queue.
- Two full stroking hydraulic vises
- Hydraulically powered, programmable guide arm attached to saw column.
- 5.5 kW VFD. True direct blade drive - no belts/pulleys
- Blade chamber separates material from cut part
- Hydraulic chip conveyor
- Replaceable blade brush
- Robust steel base
- Out of stock switch
- Blade breakage switch
- Easy access electrical panel and hydraulics
- Non-driven pop-up feed roller - Right hand side
- Left side infeed (Right side optional)
- Mist lubrication

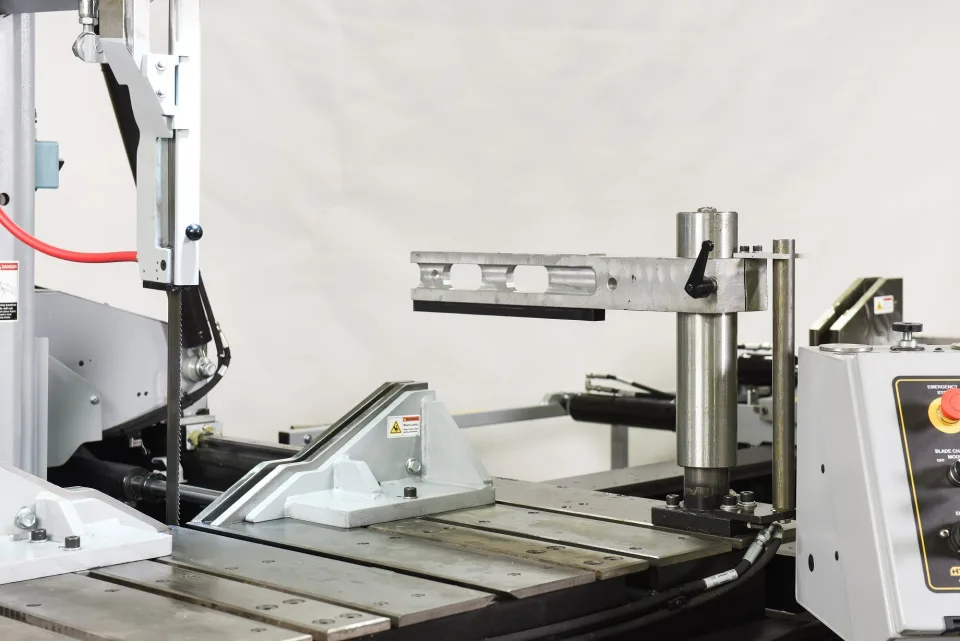

- Hydraulic overhead bundling
- Variable vise pressure
- CE compliant
Hydraulic band tensioning with digital readout
- Replaceable carbide guide inserts
- 3 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
Optional Machine Features:
- Chip bucket
- Tall square vise inserts
- Right side infeed shuttle
- Idler conveyors
- Powered conveyors
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | V-18APC-60 CE | |
|---|---|---|
| Capacity | Rectangular (W x H) | Round |
| 90 deg | 457 x 558mm | 457mm |
| 45 deg | 457 x 374mm | 330mm |
| 30 deg | 457 x 228mm | 228mm |
| 90 deg with O/H bundling | 457 x 305mm | 305mm |
| 45 deg with O/H bundling | 457 x 305mm | 305mm |
| 30 deg with O/H bundling | 457 x 152mm | 152mm |
| Blade size | 32 x 5156mm | |
| Blade drive | 5.5kW VFD | |
| Blade speed | 19-117m/min | |
| Table height | 1117mm | |
| Machine size (w x l x h) | 3048 x 4775 x 2845mm | |
| Machine weight | 4082kg |
