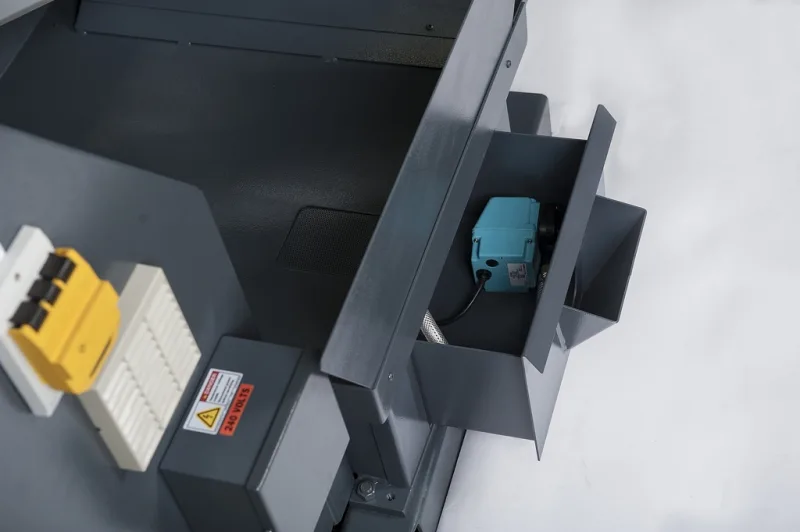

Hydmech S-23P Semi-Automatic Pivot Style Band Saw
POA
SAWB-0-8843 | Prices exclude GST
Product overview
About this machine.
The S-23P is semi automatic scissor style band saw providing exceptional miter cutting capability for medium duty applications.
Featuring an LED readout for blade tension, blade speed, run time of the cut, blade drive motor amperage draw, piece count
The S-23P mitres from 90deg to 30deg. Featuring a 406mm H x 508mm W capacity at 90deg, 8.8 hp motor, and 34mm blade, the S-23P band saw is built solidly to give you maximum productivity.
Standard features:
- Semi-automatic PLC control
- Easy swing, heavy duty cast iron saw head
- Full capacity, full stroking hydraulic vise

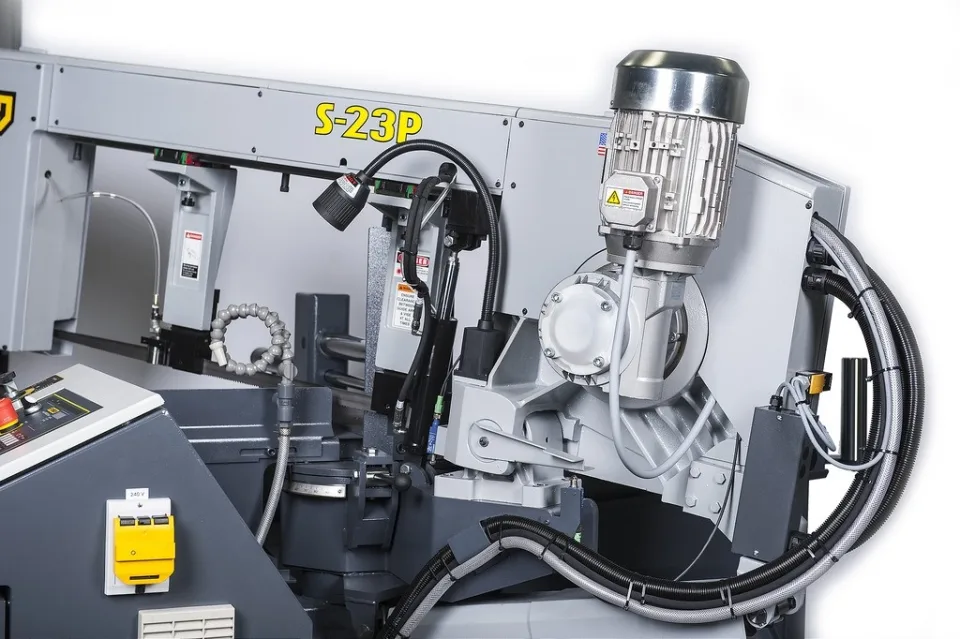

- 6.6 kW VFD True direct blade drive – no belts/pulleys
- On-demand hydraulics save energy
- 508 mm out feed table
- Blade breakage switch
- Cast iron band wheels
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale with angle locking mechanism
Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
- Easy access electrical panel
- Hydraulic positive down feed
- Mechanical band tensioning with digital readout
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
Included options:
- Minimum Quantity Lubrication (MQL)
- Full capacity hydraulic overhead bundling
- Work stop
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | S-23P | ||
|---|---|---|---|
| Capacity | Straight | 45deg | 30deg |
| Round | 406mm | 355mm | 241mm |
| Rectangular (H x W) | 406 x 508mm | 406 x 355mm | 406 x 241mm |
| Table height | 838mm | ||
| Blade size | 5130 x 34 x 1mm | ||
| Blade speed range | 22 - 106 m/min | ||
| Main motor drive | 8.8hp | ||
| Machine weight | 1318kg | ||
| Floor space | 2438 x 1422 x 1422mm | ||
| Shipping | 9.25m3, 1318kg |
