Hydmech H-14A Automatic Dual Post Horizontal Band Saw

POA
SAWB-0-8810 | Prices exclude GST
Hydmech H-14A Automatic Dual Post Horizontal Band Saw Hydmech H-14A Automatic Dual Post Horizontal Band Saw Hydmech H-14A Automatic Dual Post Horizontal Band Saw Hydmech H-14A Automatic Dual Post Horizontal Band Saw Hydmech H-14A Automatic Dual Post Horizontal Band Saw

Product overview

About this machine.

Fully automatic NC feed band saw Horizontal 355 x 355mm capacity

Key features

  • Heavy duty cast iron saw head
  • Split front vise
  • Cast iron shuttle features automatic multi-indexing up to 600 mm in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
  • On-demand hydraulics save energy

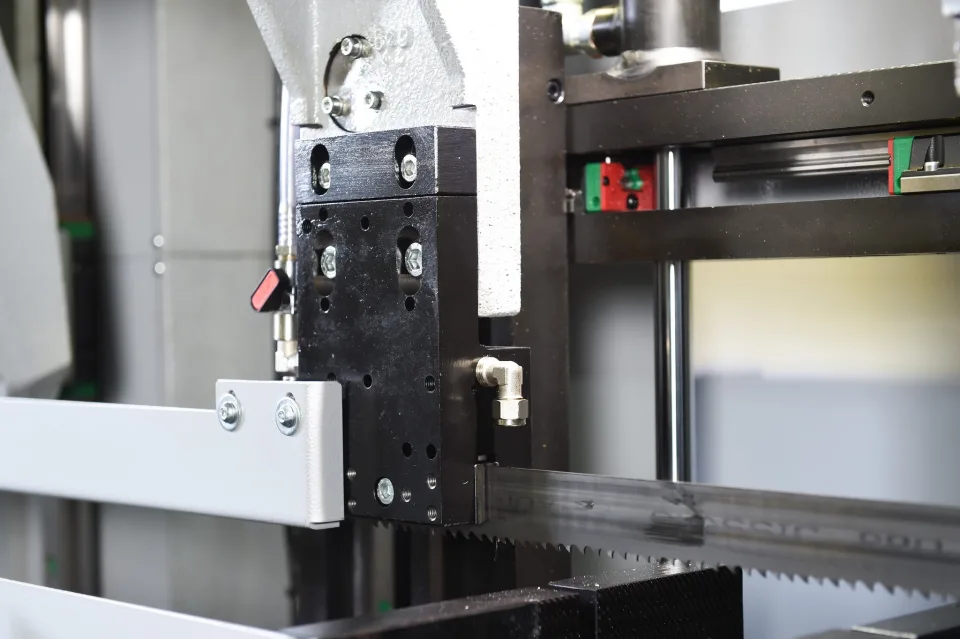

  • Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
  • 6.6 kW VFD. True direct blade drive – no belts/pulleys
  • Full capacity, full stroking hydraulic vises
  • Hydraulic positive down feed
  • Blade chamber separates material from cut part
  • Cast iron band wheels

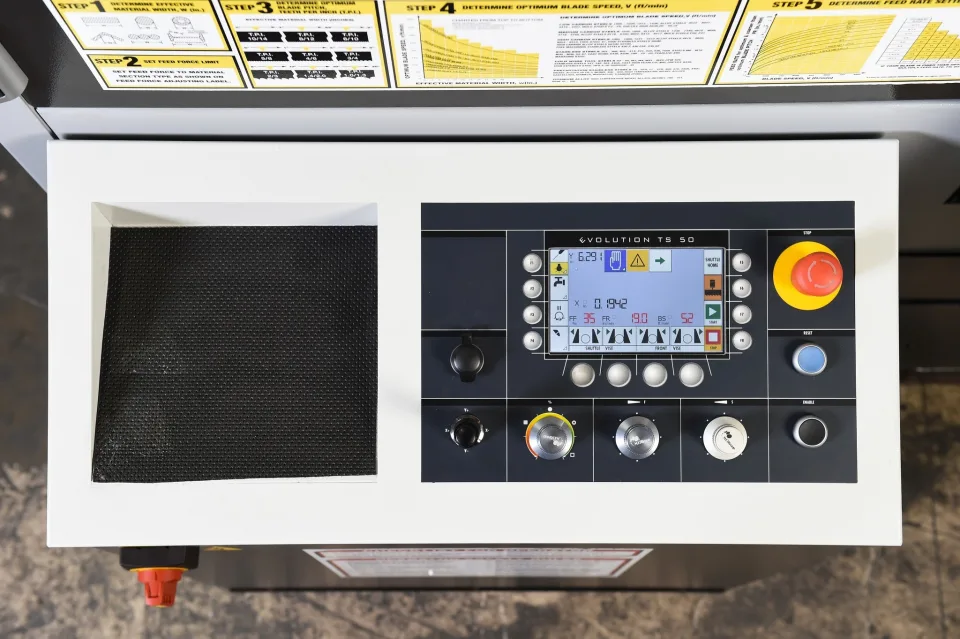

  • Swing away automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
  • Replaceable blade brush
  • Robust steel base
  • Automatic chip removal conveyor
  • Blade breakage switch
  • Blade deviation monitor

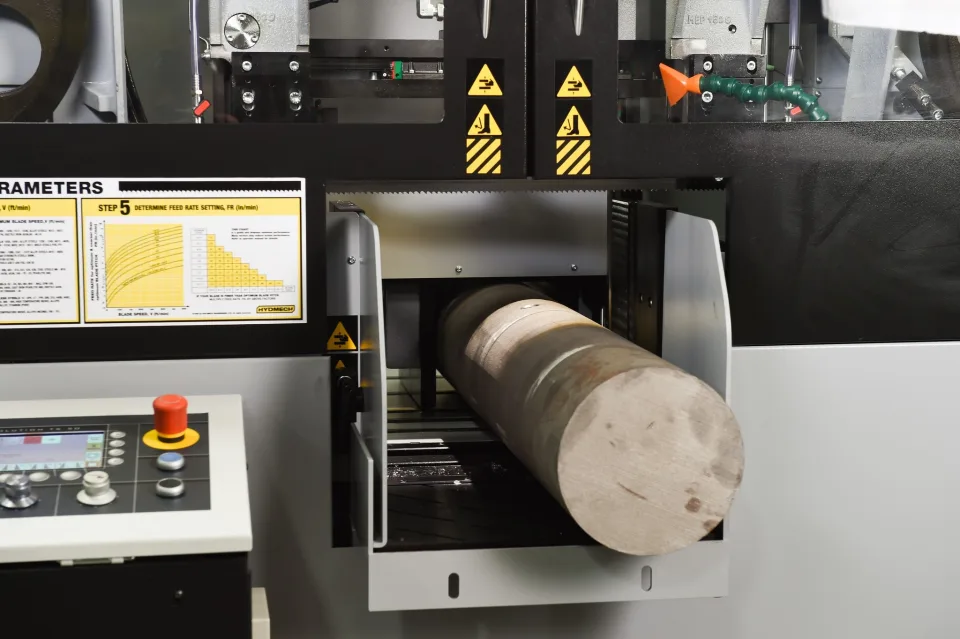

Designed for safety with saw-in-a-box style

  • Out of stock switch
  • Electronic band tensioning with digital readout
  • Replaceable carbide guide inserts
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light
  • Work light

Key features

  • Full capacity hydraulic overhead bundling*
  • Variable vise pressure
  • High blade speed
  • Mist lubrication
  • Power transformers
  • Vertical rollers
  • Short remnant of 25 mm**
  • Idler conveyors
  • Powered conveyors

*overhead bundling increases remnant length to 280 mm and reduces shuttle stroke to 546 mm

**cannot use option with overhead bundling

NB: Video shows older design

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Rectangle (H x W) capacity 355 x 355mm
Round capacity 355mm
Square capacity 355mm
Blade size 4640 x 34mm
Blade drive 6.6 kW VFD
Blade speed range 15 – 110 m/min (200m/min optional)
Machine weight 2,805kg
Table height 863mm
Floor size (W x Lx H) 2235 x 1600 x 1981 mm
Remnant length 127mm (280 mm w/OHB)
