MEP Shark 512 SXI evo Semi Automatic Bandsaw

Product overview

About this machine.

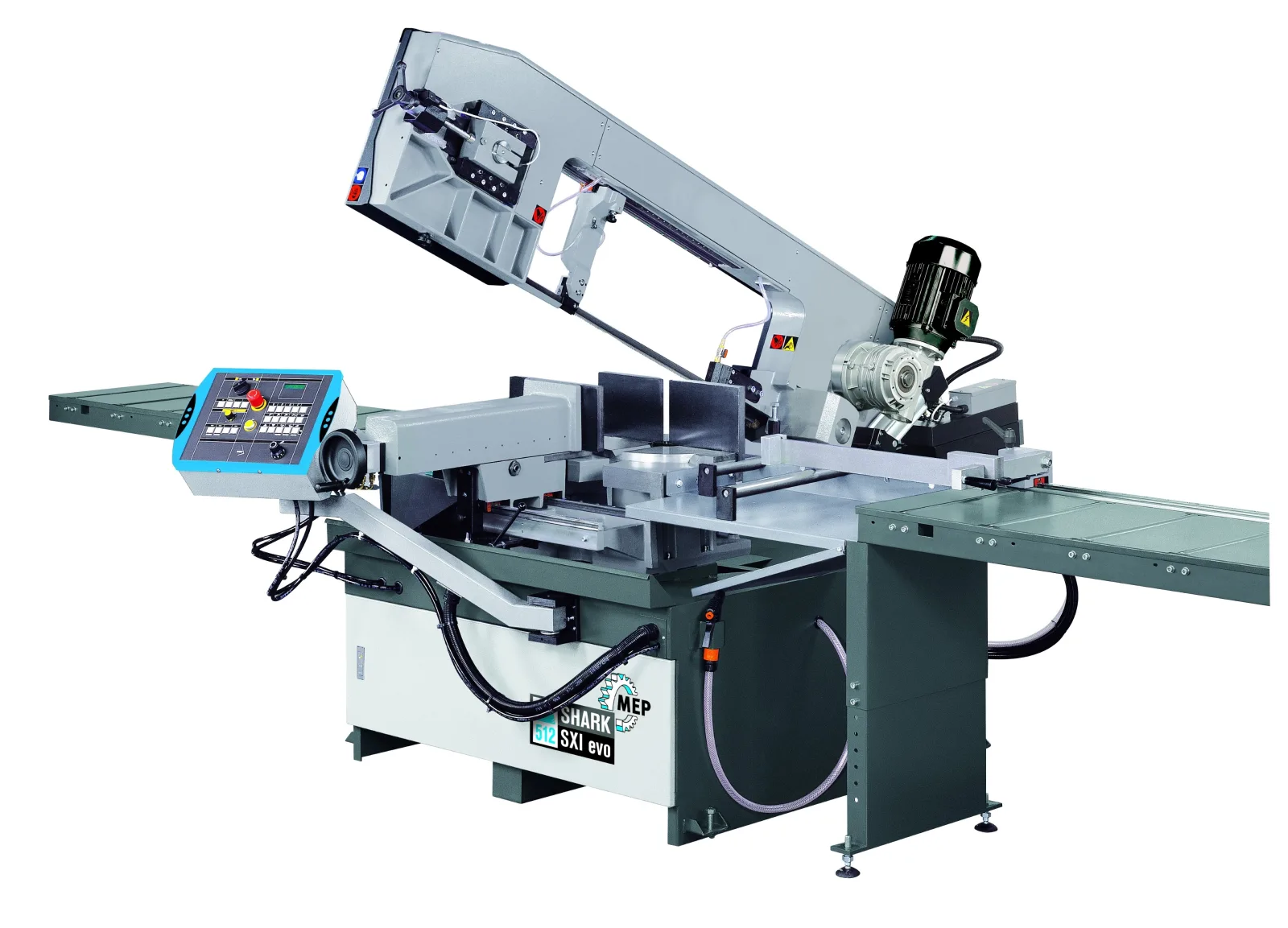

Shark 512 SXI evo, semi-automatic electro-hydraulic band sawing machine, for cutting from 60deg right to 60deg left. Machine with controlled single axis microprocessor with the latest generation of controllers for semi-automatic sawing machines designed by MEP. Semi-automatic cycle: Starting the cycle: – the vice closes and the motor starts, the head goes down to execute cut, the motor stops, & the head returns to top position and vice opens. Semi-automatic dynamic cycle: lowering the head manually, so as to position it just above the material, the semi-automatic cycle starts by pressing trigger switch on handle.

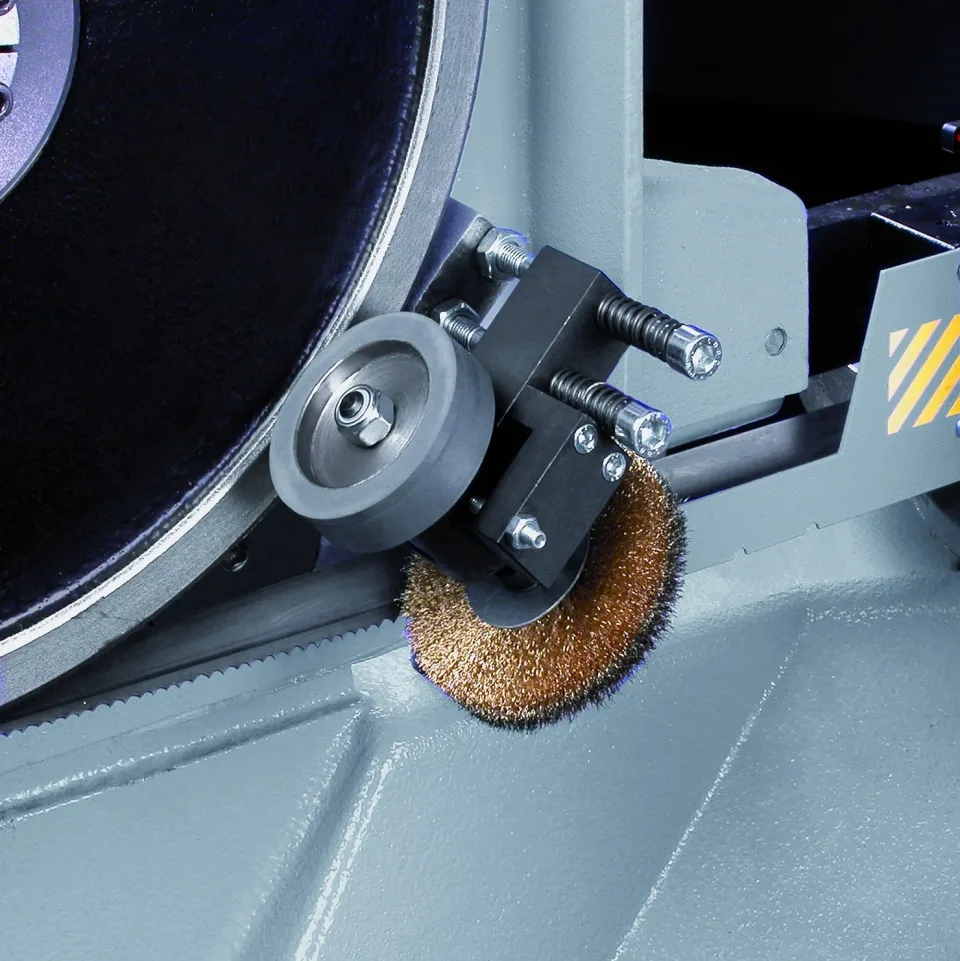

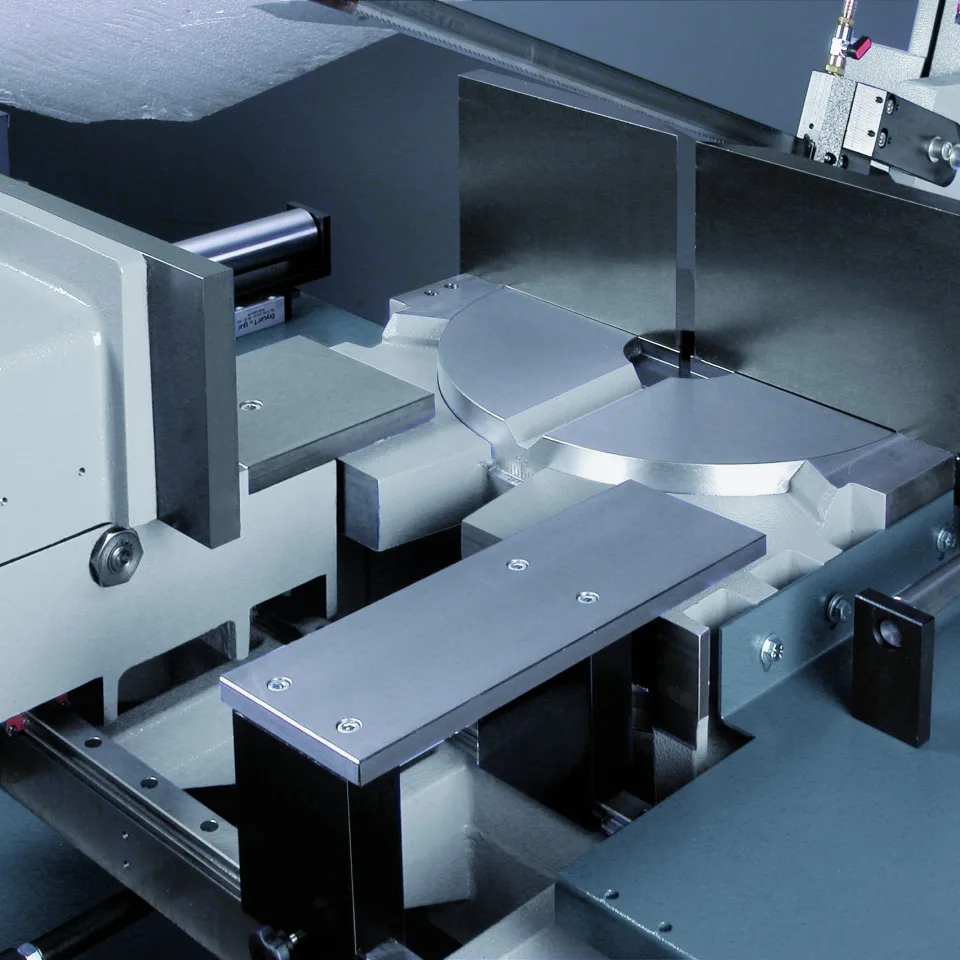

Features Console with all centralized controls, installed on an articulated arm. Low voltage soft keyboard, in polyester, with thermo-shaped buttons, with tactile feeling and sound signal when operating. Display for the following messages: Diagnostic Alarms (cause description). Input and output status. Cut counting. Time spent for the cut made. Blade motor absorption. Blade tension. Blade speed. Numeric displaying of the head position. Control handle of the manual cycle at 24 V, IP55. Program with several special cutting cycles. Latest generation hydraulic control unit, with high efficiency and low energy consumption. Wide working surface with rotating table installed on a roller bearing, dia. 280 mm, pre-loaded with thrust bearing. Blade rotation speed via. variable speed electronic inverter for the continuous adjustment of the band speed (from 15 to 100 m/min). The limits of the head stroke are programmed through the control board, depending on the dimensions of the bars to be cut. Manually-operated blade tensioning through electronic transducer, with tension display. Electric coolant pump for band lubrication and cooling. Wire chip brush for band cleaning. Machine arranged for handling with movement equipment. Coolant pistol for cleaning
